Universal 50W High Lumen 7250lm Outdoor LED Security Lights with Optic 120deg Beam Angle Super Bright Outdoor Flood Light Exterior Light for Billboard Car Park

Outdoor Pure Aluminum housing dimmable driver 1-10V water-proof IP65
50 Watt LED Flood Light  220-240V 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 7250 lumen IK08
Working site or area lighting with Cree LUMILEDs OSRAM SMD3030 or SMD5050 LEDs chip for LED street Light & working site
Copper free Pure Aluminum forming extruded heat-sink housing perfect thermal management for a long lifespan LED spotlight 50W for outdoor Security lighting with 5-7 years warranty

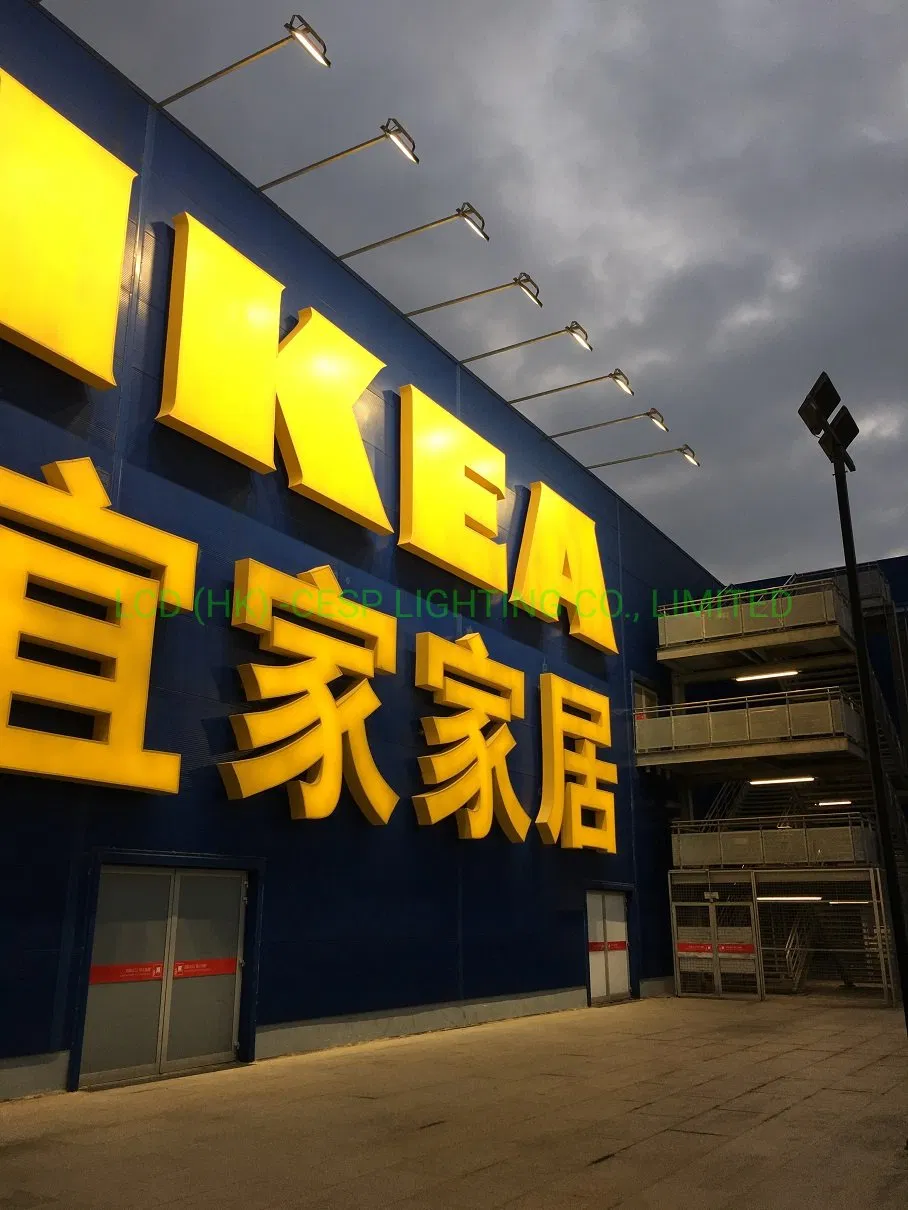

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Feature

1. A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
2. Low lifetime-cost Reduce power consumption and free maintenance
3. Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.

Product Specification review

A simple, durable, reliable and great thermal management and efficient LED floodlight

Application review

- Low area & job site lighting
- Building surrounds

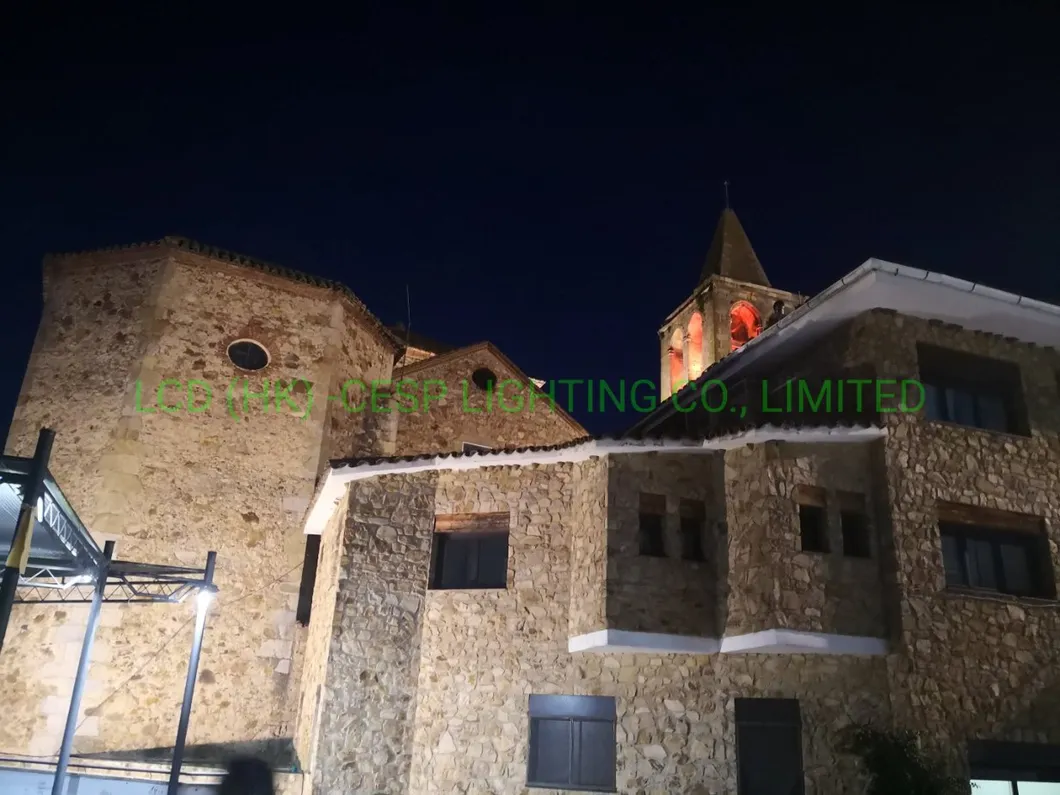

- Façade lighting

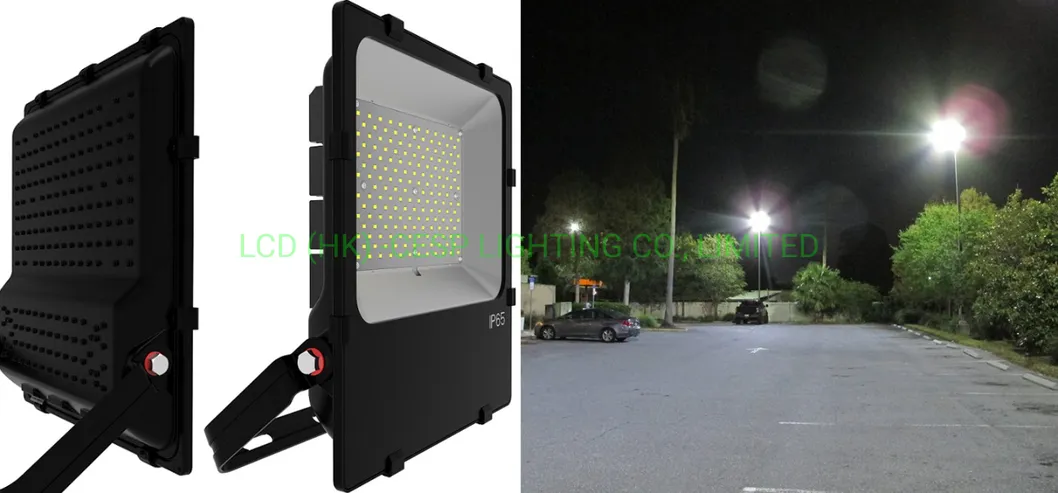

- Car parking lighting

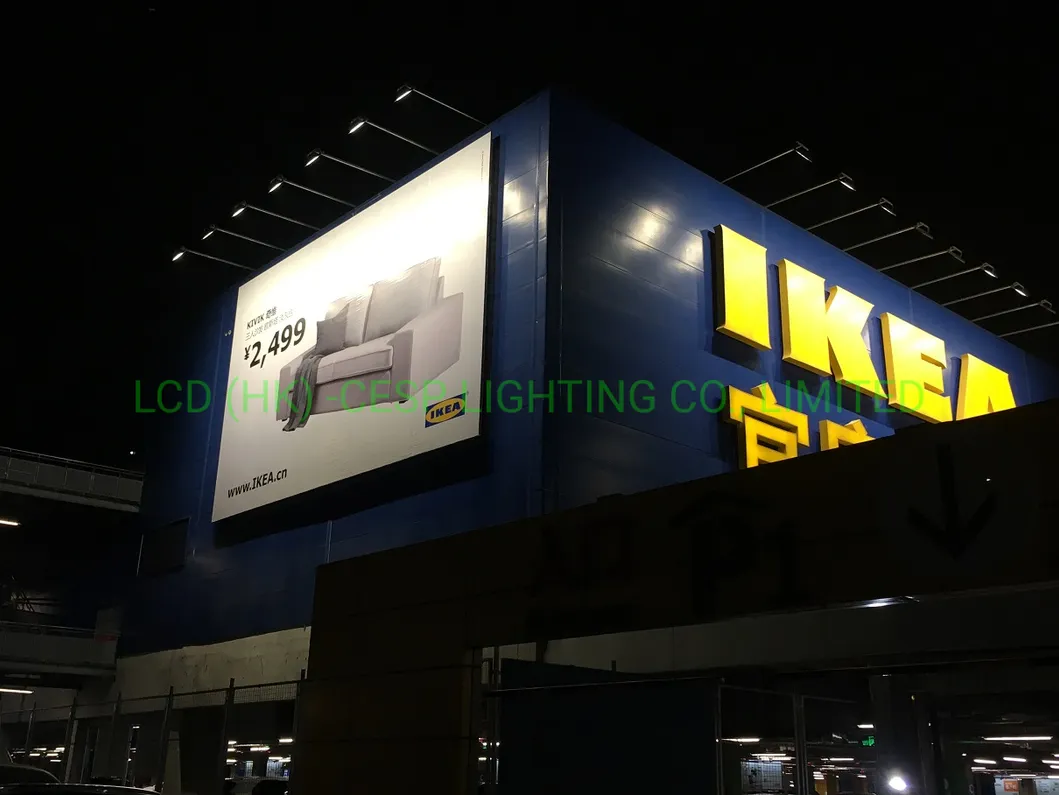

- Road & billboard lighting



Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.

Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

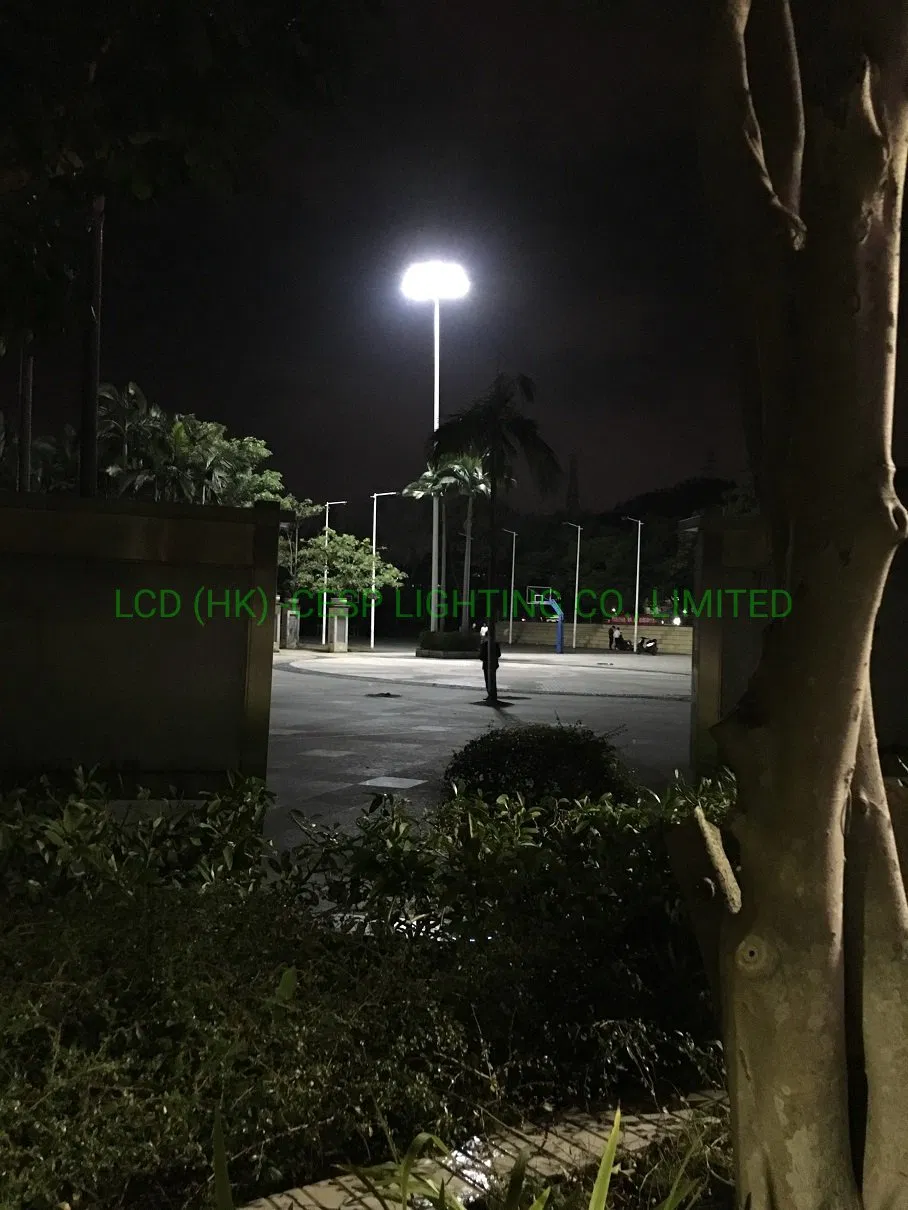

Mast & Post--Road & Car Parking



Installation review

HYLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.



Low Voltage 50W DC12V 7250 Lumen Outdoor LED Flood Lights
led outdoor flood light bulbs 50W DC12V 7250 lm IP66 Aluminum extruded

Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 120lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 SDCM

Application:

Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.

Products features

without compromising light quality or a sense of security for those in the area.



Power saving and free maintaining



Floodlight configurations





Mounting



Optical distributions

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40

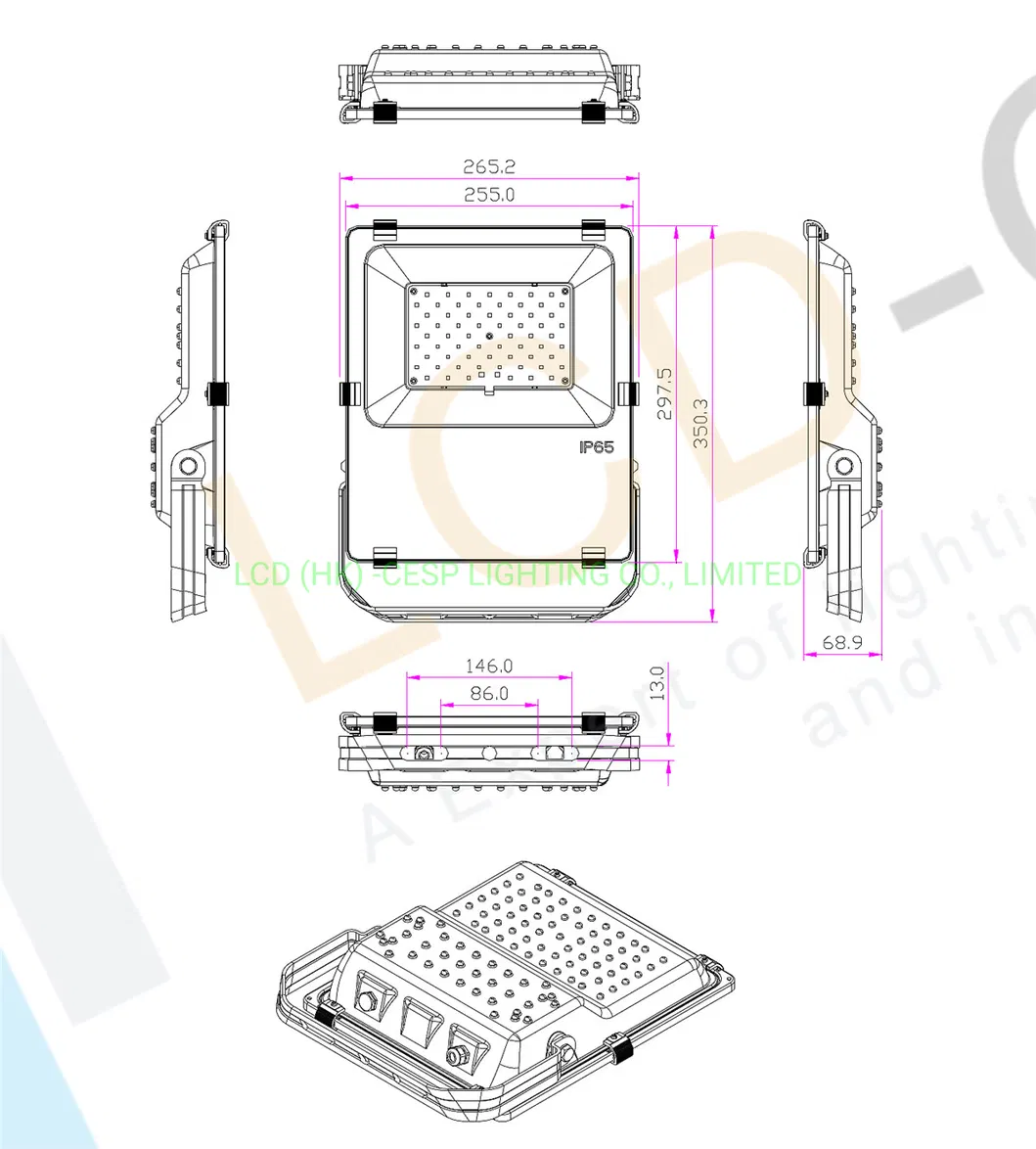

Dimension





Products Specification

Model No.           Power(W)      Lumens(lm)         Color temperature                    Input Voltage  Current    Weight(kg)    Dimensions (mm)

LCD-FLY-013         10W               1300              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        0.54Kg         179x145x32
LCD-FLY-023         20W               2600              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        0.65Kg         189x148x32
LCD-FLY-033         30W               3900              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.25Kg         261x194x47
LCD-FLY-053         50W               6500              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.50Kg         350x265x69
LCD-FLY-083         80W             10400              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.70Kg         350x265x69
LCD-FLY-103        100W            13000              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        2.85Kg         397x308x68
LCD-FLY-153        150W            19500              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        4.18Kg         441x347x68
LCD-FLY-203        200W            26000              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        4.50Kg         500x385x68

SUITABLE FOR: LED FLY Series, a professional, powerful,energy saving replacement for high intensity discharge lamps.With a compact and modern design, LUMILEDs or OSRAM(3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver or LCD brand CE&TUV driver , we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black Extruded aluminum,featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%,anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP65 grade to ensure fully water-proof. Our state of the art UL CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings,and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Highlight
Extruded aluminum heatsink housing body painted with epoxy powder prior to phosphating. Tempered anti-shock thermal silkscreen glass. Built-in electronic ballast Meanwell driver or TUV LCD brand driver, CE standard 1m cable. The polished anodized aluminum faceted louver.

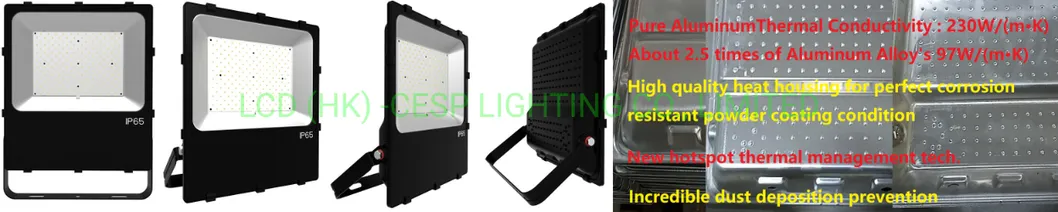

***Extruded Aluminum housing thermal conductivity about 230w/(m.k) and 2.5 times of popular aluminum alloy's 97w(m.k),the more fast way spreading LEDs engine's heat into the air ensure a long lifespan for products.
***High quality housing surface ensure a perfect painted with epoxy powder for the strongest corrosion resistant.
***New hotspot thermal management technology.
***Definitely and incredible dust deposition prevention and easily simply cleaning.
Light source: LED multichip technology with LUMILEDS or OSRAM LEDs chip.
Direct light emission. Installation by mean of supplied bracket. Over-temperature control circuit inside.
