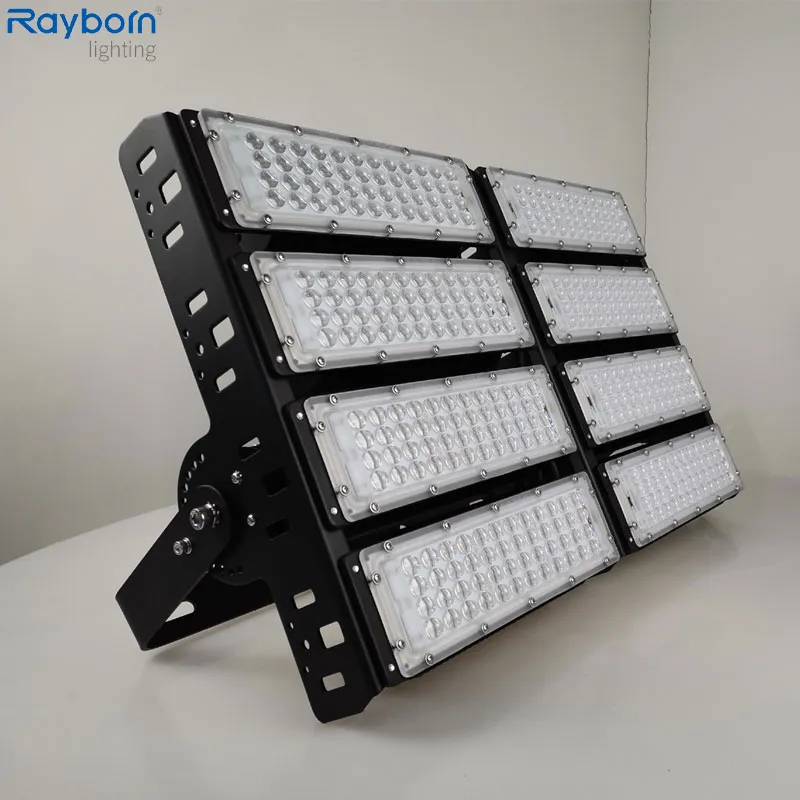

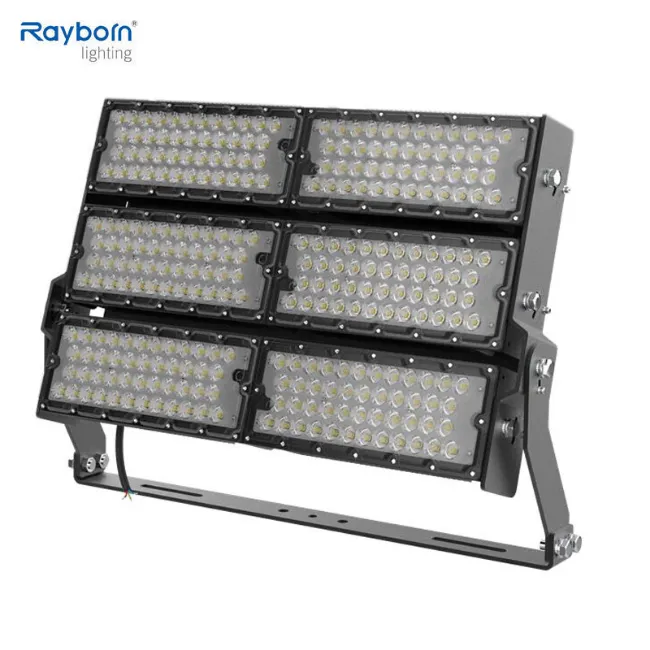

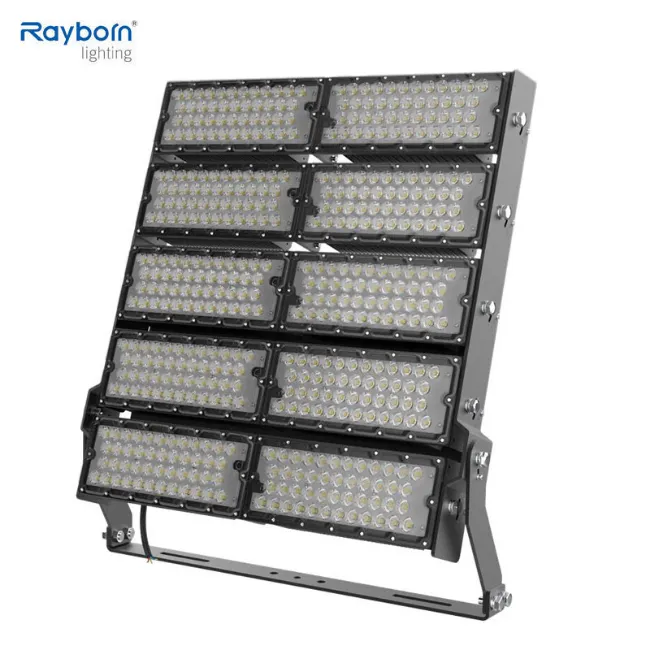

Sports Stadium LED Project 100W 150W 200W 250W 300W 400W 500W 600W 1000W Watt LED Flood Light for Square Building Landscape Tennis Court Outdoor Lighting
Industry LED Flood light IP66 Stadium Light 100Watt 150W 200W 250W 300W 400W 500W 600W 800W 1000W 1500W LED Flood Light For Outdoor Square Building Landscape Lighting sport flood light bracket IP66 Product DescriptionInput Voltage: AC 100~277V/ACLED Power: 100W 150W 200W 300W 400W 500W 600W 800W 100......
Send Inquiry
Product Description
Industry LED Flood light IP66 Stadium Light 100Watt 150W 200W 250W 300W 400W 500W 600W 800W 1000W 1500W LED Flood Light For Outdoor Square Building Landscape Lighting sport flood light bracket IP66
Input Voltage: AC 100~277V/AC
LED Power: 100W 150W 200W 300W 400W 500W 600W 800W 1000W
Driver: Meanwell / Inventronics Driver
Luminous Flux: 140-170LM/W
LED Luminous Flux Warm White, Nature White, Pure White
LED Flood light Viewing Angle: 10/25/60/90/60*150 Degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K, Pure White 5000K~5500 Cool White 6000-6500K
Color Rendering Index: Ra≥ 80
Working Temperature: -40~65
IP Grade: IP66
Working Life-span: 50000H
The color of the lamp shell Silver
Certificate SAA,CE, EMC,ETL& RoHS
| Model | RB-FLL-50WSD | RB-FLL-100WSD | RB-FLL-150WSD | RB-FLL-200WSD |
| Power | 50W | 100W | 150W | 200W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | 3030SMD | |||
| Led(pcs) | 64pcs | 128pcs | 192pcs | 256pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >92% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0-10V, PMW, DALI,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 60/90/60*150Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -35ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||
| Model | RB-FLL-250WSD | RB-FLL-300WSD | RB-FLL-400WSD | RB-FLL-500WSD |
| Power | 250W | 300W | 400W | 500W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | 3030SMD | |||
| Led(pcs) | 320pcs | 384pcs | 512pcs | 640pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >92% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0-10V, PMW, DALI,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 60/90/60*150Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -35ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||
| Model | RB-FLL-500WSDC | RB-FLL-600WSDC | RB-FLL-800WSDC | RB-FLL-1000WSD |
| Power | 500W | 600W | 800W | 1000W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | |||
| Led Type: | 5050SMD | |||
| Led(pcs) | 184pcs | 276pcs | 368pcs | 460pcs |
| Power Factor: | >0.98 | |||
| Power Efficiency: | >92% | |||
| Driver | MEANWELL, INVENTRONICS,SOSEN, according to customer needs | |||
| Ra | Ra>80 | |||
| Lumen(Lm/W) | 140lm/W | |||
| Control method | Ordinary, 0-10V, PMW, DALI,Photocell sensor | |||
| Light body material | Die-casting aluminum lamp body + pc cover +304 stainless steel screws | |||
| Beam angle | 20/40/60/90/100*140Deg | |||
| CCT: | 3000K/4000K/5000K/5700K/6500K | |||
| Protection level | IP66/IK09 | |||
| Installation diameter | Adjustable angle bracket installation/Adjustable module | |||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | |||
| Work temp | -35ºC~65ºC | |||
| Work humidity | 10%~90% | |||
| Warranty/Life | 5years/50,000hrs | |||

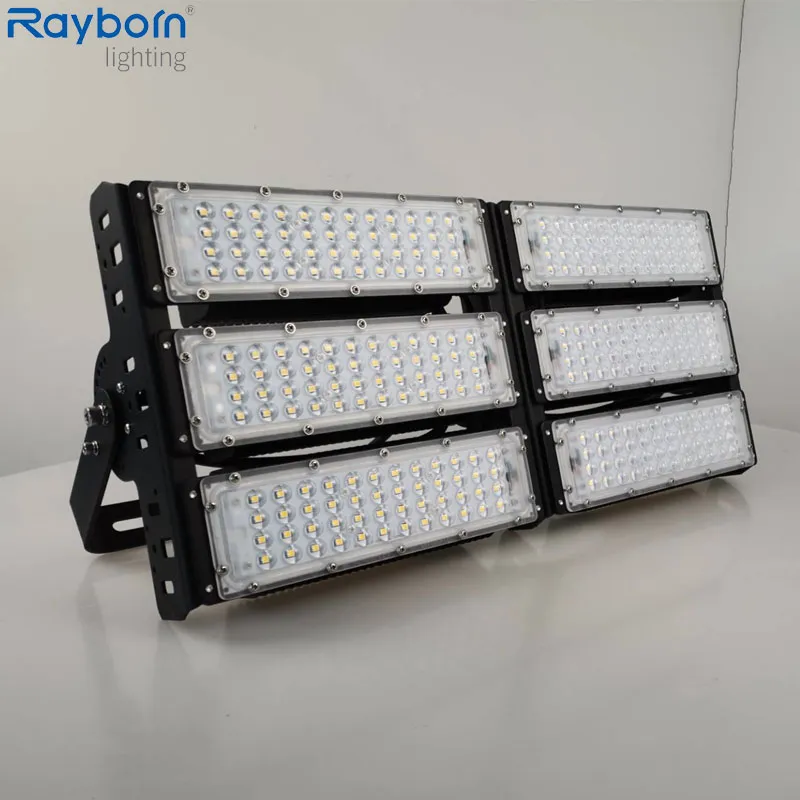

Rayborn Led Flood light Features:
Shenzhen Dongguan Zhongshan LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported 3030/5050 LED chips
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage(100-277V/277-480v/AC):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.

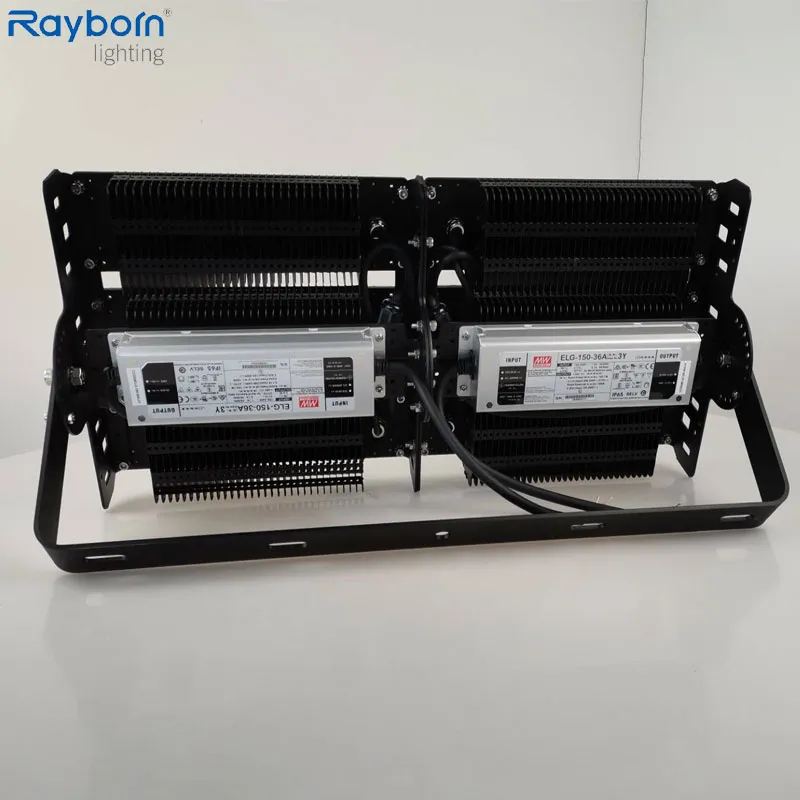

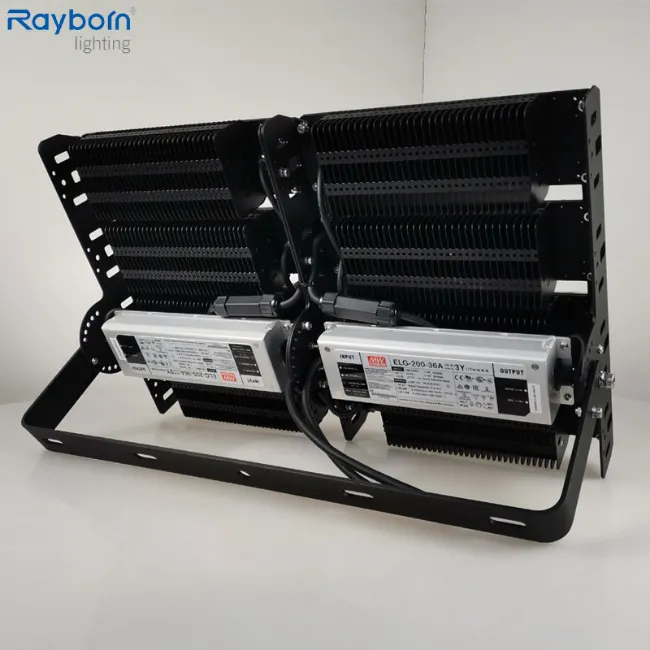

3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, All the leakage screw material is 304 stainless steel, and frame is hex screws.
6, Waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150, no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
110V/230V277V/347v/480V/100-277V LED Flood Light /LED Floodlight Applications:

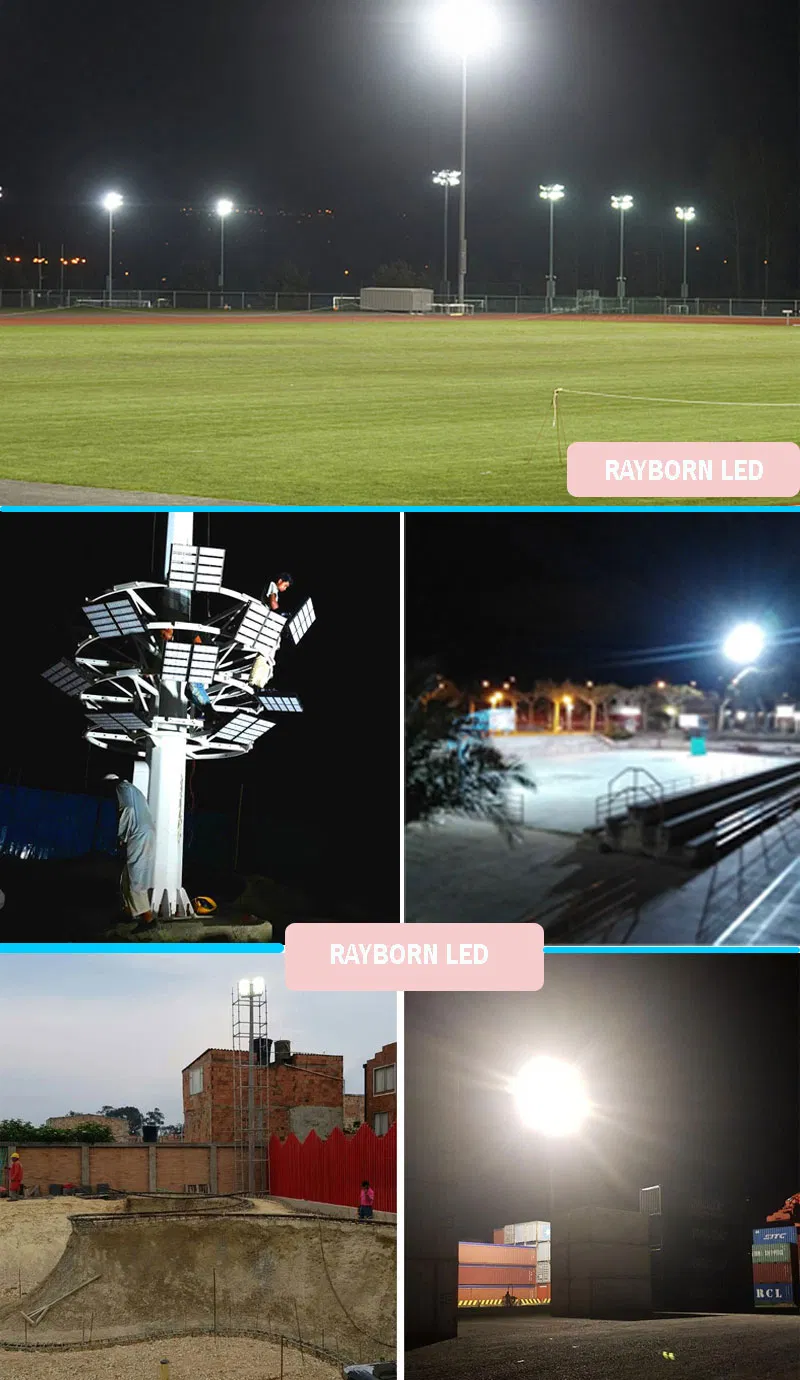

Widely used in factory, gymnasium, boatyard, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting projects etc.

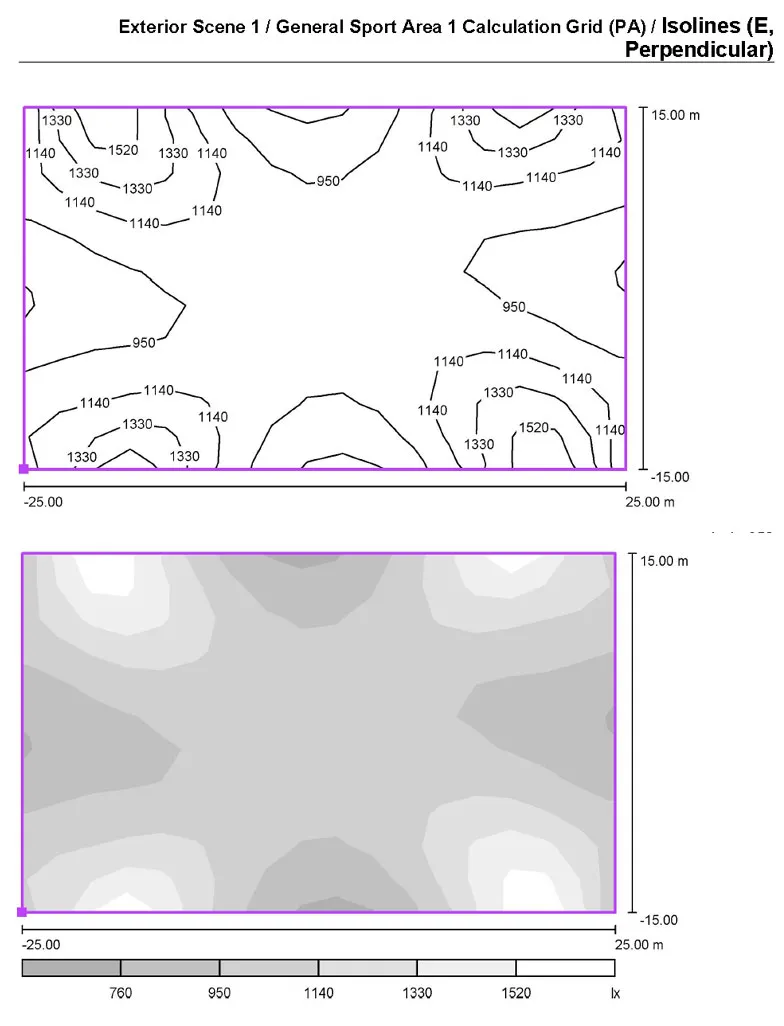

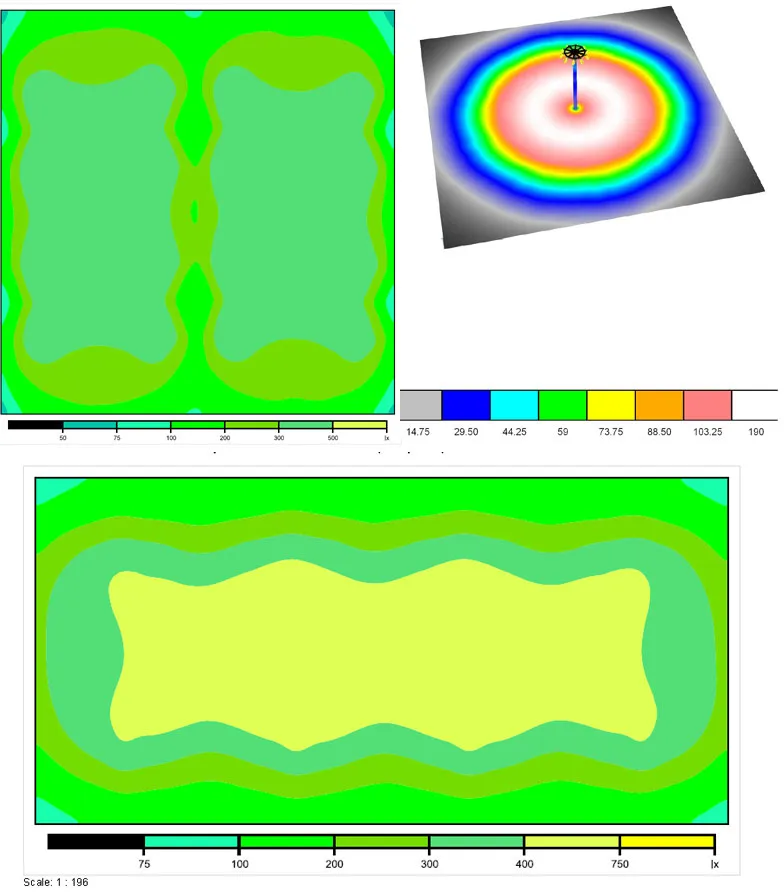

RAYBOR Flood Light Design Simulation:
1, Are you factory?
A:Yes, we produce LED flood lights for more than 7 years.
2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.
3, I want high quality LED flood light, can you do?
A:Yes, quality is our culture,we only use best components to build our led flood lights.
4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
A:Yes!
5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

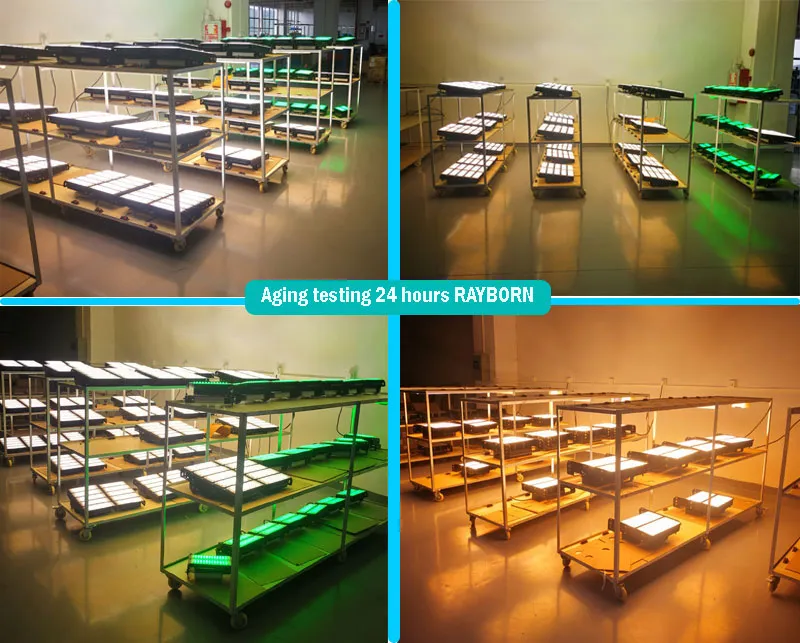

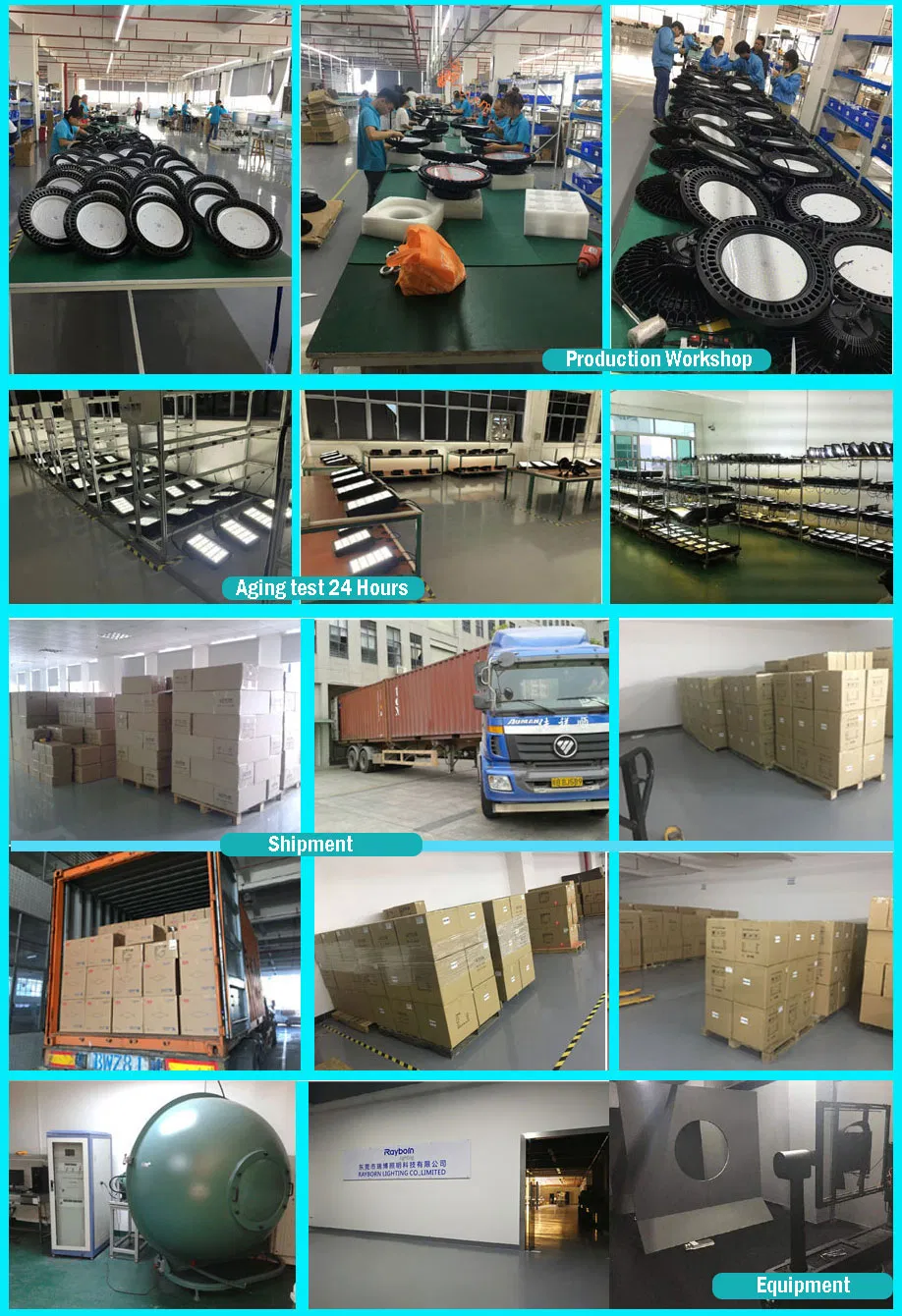

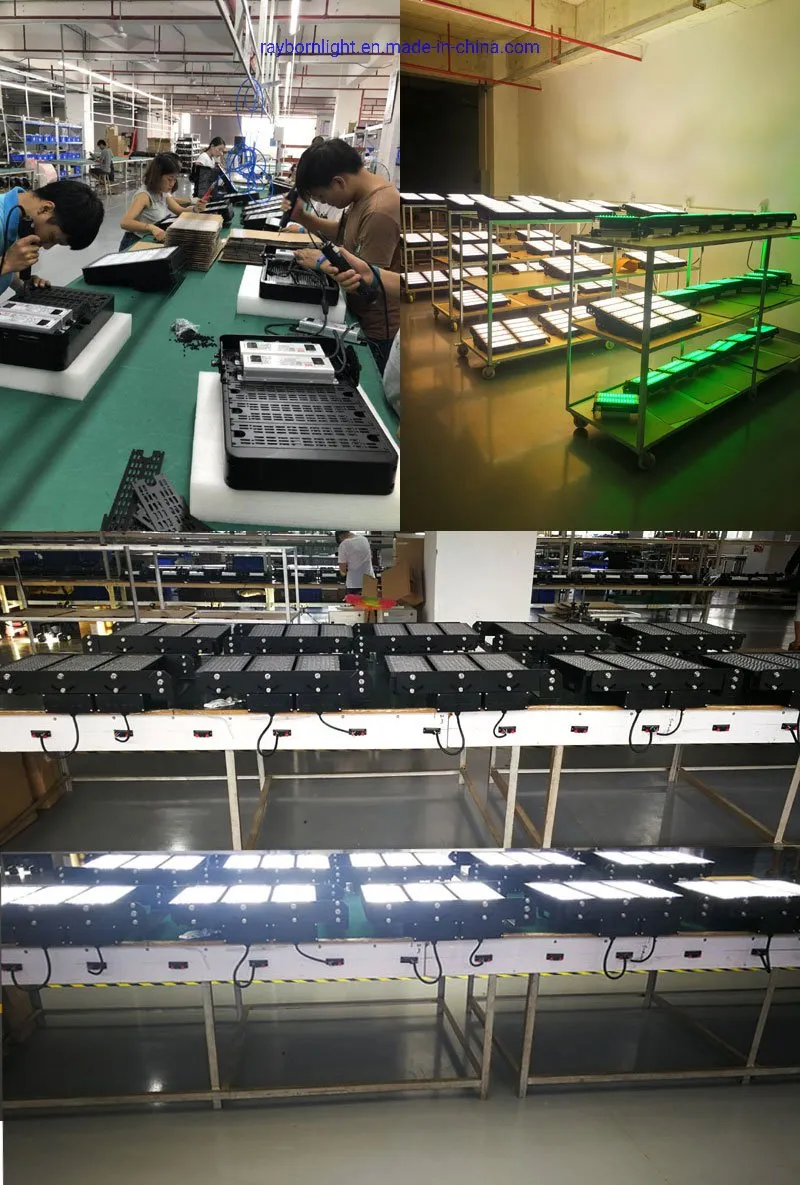

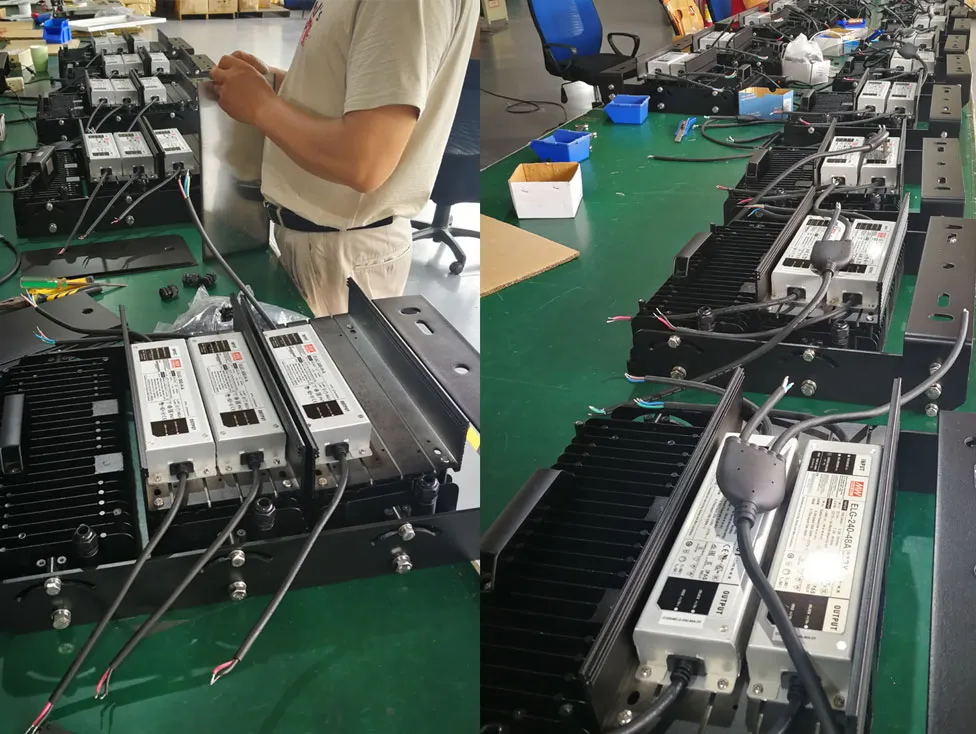

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.
7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.
Welcome you visit us anytime!
