Outdoor Waterproof IP66 1080W 151200lumens Square Football Basketball Baseball Sport Court Stadium Wharf Airport High Mast 200W to 1440W LED Floodlight

Power: 200W 360W 540W 720W 1080W 1440W
Light Efficacy: 140-170Lm/w
Smart Control: photocell, motion sensor, 1-10V dimming
Applications: sports stadium, outdoor playing fields, warehouse, plant, stages, etc.
Small order is accepted.

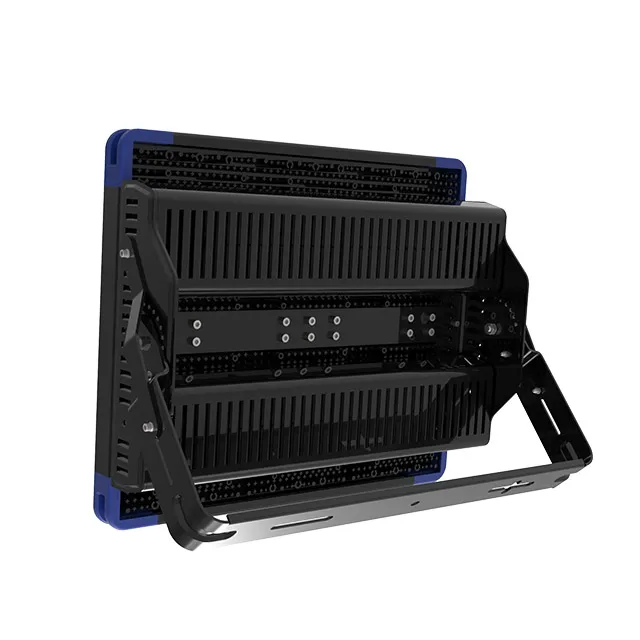

1. Housing & Heatsinks
Self-designed housing, made of extrusion process and die casting, unique and thick, of good strength and hardness, dimensional stability and long life;
Strong structure can endure 17-grade typhoon;

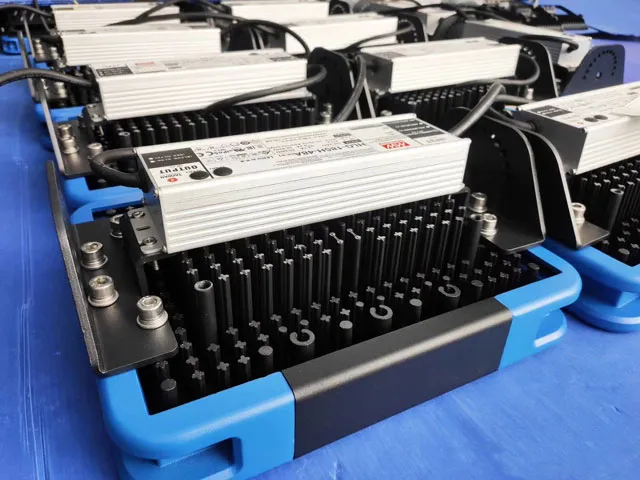

Pure aluminum heatsink, made of cold forging process, heat dissipation performance up to more than 226W/m.k, largely prolong the LED lifespan to over 50,000 hours and reduce the light decay;
Ingress protection & impact protection rating: IP66 & IK08.





2. Finishing
Fine powder-coated surface, protect the light housing and avoid it from rusting;
Black and blue together increases the light's industrial look;
Standard colors: black and blue;
Other colours can be customized.





3. Technical Description
Luminous efficacy up to 150lm/w, LED's lifetime over 60,000hours;
UV resistant and durable polycarbonate optical lenses give out high-uniformity light;
Standard voltage range is 85-277VAC, other wide voltage can be cusotmized;
External 10KV SPD can provide extra surge protection;
Working temperature requirement: -35 to +50 centigree;
Beam angle of 10, 25, 45, 60, 90 degree, along with the elongated bracket(arm) can suit for virtually any application.

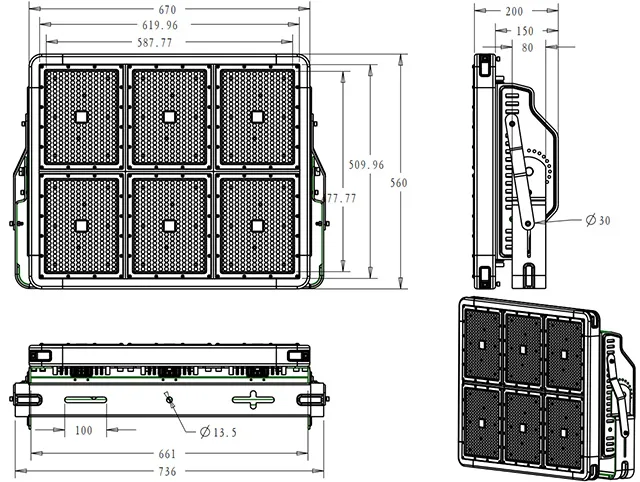

4. Dimmension







5. Installations

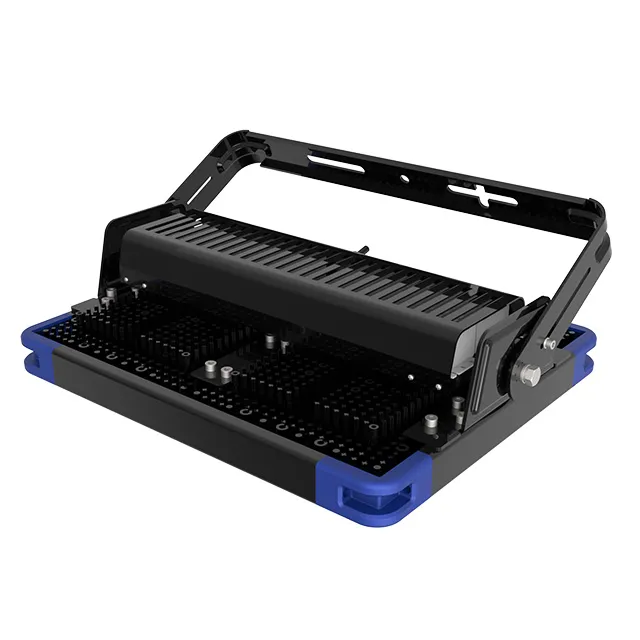

Flexible with the bracket of 180 degree rotation and extended "L"-shaped bracket, can meet precise installations in many places;

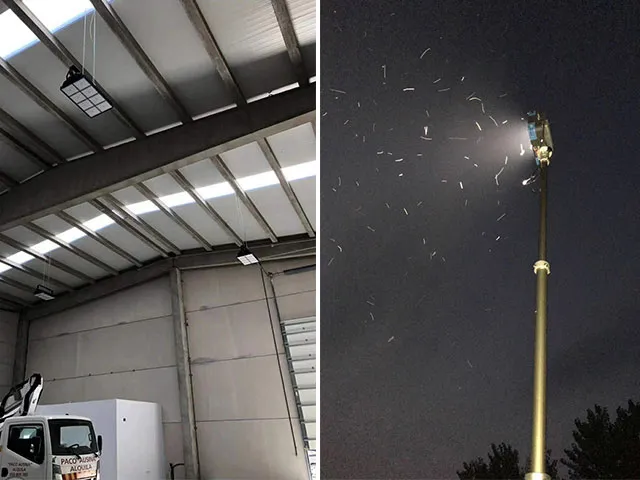

Can be mounted by a steel rope in a working plant, warehouse, gym etc., also can be installed on a pole/bracket in outside areas;
Pole mounting, wall mounting, bracket mounting.

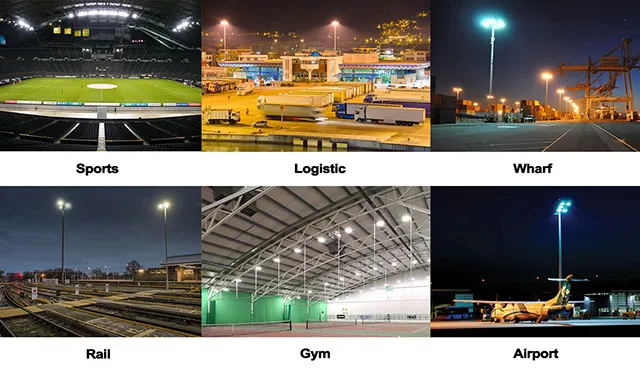

6. Applications
