Marine Fishing Boat Flood Light 250W, 24V, Water-Proof IP67, High Lumen Output 150lumen/W, for Crab Fishing Boat, Trawler Fishing Boat and Seiners Boat Lighting
FA : 50W~600W Lensed LED FloodlightKey Features: High luminous efficacy using LUMILEDs SMD3030 or SMD5050 LED chips Super slim rugged design (maximum depth 60mm) Custom designed case for effective heat dissipation In house LED driver technology Impact resistant tempered glass Bracket designed with +......
Send Inquiry
Product Description

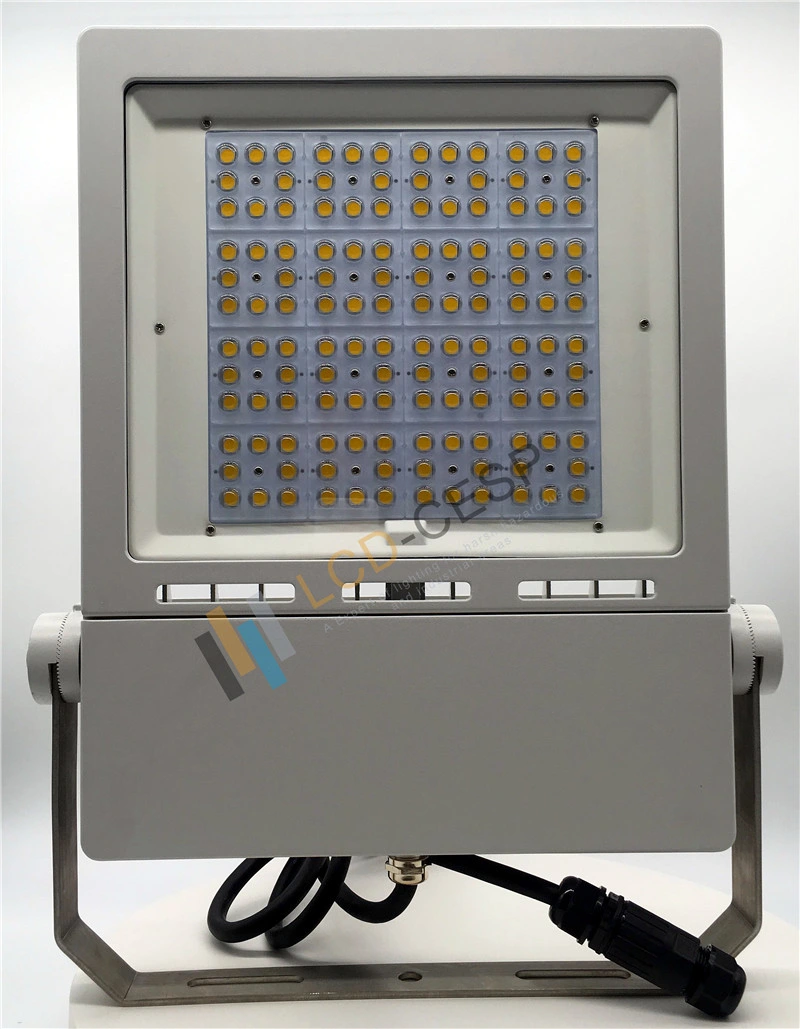

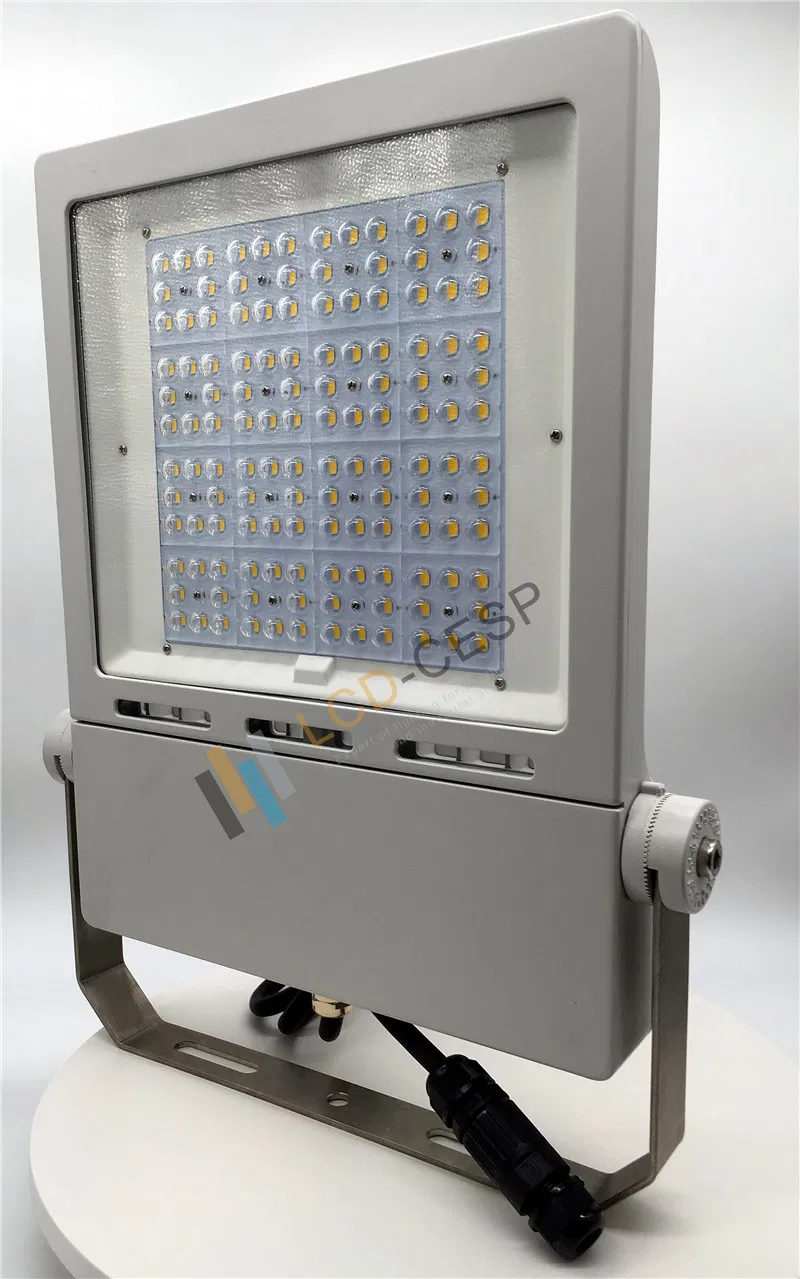

FA : 50W~600W Lensed LED Floodlight
Key Features:
• High luminous efficacy using LUMILEDs SMD3030 or SMD5050 LED chips
• Super slim rugged design (maximum depth 60mm)

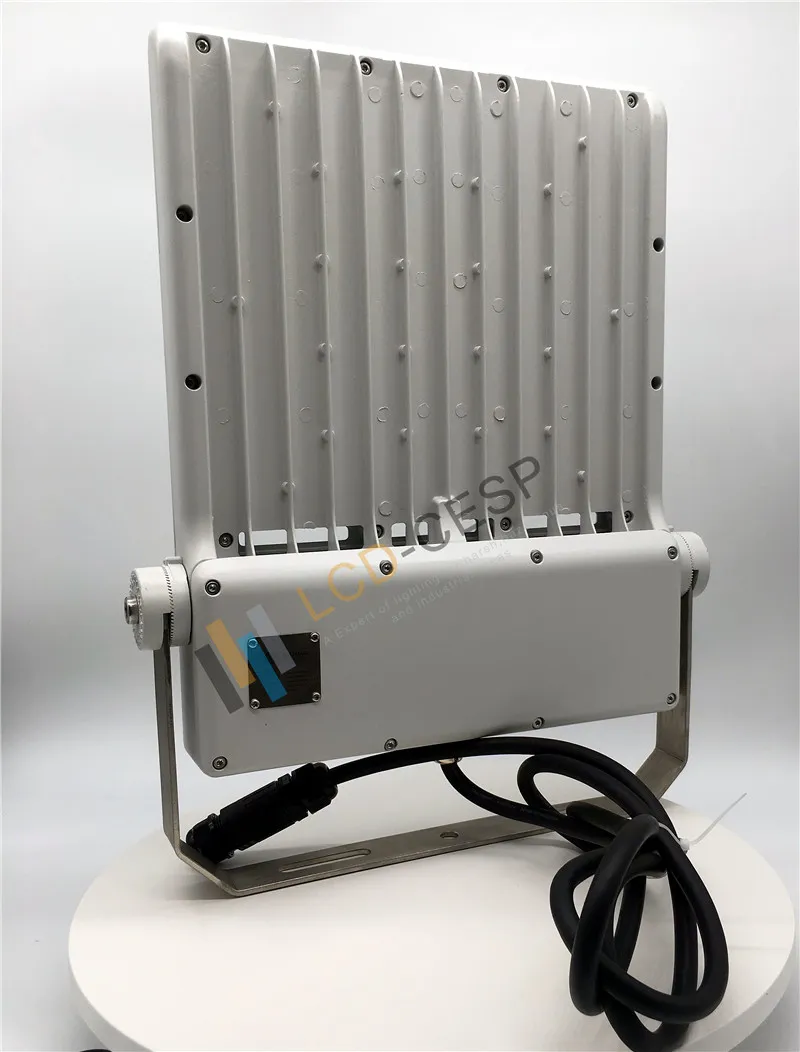

• Custom designed case for effective heat dissipation

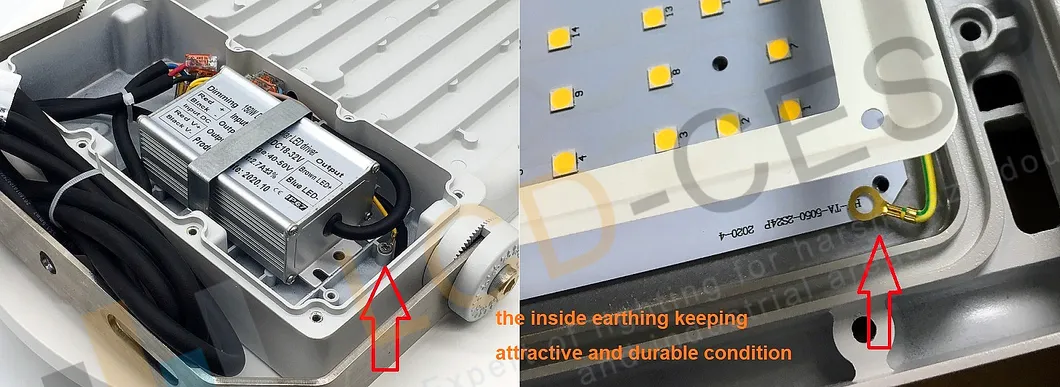

• In house LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system
• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP67 rating
• 5 years warranty
FA SPECIFICATION

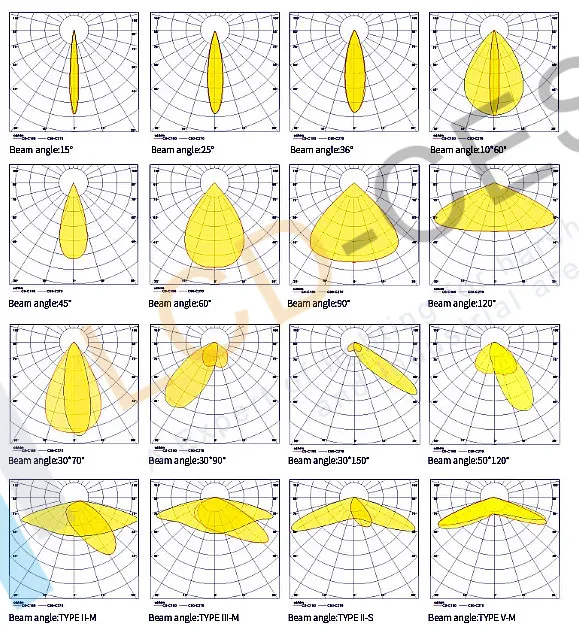

LIght distribution curve
Key Features:
• High luminous efficacy using LUMILEDs SMD3030 or SMD5050 LED chips
• Super slim rugged design (maximum depth 60mm)
• Custom designed case for effective heat dissipation
• In house LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system
• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP67 rating
• 5 years warranty
FA SPECIFICATION
| Model Number | LCD-FA-083/103-LNXXX | LCD-FA-153-LNXXX | LCD-FA-203-LNXXX | LCD-FA-253-LNXXX |
| Fitting Colour | RAL 9010 white | RAL 9010 white | RAL 9010 white | RAL 9010 white |
| Input Voltage | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz |
| Output Load | 80W | 100W | 150W | 200W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumens | 12000-15000lm | 22500lm | 30000lm | 37500lm |
| Beam Angle | 16 different optic beams | 16 different optic beams | 16 different optic beams | 16 different optic beams |
| Colour (K) | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K |
| CRI | >75 | >75 | >75 | >75 |
| Efficacy (lm/W) | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w |
| Housing | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case |
| Working Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Protection | IP67 | IP67 | IP67 | IP67 |
| Weight | 4KG | 4.3KG | 5.4KG | 6.5KG |
| Dimensions | 315 x 245 x 57mm | 315 x 245 x 57mm | 4 x 290 x 57mm | 420 x 329 x 57mm |
LIght distribution curve
| Model Number | LCD-FA-303-LNXXX | LCD-FA-353-LNXXX | LCD-FA-403-LNXXX | LCD-FA-603-LNXXX |
| Fitting Colour | RAL 9010 white | RAL 9010 white | RAL 9010 white | RAL 9010 white |
| Input Voltage | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz | 90-305V 50-60Hz |
| Output Load | 250W | 300W | 400W | 600W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumens | 45000lm | 52500lm | 60000lm | 90000lm |
| Beam Angle | 16 different optic beams | 16 different optic beams | 16 different optic beams | 16 different optic beams |
| Colour (K) | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K | 3000K, 4000K,6000K |
| CRI | >75 | >75 | >75 | >75 |
| Efficacy (lm/W) | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w | up to155 lumen/w |
| Housing | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case | Die cast Aluminium Case |
| Working Temperature | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C | -30°C ~ +50°C |
| Protection | IP67 | IP67 | IP67 | IP67 |
| Weight | 10.4Kg | 10.8KG | 13KG | 20.8KG |
| Dimensions | 530 x 385 x 60mm | 530 x 385 x 60mm | 420 x 658 x 57mm | 530 x 772 x 60mm |
