High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

Product Description

100W LED Street Light Main Technical Parameters
Item No.:		RB-STB-100W
Input Voltage:		AC 100~277V
Freqency Range:		50Hz~60Hz
Driver:		Meanwell ELG
Led Chip:		Lumileds
Power Factor:		>0.98
Power Efficiency:		>92%
LED Power		100W
LED Working Voltage:		DC 42~48V
System Consumption:		102W
LED Luminous Flux	Warm White	12800LM
	Pure White	12900LM
	Cool White	13000LM
Viewing Angle:		120/90 degree
Center Illuminance	Height 6M	71LUX
	Height 9M	31LUX
	Height 12M	17LUX
Illuminance Area	Height 6M	Dia.1047CM points visible
	Height 9M	Dia.1571CM points visible
	Height 12M	Dia.2095CM points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000-3500K
	Pure White	4000-5300K
	Cool White	5300-6000K
Color Rendering Index		Ra>80

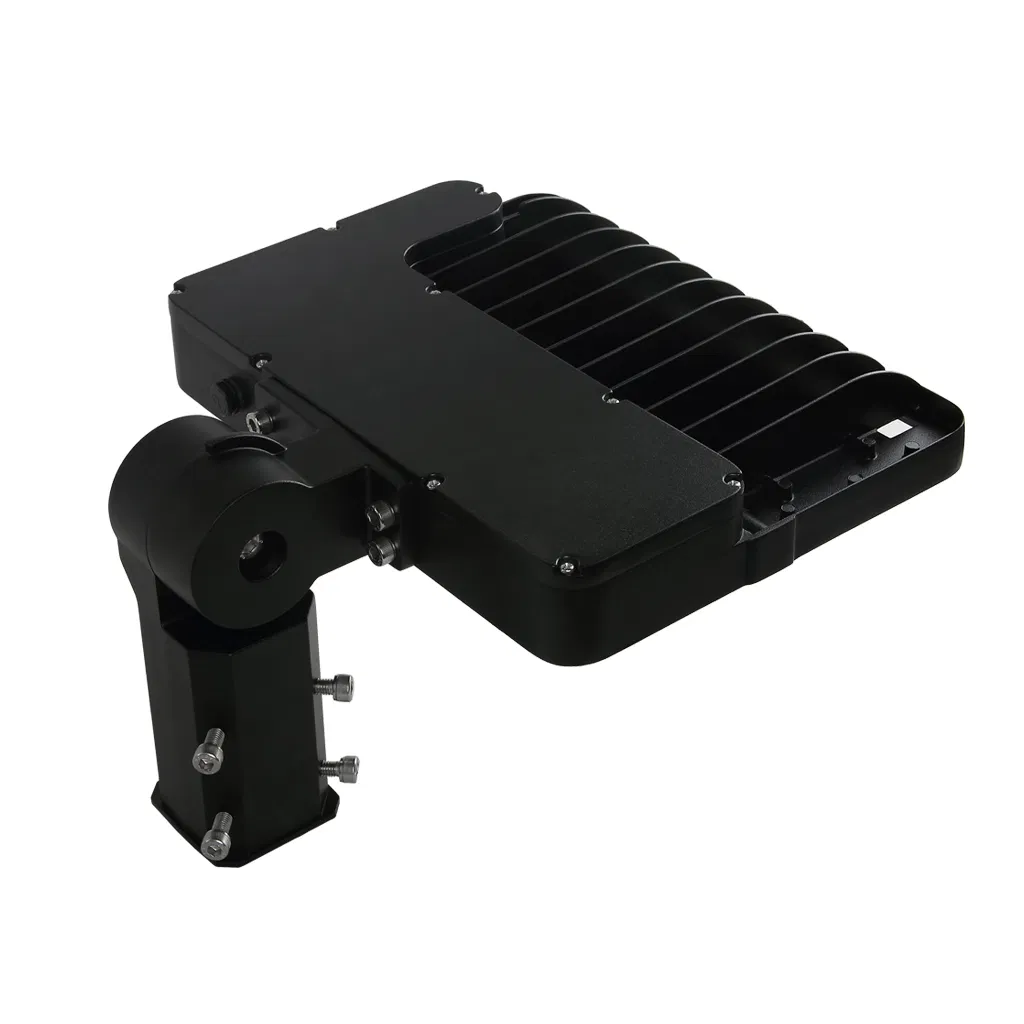

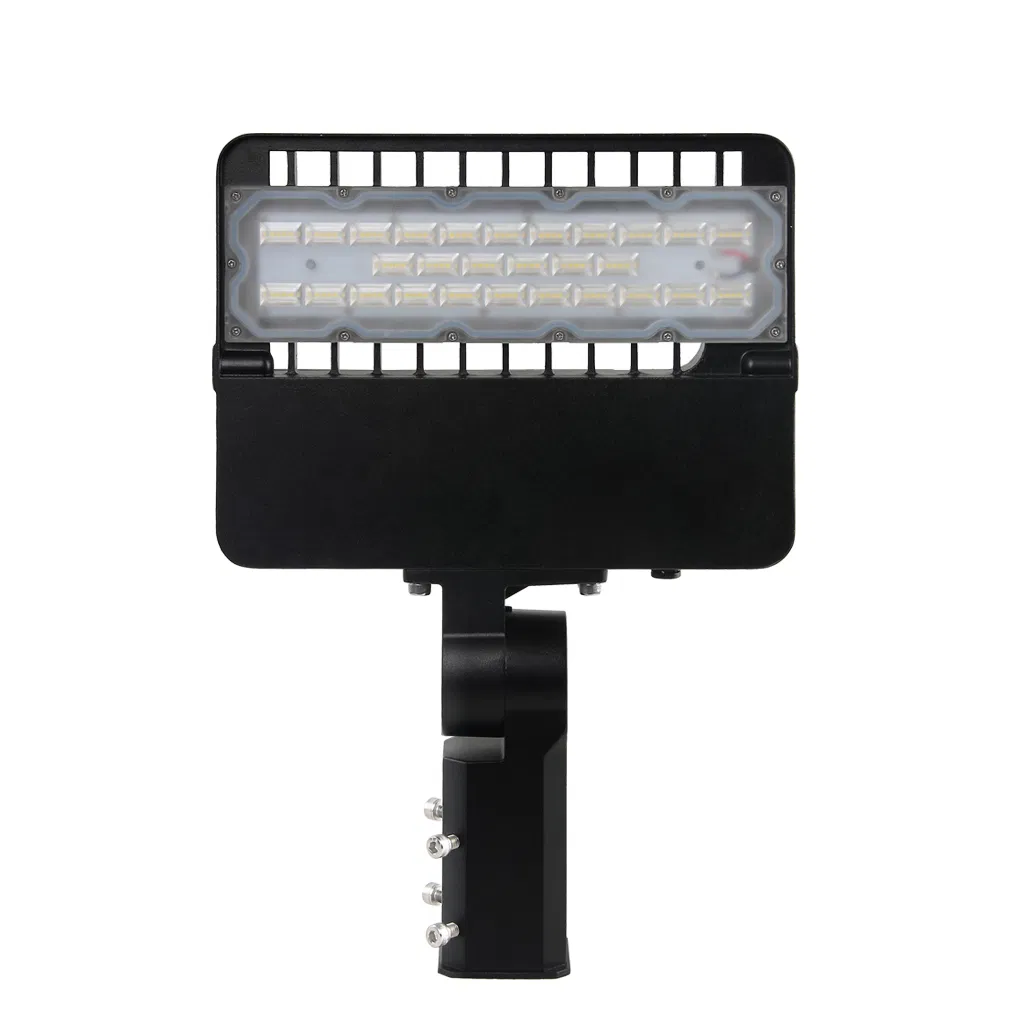

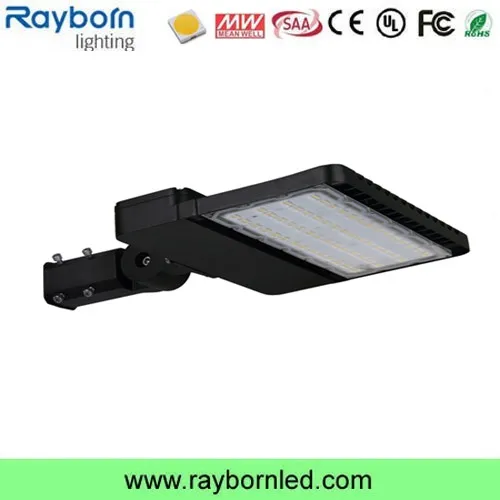

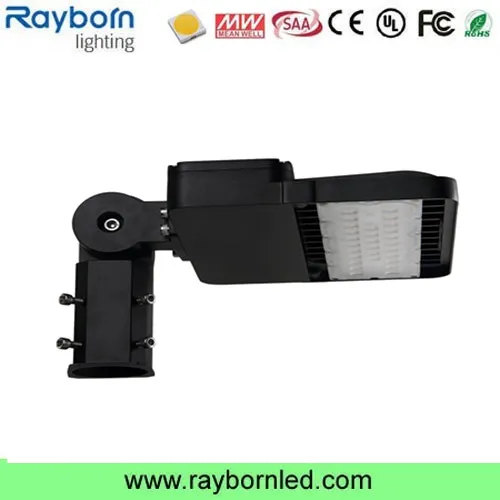

100W SMD led flood light high definition picture:

High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

Led Flood light advantage:
LED Chip: SMD Lumileds LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.

Power Supply: LED flood lights are adopted Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Finned aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: FCC CE RoHS ULapproval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.

Our led flood light data sheet:

1. Taiwan MeanWell drivers, SMD LED chips.

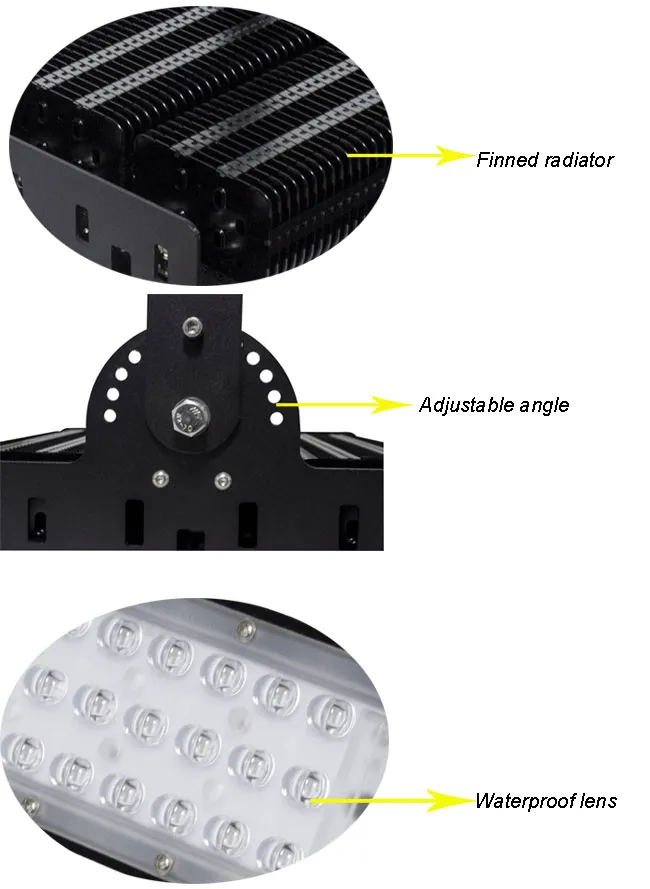

2. Finned radiators, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP65 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 60° 90° 60*150° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W-300W can be chosen, 5 years warranty.

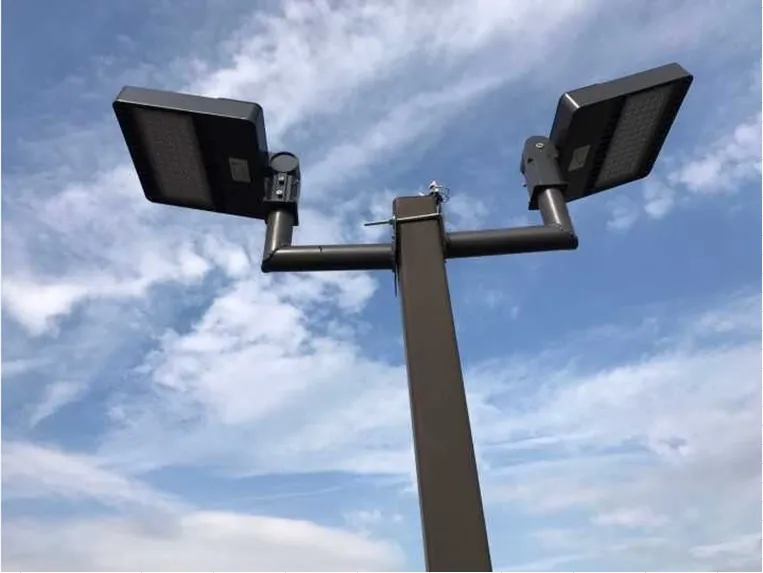

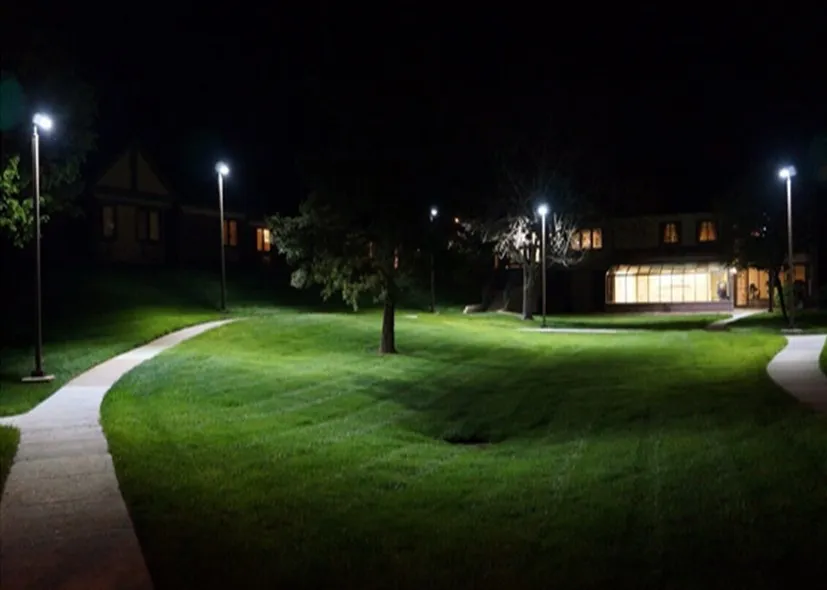

Applications: High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

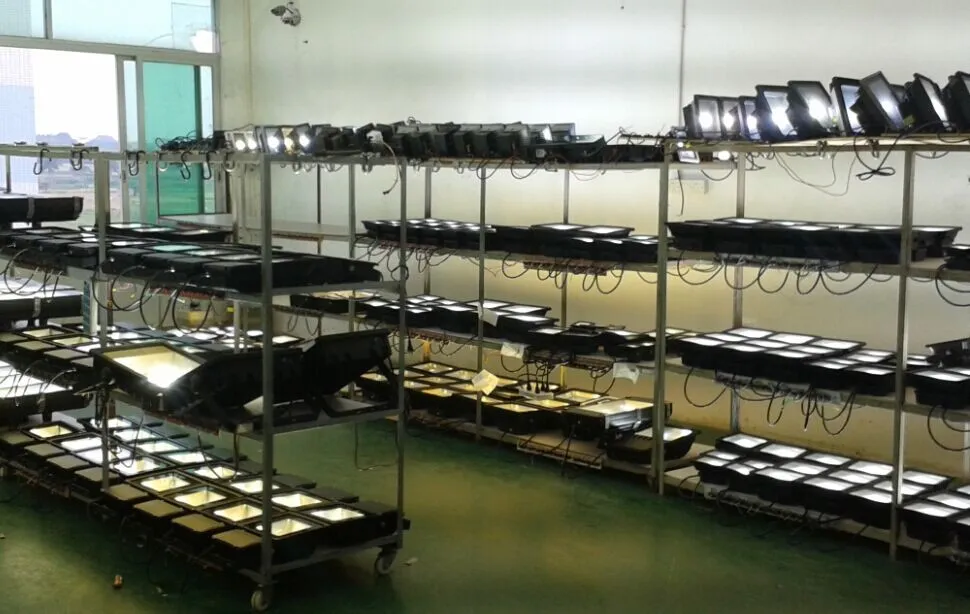

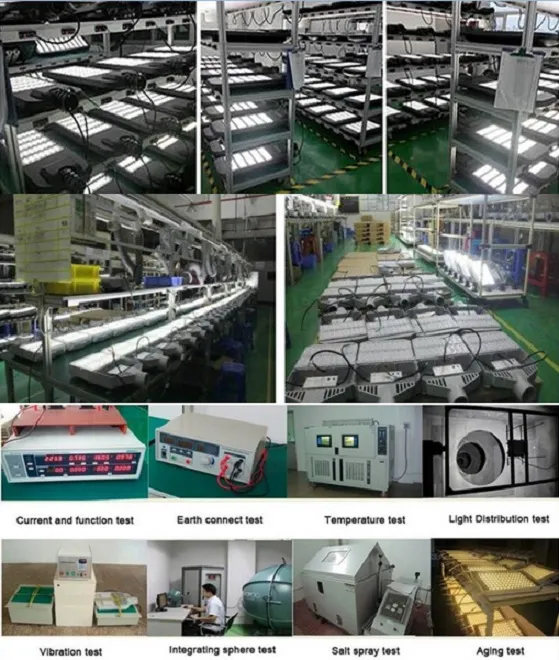

QC test Led Flood Light:
Before shipping, all the LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

Packaging of flood Light LED :

Our individual package maximize protecting the flood lights from transfer damage in transit.
1. Label on backside of each flood light and your required label is available.
2. One piece led flood Light per carton.
3. This is our regular packing of the led flood light, if you need, we can also custom your own color packing and put your logo on it.

High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

Rayborn Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.

Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
High Lumen LED Flood Light IP65 Projector 100W 300W Outdoor Landscape Lighting

FAQ:

1, Are you factory?
A:Yes, we produce LED flood lights for more than 6 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED flood light, can you do?
A:Yes, quality is our culture,we only use best components to build our led flood lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.

Welcome you visit us anytime!
