Home > Products > LED Floodlight > High Lumen Die Casting Aluminum Alloy Housing 240W/300W/500W/600W/720W/900W/1000W/1200W LED Floodlights

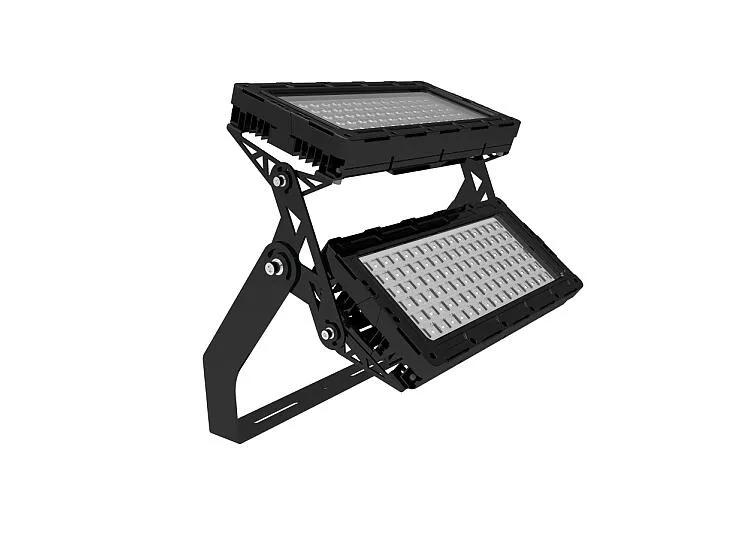

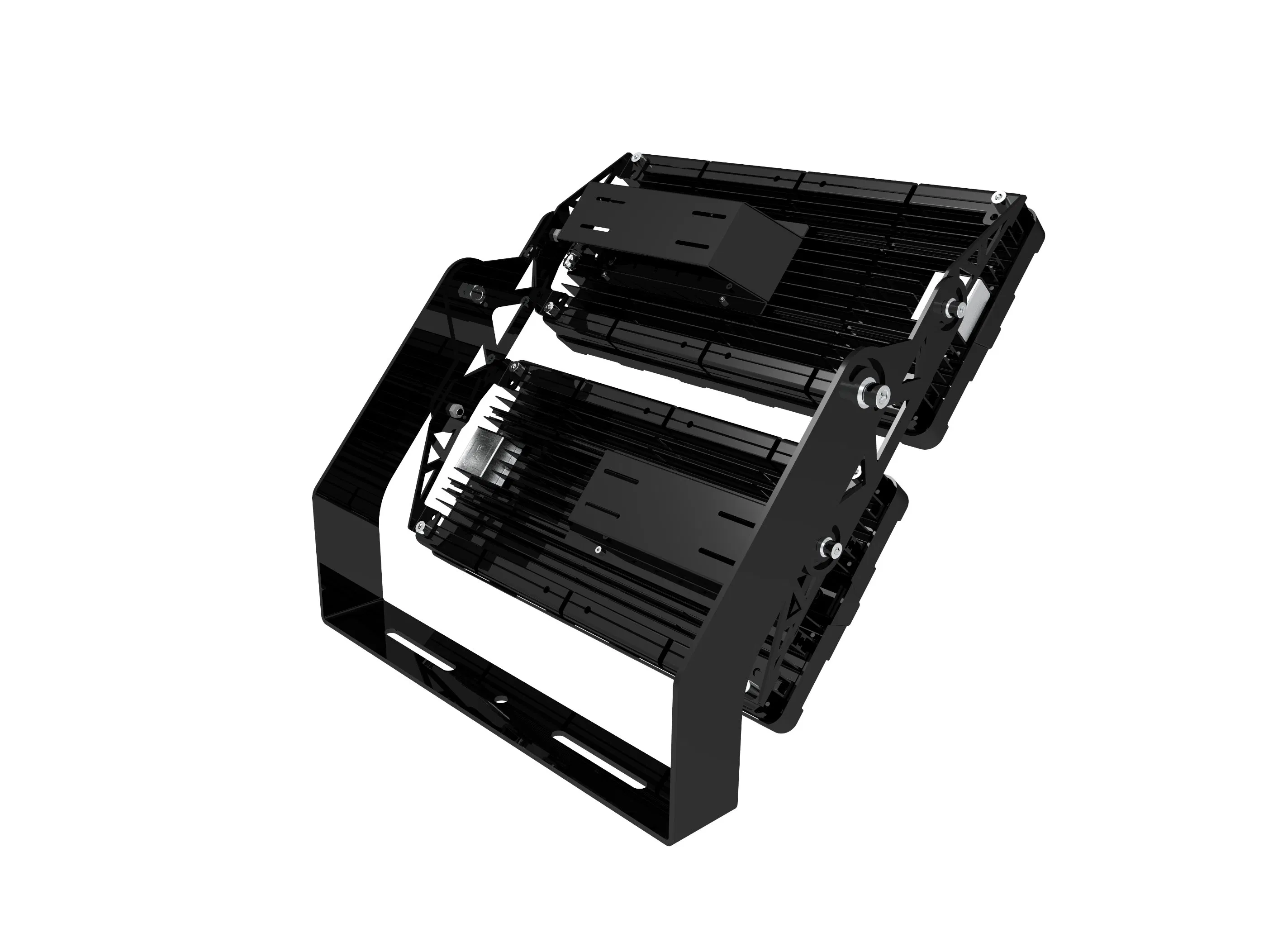

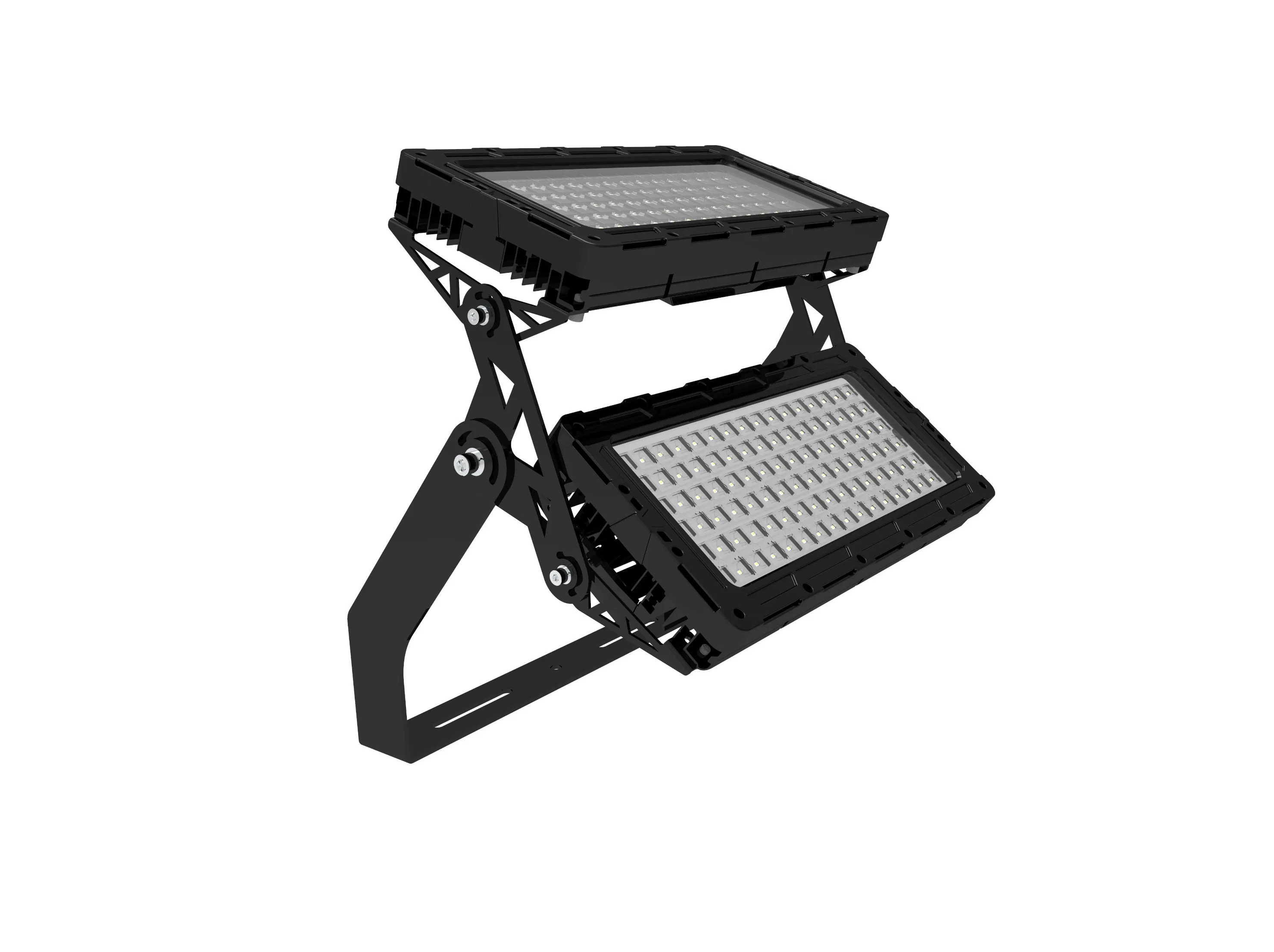

High Lumen Die Casting Aluminum Alloy Housing 240W/300W/500W/600W/720W/900W/1000W/1200W LED Floodlights
Product AdvantagesPC lens and Tempered Glass Cover with double protectionSpecial design with adjustable bracketStainless Steel Screw with protective cap, being not exposed to the sun, wind and rain, protecting U-shape bracketBeam angle 15/25/50/90° optionalTechnical SpecificationsLED Type: L......
Send Inquiry
Product Description
Product Advantages
PC lens and Tempered Glass Cover with double protection
Special design with adjustable bracket
Stainless Steel Screw with protective cap, being not exposed to the sun, wind and rain, protecting U-shape bracket
Beam angle 15/25/50/90° optional
Technical Specifications
LED Type: Lumileds SMD3030/SMD 5050 with LM80 report
Luminous efficiency: 140LM/W/170lm/W
Colour(CCT): 3000k, 4000k, 5000k, 6000k, 6500K
Driver Brand: meanwell HLG/meanwell ELG/SOSEN
Power:400w/500w/800w/1000W/1200w
Frequency: 50/60Hz
Input Voltage: 85-265VAC, 100-277VAC, 90-305V, 180-528V also available
Optional Function: Daylight Sensor
Beam Angle: 30/90/90*110/105*150 Degree
PF>0.95, CRI >80Ra, THD<15%
Transfer efficiency>85%, pass test of surge 3000V
Surge Protection: 10KV
LED Junction Temperature: ≤65ºC
Working Temperature: -40ºC~+50ºC
Storage Temperature: -40ºC~+70ºC
Humidity: 10%~90%RH
Corrosion-proof grade: Wf2
Anti-wind level: 17hurricane
Waterproof and dustproof grade: IP65
Body Colour: Black / Gray
Material: Die-cast Aluminum, PC lens, Toughened Glass, Silicone Ring
Installation: mounting bracket, screws
Waterproof testing: 72h
Aging testing: 72h
Life-span: 50, 000 hours
Applications
Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects, building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Mobile:0086-180 0253 2737
Please feel free to send us your inquiry, We are at your service any time!
PC lens and Tempered Glass Cover with double protection
Special design with adjustable bracket
Stainless Steel Screw with protective cap, being not exposed to the sun, wind and rain, protecting U-shape bracket
Beam angle 15/25/50/90° optional
Technical Specifications
LED Type: Lumileds SMD3030/SMD 5050 with LM80 report
Luminous efficiency: 140LM/W/170lm/W
Colour(CCT): 3000k, 4000k, 5000k, 6000k, 6500K
Driver Brand: meanwell HLG/meanwell ELG/SOSEN
Power:400w/500w/800w/1000W/1200w
Frequency: 50/60Hz
Input Voltage: 85-265VAC, 100-277VAC, 90-305V, 180-528V also available
Optional Function: Daylight Sensor
Beam Angle: 30/90/90*110/105*150 Degree
PF>0.95, CRI >80Ra, THD<15%
Transfer efficiency>85%, pass test of surge 3000V
Surge Protection: 10KV
LED Junction Temperature: ≤65ºC
Working Temperature: -40ºC~+50ºC
Storage Temperature: -40ºC~+70ºC
Humidity: 10%~90%RH
Corrosion-proof grade: Wf2
Anti-wind level: 17hurricane
Waterproof and dustproof grade: IP65
Body Colour: Black / Gray
Material: Die-cast Aluminum, PC lens, Toughened Glass, Silicone Ring
Installation: mounting bracket, screws
Waterproof testing: 72h
Aging testing: 72h
Life-span: 50, 000 hours
| Item No. | Specification | ||||
| Power | Input Voltage | Lumious Flux(lm) | Product Dimension | Luminous Efficiency | |
FLH240WX-XXX | 240W | AC100~277V/347V | 40800±5% | 571.7*231.4*116.8mm | 150LM/W 170LM/W |
FLH500WX-XXX | 500W | AC100~277V/347V | 85000±5% | 615.8*542.2*181.8mm | |
FLH720WX-XXX | 720W | AC100~277V/347V | 122400±5% | 659.9*853*246.7mm | |
Applications
Widely used in bars, clubs, hotels, stages, park, sculpture, square, parking lot, playground, shopping mall, plazas, exhibition hall, commercial buildings facade, mosques, museums, art galleries, historical buildings, factories, gymnasiums, stadium, isles, yard, advertising boards, billboards, buildings, lawns, national green lighting projects, building facade and public corridor, stair corridor, garden designs and some other indoor and outdoor places where need spot lighting and light decoration,etc
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Mobile:0086-180 0253 2737
Please feel free to send us your inquiry, We are at your service any time!
