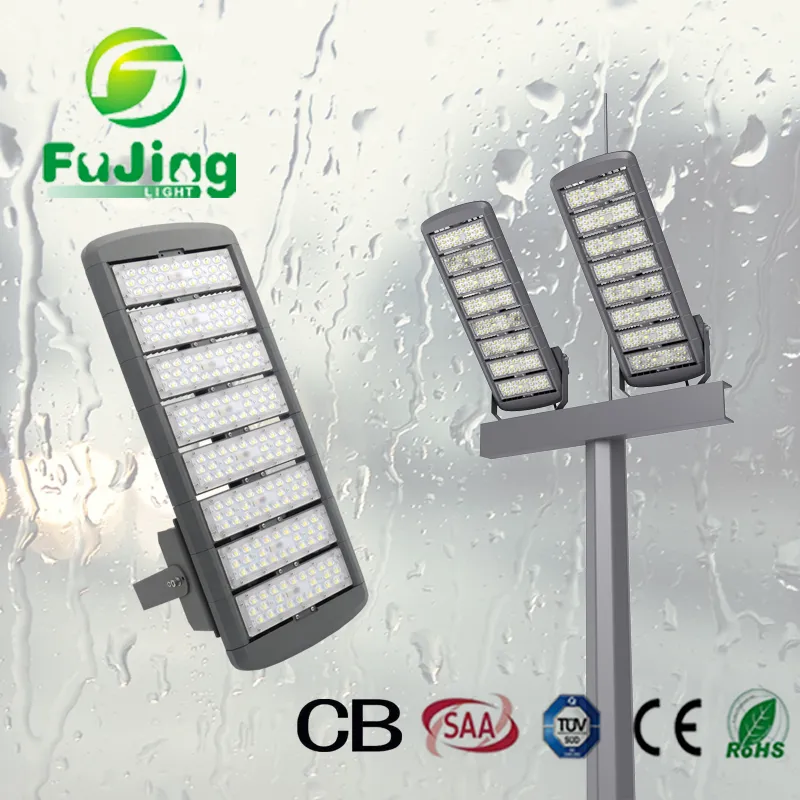

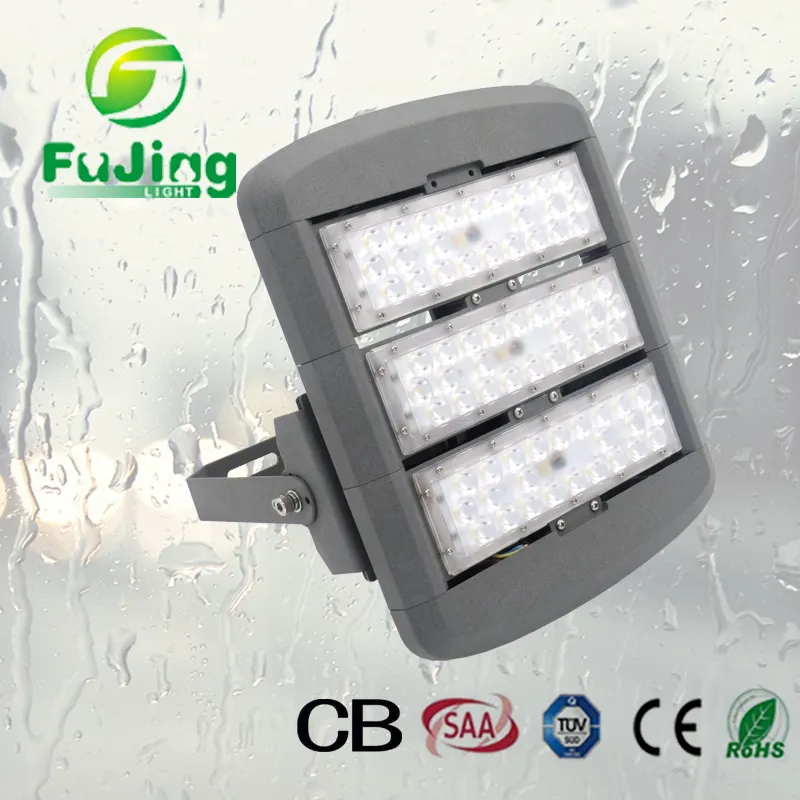

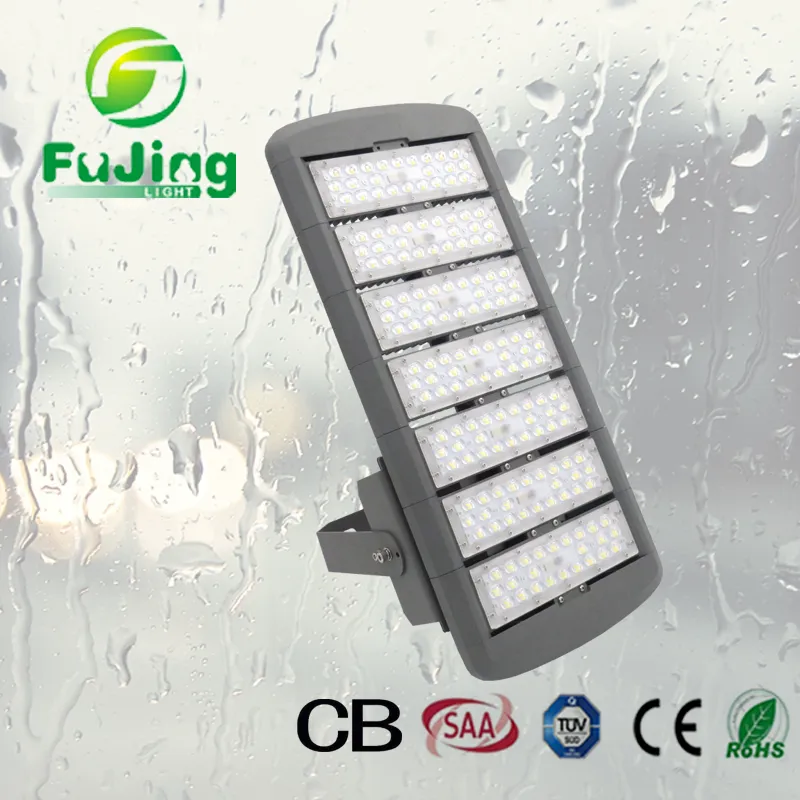

Energy Saving High Lumen IP66 Waterproof Outdoor LED Floodlight 100W 150W 200W 300W 400W LED Flood Light
Specifications: Part No.FJ-FL100W-G01FJ-FL120W-G01FJ-FL150W-G01Rated Power100W120W150WLuminous Flux:15000LM18000LM22500LMInput Voltage90-305VAC, 277-528VAC, DC24V,DC14V,50-60HzLED TypeLumileds/Cree chipColor Temperature:2700k-7000KConversion Efficiency:92%Power Factor:>0.98Beam Angle:10/30/60/90/......
Send Inquiry
Product Description
Specifications:
| Part No. | FJ-FL100W-G01 | FJ-FL120W-G01 | FJ-FL150W-G01 | ||||
| Rated Power | 100W | 120W | 150W | ||||
| Luminous Flux: | 15000LM | 18000LM | 22500LM | ||||
| Input Voltage | 90-305VAC, 277-528VAC, DC24V,DC14V,50-60Hz | ||||||
| LED Type | Lumileds/Cree chip | ||||||
| Color Temperature: | 2700k-7000K | ||||||
| Conversion Efficiency: | 92% | ||||||
| Power Factor: | >0.98 | ||||||

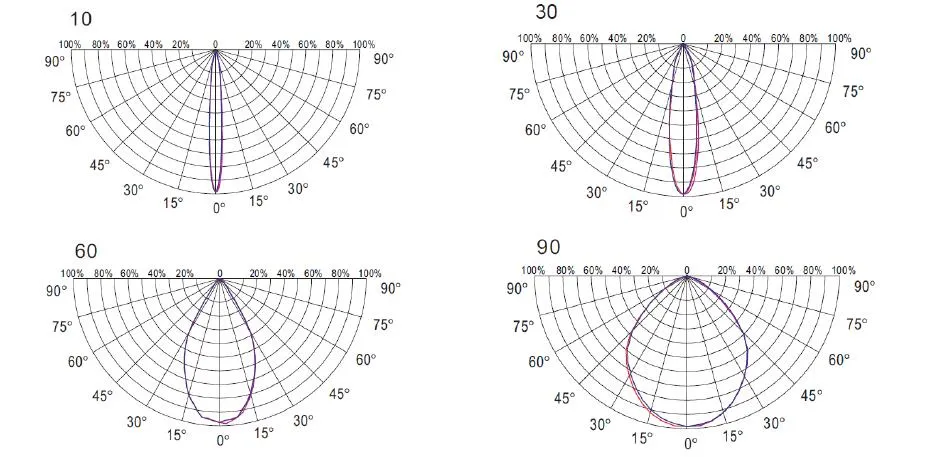

| Beam Angle: | 10/30/60/90/145*70degree | ||||||
| Diffuser: | PMMA Lens | ||||||
| IP grade: | IP66 | ||||||
| Operate Temperature: | -20°~+50° | ||||||
| Storage Temperature: | -20°~+50° | ||||||
| Color Rendering Index: | >80 | ||||||
| Life Span: | 50000 hrs | ||||||
| Housing Color: | Grey/Black/White/So on | ||||||
| Luminance decrease: | Keep lighting 1000hours decrease 1% | ||||||
| Shape: | Rectangle | ||||||
| Material: | Aluminum + PMMA Lens | ||||||
| Application: | football stadium, basketball stadium, tennis court, golf court, bridge an so on | ||||||
Features:
1. Use high bright SMD 3030, the luminous efficiency of the whole lamp up to 150lm/W.
2. Use a high-quality Meanwell driver with surge protection of 10KV.
3. IP66 rated for wet location.
4. Photocell sensor and dimmable function for option.
5. Offering 5 years warranty, over 50,000 hours lifetime.
6. Modular design allows for the separation of components for best heat dissipation.
7. Die-cast and powder-coated aluminum housing for better anti-corrosion.
8.270degree adjustable U bracket can match your different request

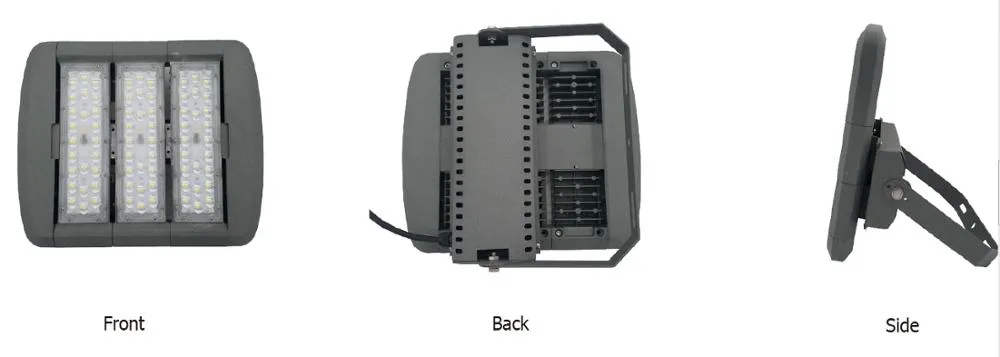

Details:

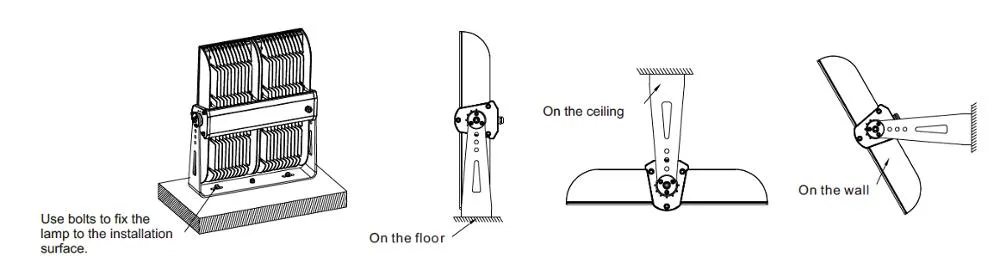

Installation:

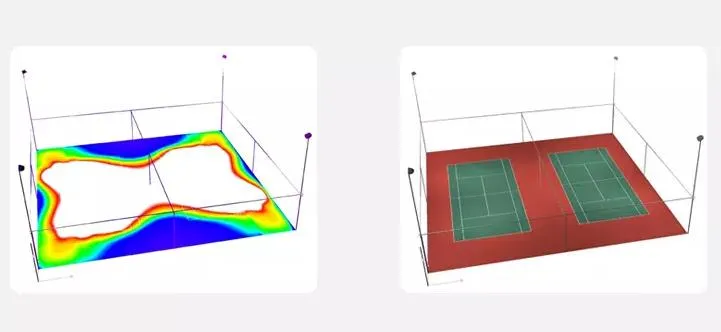

Dialux Simulation:
Our Service:
As A Professional LED street Light Manuafacturer We Promise
- Quick respond:For all your inquires, we will reply you in detail within 24 hours.
- Professional Lighting Proposal: a professional lighting proposal by our optical engineer is firmly good for your sale. Full range IES file, testing report provide ,Free Dialux simulation service
- Strong R&D Dept: Provide ODM/OEM service, Laser Engrave.
Quality Control
- Stability TEST: make sure 100% of the lamps aging test at least 48 hours.
- Lighting TEST: make sure 100% of the lamps could be lighted before packing.
- Drop TEST: make sure every single light have been well protected by box.
Trade Terms
- Flexible Payment term:L/C, D/A, D/P, T/T, Western Union, PayPal.
- Lead time: normally in 10~15 days after deposit received
- Sample policy: Samples are always available for each model
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
