              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              • Die Cast Aluminum LED Flood Light Garden Light Waterproof HousingDie Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              • Die Cast Aluminum LED Flood Light Garden Light Waterproof HousingDie Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              • Die Cast Aluminum LED Flood Light Garden Light Waterproof HousingDie Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              • Die Cast Aluminum LED Flood Light Garden Light Waterproof HousingDie Cast Aluminum LED Flood Light Garden Light Waterproof Housing

              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing

              Die Cast Aluminum LED Flood Light Garden Light Waterproof HousingModelFL22-600WFL22-900WFL22-1200WFL22-1500WRated power600W900W1200W1500WLamp bead typeSMD3737Number of lamp beads240PCS360PCS480PCS600PCSSerial-parallel6P20S6P20S6P20S6P20SOperating Voltage100-240V/ 277V AC, 50/60HzControl method0-10V ......

              Send Inquiry

              Product Description

              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing


              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing

              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              ModelFL22-600WFL22-900WFL22-1200WFL22-1500W
              Rated power600W900W1200W1500W
              Lamp bead typeSMD3737
              Number of lamp beads240PCS360PCS480PCS600PCS
              Serial-parallel6P20S6P20S6P20S6P20S
              Operating Voltage100-240V/ 277V AC, 50/60Hz
              Control method0-10V Dimming/DALI/DMX512, for option
              Power factor>0.95
              Light effect>120Lm/W
              Color rendering>70
              Color temperature4000K /5000K /5700K, for options
              Beam angleSymmetric 9°/15°/25°/40°, for options
              Lamp body size390x636x448mm575x636x448mm760x636x448mm948x636x448mm
              Lamp body materialDie casting ADC12 with powder coated + Tempered glass + PC lens
              Optional accessoriesLightning protector, metal protective cover, anti-glare cover, sight, etc.
              Light body colorRegular black, other colors can be customized according to customer requirements (quantity requirements)
              Protection levelIP66/IK08,10KV/20KV for options
              Operating temperature-40ºC~+50ºC
              Working humidity10%~90%
              Lifetime/Warranty period50,000hrs / 5 years

              ModelFL22-600WFL22-900WFL22-1200WFL22-1500W
              Rated power600W900W1200W1500W
              Lamp bead typeSMD3737
              Number of lamp beads252PCS378PCS504PCS630PCS
              Serial-parallel6P21S6P21S6P21S6P21S
              Operating Voltage100-240V/ 277V AC, 50/60Hz
              Control method0-10V Dimming/DALI/DMX512, for option
              Power factor>0.95
              Light effect>110LM/W@40° ,>100LM/W@60°
              Color rendering>70
              Color temperature4000K /5000K /5700K, for options
              Beam angleAsymmetric 40° or 60°, for options
              Lamp body size390x636x448mm575x636x448mm760x636x448mm948x636x448mm
              Lamp body materialDie casting ADC12 with powder coated + Tempered glass + PC lens
              Optional accessoriesLightning protector, metal protective cover, anti-glare cover, sight, etc.
              Light body colorRegular black, other colors can be customized according to customer requirements (quantity requirements)
              Protection levelIP66/IK08,10KV/20KV for options
              Operating temperature-40ºC~+50ºC
              Working humidity10%~90%
              Lifetime/Warranty period50,000hrs / 5 years

              ModelFL22-600WFL22-900WFL22-1200WFL22-1500W
              Rated power600W900W1200W1500W
              Lamp bead typeSMD5050
              Number of lamp beads324PCS486PCS648PCS810PCS
              Serial-parallel54P3S54P3S54P3S54P3S
              Operating Voltage100-240V/ 277V AC, 50/60Hz
              Control method0-10V Dimming/DALI/DMX512, for option
              Power factor>0.95
              Light effect>150Lm/W
              Color rendering>70
              Color temperature4000K /5000K /5700K, for options
              Beam angleSymmetric 30° or 60°, for options
              Lamp body size390x636x448mm575x636x448mm760x636x448mm948x636x448mm
              Lamp body materialDie casting ADC12 with powder coated + Tempered glass + PC lens
              Optional accessoriesLightning protector, metal protective cover, anti-glare cover, sight, etc.
              Light body colorRegular black, other colors can be customized according to customer requirements (quantity requirements)
              Protection levelIP66/IK08,10KV/20KV for options
              Operating temperature-40ºC~+50ºC
              Working humidity10%~90%
              Lifetime/Warranty period50,000hrs / 5 years
              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing

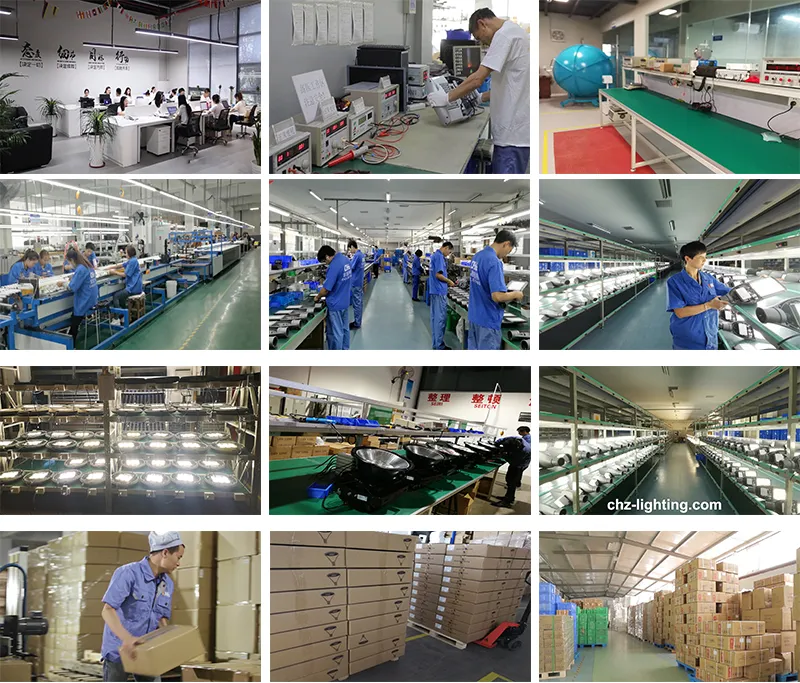

              Company Profile

              Shanghai CHZ Lighting was established in 2010 and is a high-tech enterprise engaged in the development, production, and sales of lighting products. The company has passed ISO9001: 2015 quality system certification, ISO14001: 2015 environmental management system certification, and ISO45001 occupational health and safety system certification.
              In terms of products, CHZ Lighting focuses on LED outdoor lighting. The company has always adhered to the high standards of "leading technology and leading quality", constantly developing new products, leading the trend of intelligence, insisting on the use of high-quality raw materials and advanced production technology, and focusing on the manufacture of each lamp. The main products have passed TUV, ENEC, CB, ROHS, UL, DLC, CE, SAA, and other international standards certification.
              In terms of service, the entire service process of CHZ lighting is rigorous and standardized; the sales team is experienced and full of vitality, from inquiry, design, quality management, mass production, transportation, after-sales and gift services to be patient, enthusiastic, professional and timely.
              In terms of social responsibility, CHZ actively donated money to charitable organizations such as Shanghai Jiading Nanxiang Welfare Institute and Tibet Children's Welfare Foundation, and was named "Caring Enterprise in Jiading District, Shanghai". In February 2020, the company boss personally drove to Hubei to donate masks, disinfectants, protective clothing, and other materials and was awarded the honor of "Advanced Individual in Fighting COVID-19" by Shanghai. CHZ is not only responsible for products, but also an excellent company responsible for society, the country, and the future.

              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing

              Our Advantages

              Our Service

              Die Cast Aluminum LED Flood Light Garden Light Waterproof Housing
              FAQ

              1. What is a general business process?
              Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service

              2. What is the warranty?
              A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.

              3. What is the payment period?
              A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
              3. What is the payment term?
              Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

              4. Can I add my logo on the product label?
              Answer : Yes, but order quantity is requested depending on different lights.


              5. I don't know which sty how many LED Street Light should I use, can you advise?
              Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

              6. Do you have any MOQ limit for led light order?
              Answer: Low MOQ, 1pc for sample checking is available .

              7. How do you ship the goods and how long does it take to arrive?
              Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

              8. We don't know how to install,can you help?
              Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

              9. How to deal with the faulty?
              Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
              Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.


              10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
              Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the facebook homepage.
