30W LED Flood Light Focus Luminaries
30w led flood light focus luminariesNominal Power10W20W30W50WLED Brand SMD2835LuminaireEfficacy ( lm/w )120120115115Lumen Output ( lm )1200240034505750DriverIntegrated LED driverInput VoltageAC 220-240V, 50/60HzLight Distributions110*110Color Temperature4000K, 5000KRatingClass I, IP66, IK08CRI80Pow......
Send Inquiry
Product Description

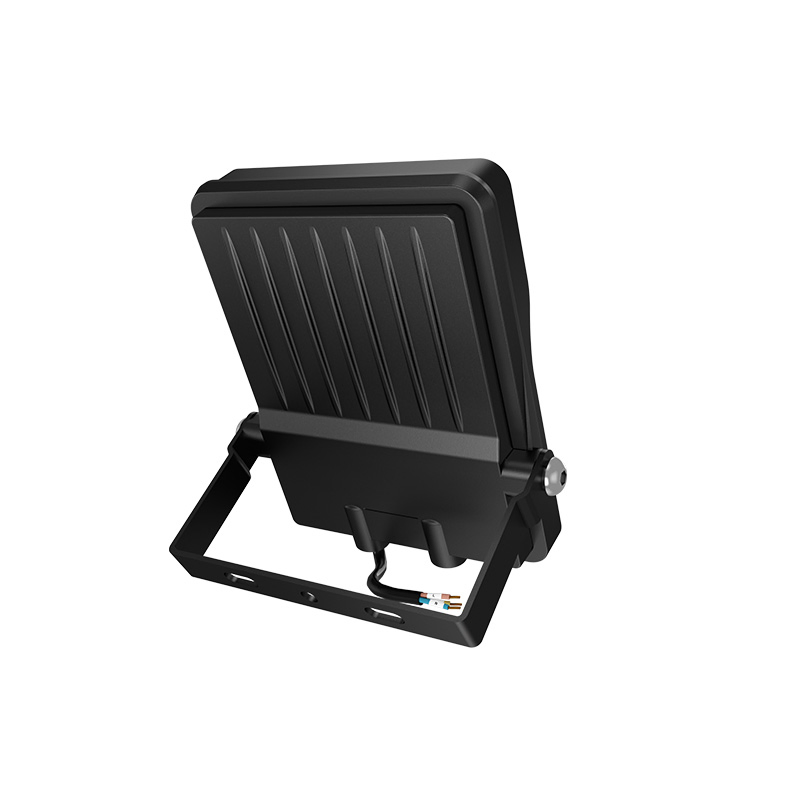

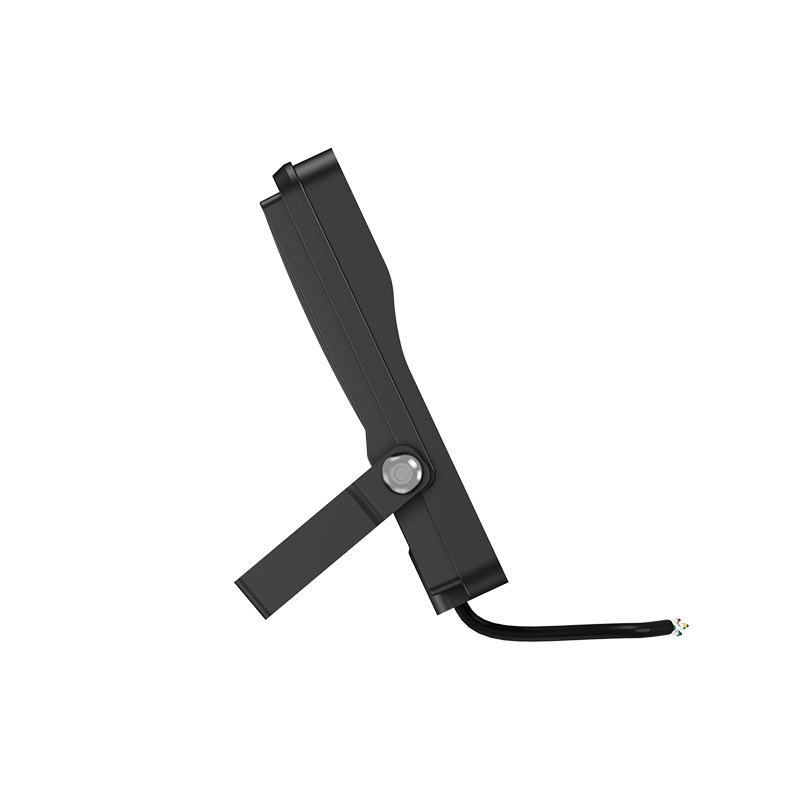

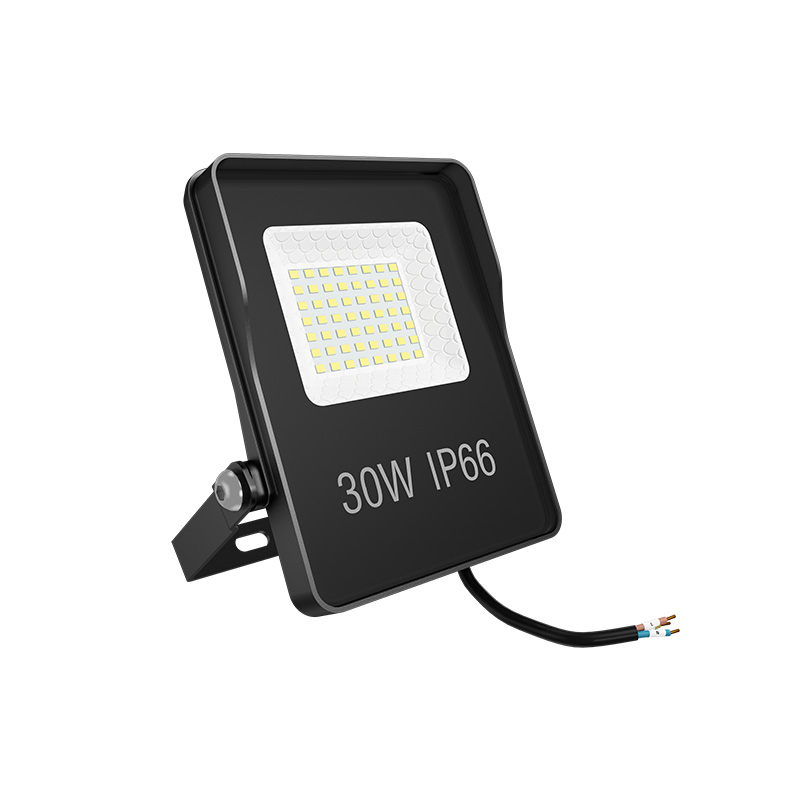

30w led flood light focus luminaries
| Nominal Power | 10W | 20W | 30W | 50W |
| LED Brand | SMD2835 | |||
| Luminaire Efficacy ( lm/w ) | 120 | 120 | 115 | 115 |
| Lumen Output ( lm ) | 1200 | 2400 | 3450 | 5750 |
| Driver | Integrated LED driver | |||
| Input Voltage | AC 220-240V, 50/60Hz | |||
| Light Distributions | 110*110 | |||
| Color Temperature | 4000K, 5000K | |||
| Rating | Class I, IP66, IK08 | |||
| CRI | 80 | |||
| Power Factor | > 0.95 | |||
| THD | <15 | |||
| SPD | 2KV | |||
| Lifetime(h) L70 at 25 °C | 50,000hrs | |||
| Working Environment | -40 ºC ~ +50 ºC, 10%~90%RH | |||
| Fixture Dimension(mm) | 111.7 x83 x27 | 137.1 x108.4 x27 | 160.7 x133.8 x31 | 206.8 x170.5 x31.8 |
| Fixture Weight (kg) | 0.2 | 0.3 | 0.52 | 0.82 |
| Packing Dimension (mm) | 333 x250 x208 | 358 x190 x315 | 348 x205 x300 | 368 x245 x235 |
| Packing Weight (kg) | 9.0 | 10.9 | 12.1 | 11.6 |
| Packing Type | 36units /ctn | 30units /ctn | 20units /ctn | 12units /ctn |
