200W/250W/ 300W /350W Super Bright Marine Grade Slim LED Spotlight/Floodlight/Searchlight with CE/EMC/RoHS/SAA/TUV for Outdoor Ocean Sea Boat Ship Vessel Harbor

Outdoor Marine Aluminum Alloy housing dimmable 0-10V or PLC dimmer control water-proof IP66
80watt 100watt 150watt 200watt 250watt 300watt 350watt 400watt 500watt 600watt  LED Flood Light 100-277V 50/60Hz or 18V-20V-24V-32VDC
Dimmable also for DALI or Triac dimmer with beam angle 4degree/8dgree/15degree/30degree... IK08
Fishing boat or deck lighting with Cree OSRAM SMD3030/5050 LEDs chip LED Marine Flood Light
Pure Aluminum alloy forming LED spotlight 80W 100W 150W 200W 250W 300W for outdoor marine Security lighting with 5 years warranty

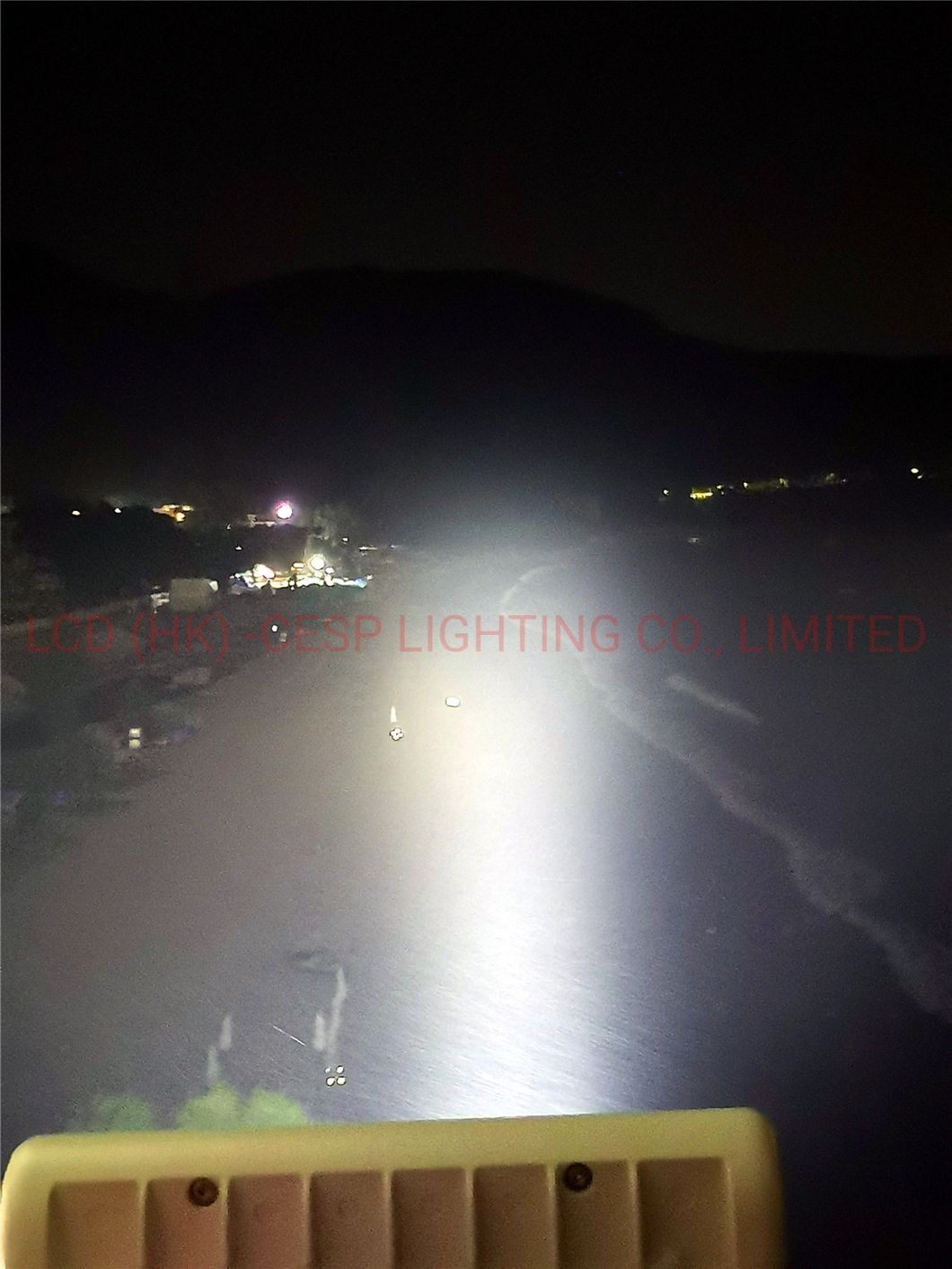

Narrow beam angle 7-8 degree searchlight Flat marine grade 80W 100W 150W LUMILEDs chip SMD505 IP66 IP67 LED Flood Light

Symmetric beam 7-8 degree + oval beam angle Area searchlight Flat IP67 LED Flood Light 80W 100W 150W up to 140-150lm/W


About LCD FA Series

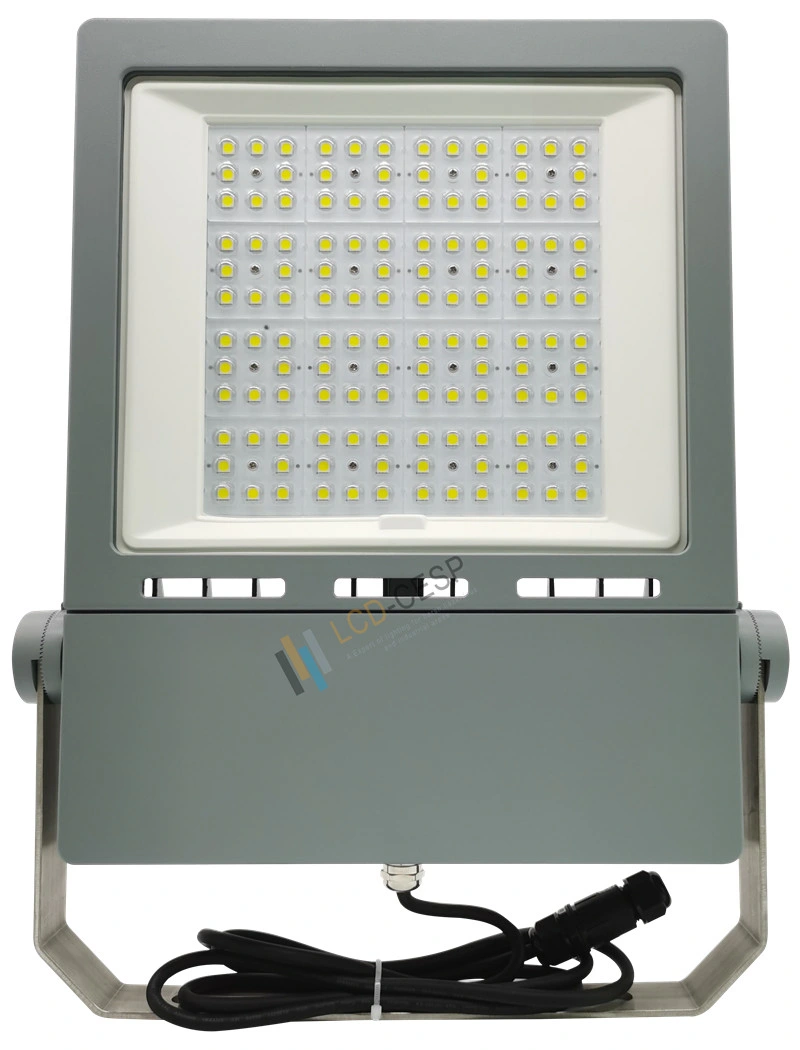

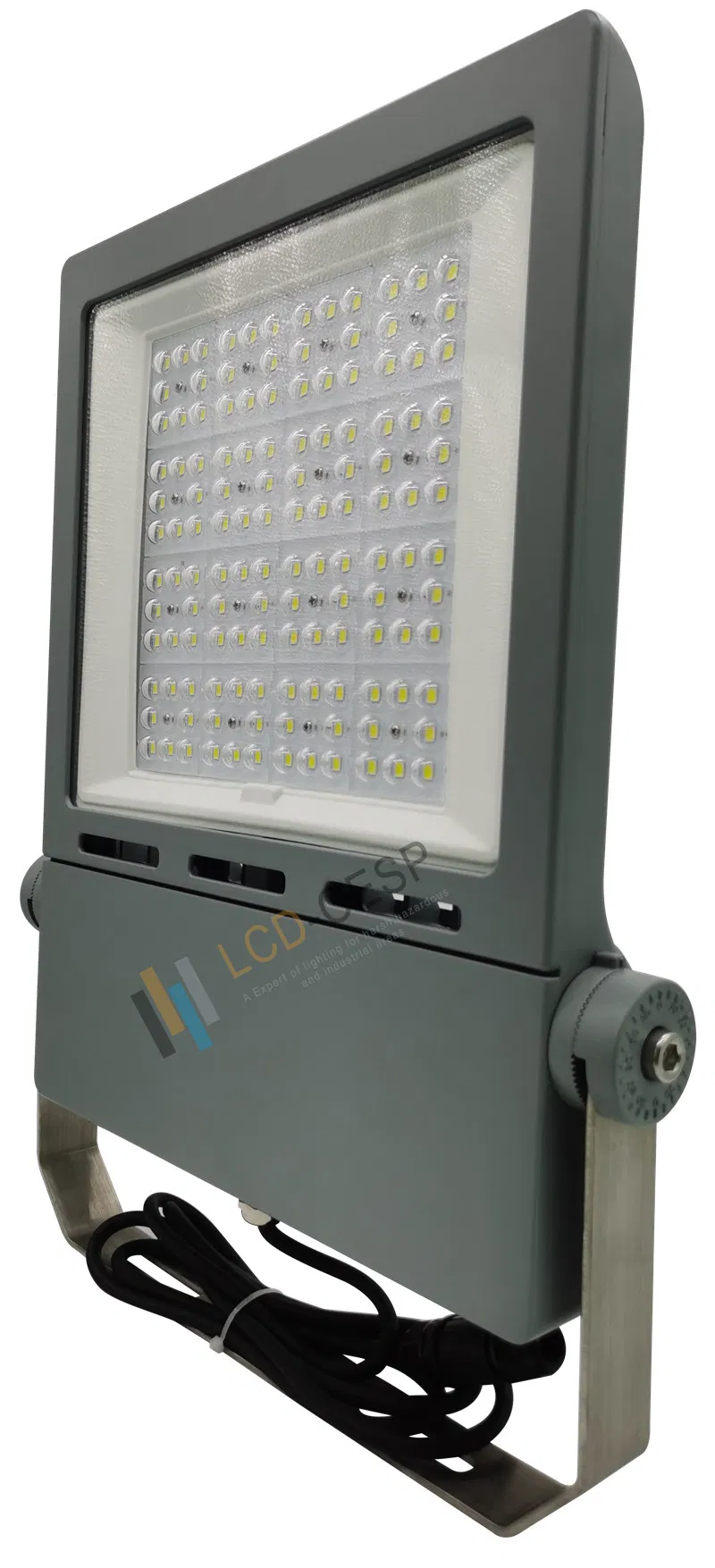

LCD LED Floodlight FA Series, a professional, powerful, energy saving replacement for high intensity discharge lamps or Halogen lamp. With a compact and modern design, Ph® SMD 5050 LED technology offers high brightness, a high lumen maintenance factor with MEANWELL driver and built in 3-4kV surge suppressor. We have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.

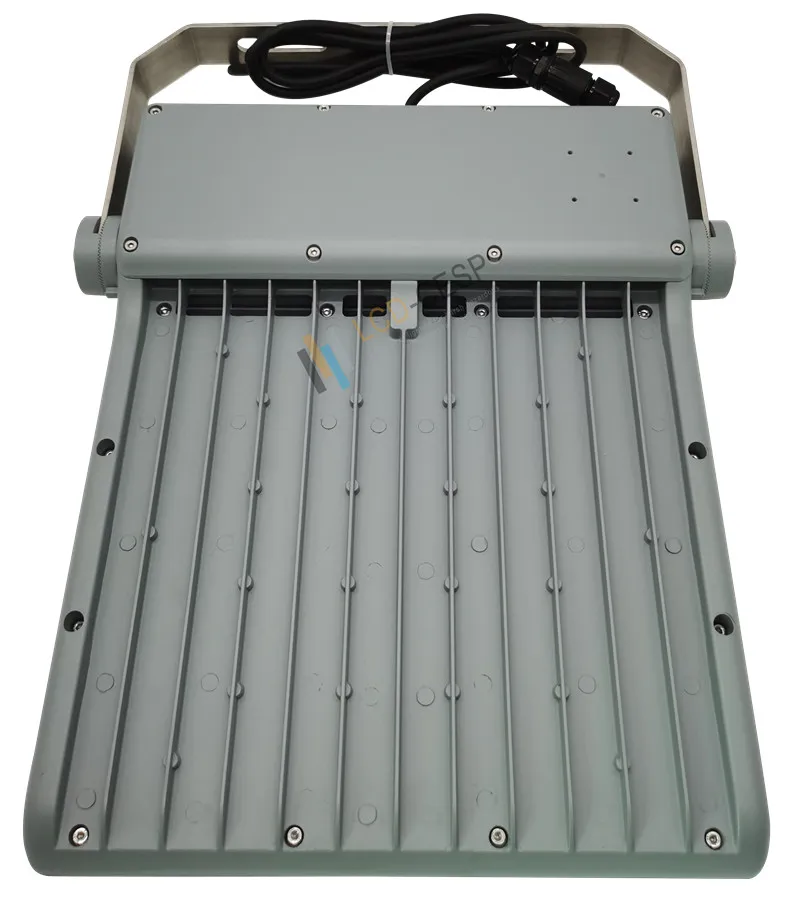

Strong housing made of white,grey or black die-cast aluminum, featuring high heat dissipation and superior aesthetics. Corrosion resistant with longer lifetime. Tempered glass, much stronger than regular glass, reduces the risk of injury caused by jagged glass shards. Impact resistant IK08 grade and protection rating IP66 IP67. Advanced heat sink design ensures LED does not exceed temperature ratings across all specifed ambient conditions. Universal voltage capacity 100-277V 50/60Hz or 12-32VDC.

Key Features:
• High luminous efficacy using high quality SMD3030 or Bridgelux SMD3030 LED chips
• Super slim rugged design (maximum depth 60mm)

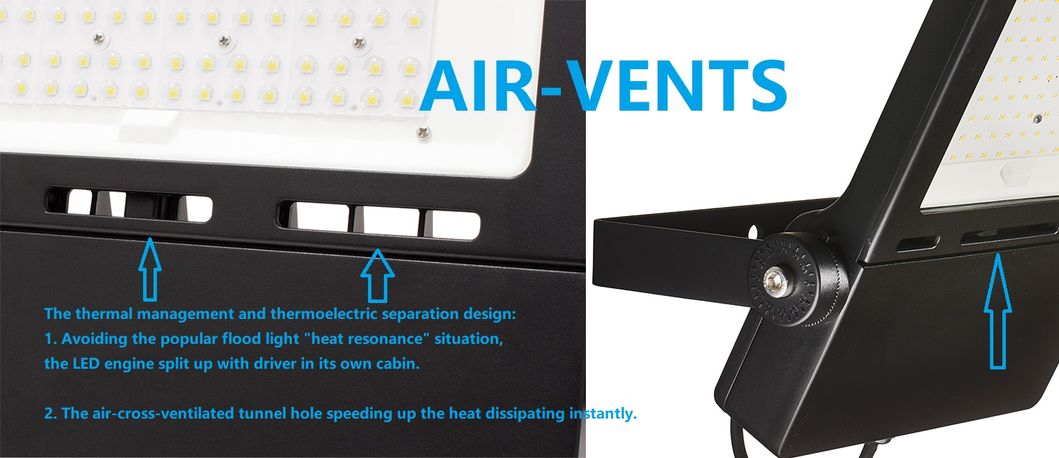

• Custom designed case for effective heat dissipation
• In house Meanwell or Ph LED driver technology
• Impact resistant tempered glass

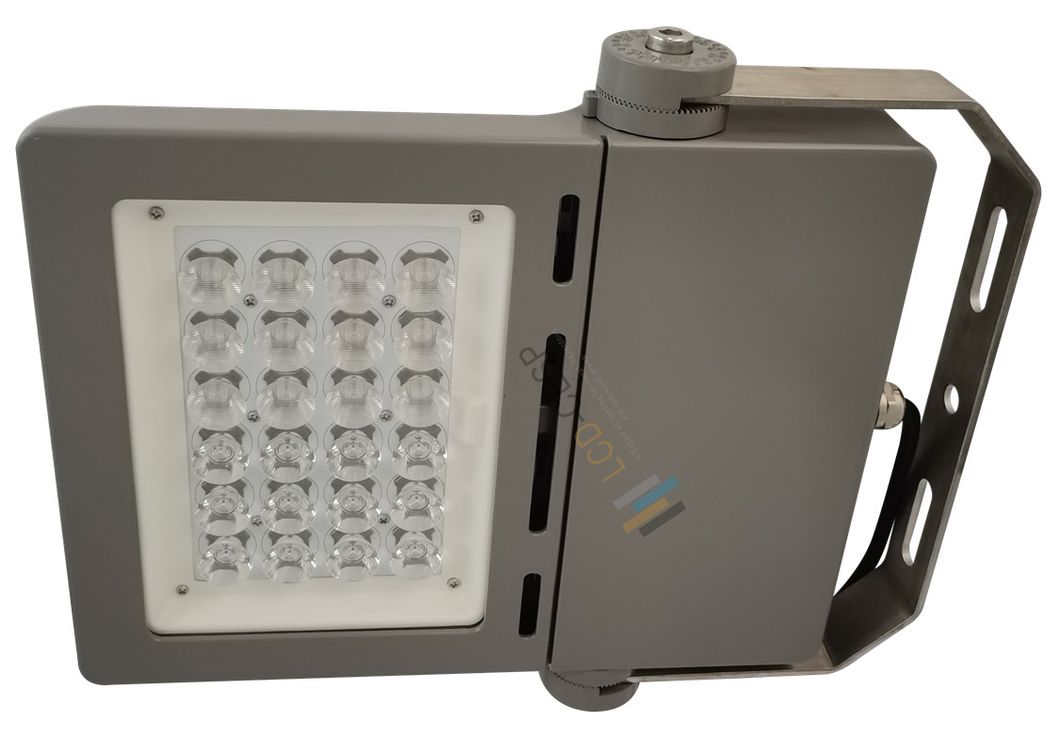

• Bracket designed with +/-160° angle with 5° interval locking system

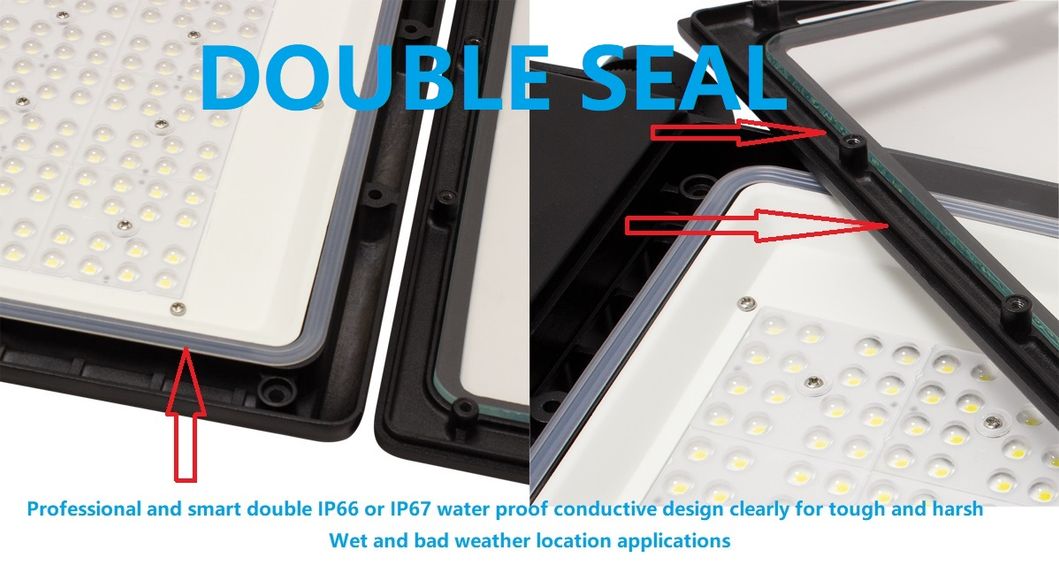

• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP66,IP67 or IP68 rating
• 5-7 years warranty





Ideal for applications

such as

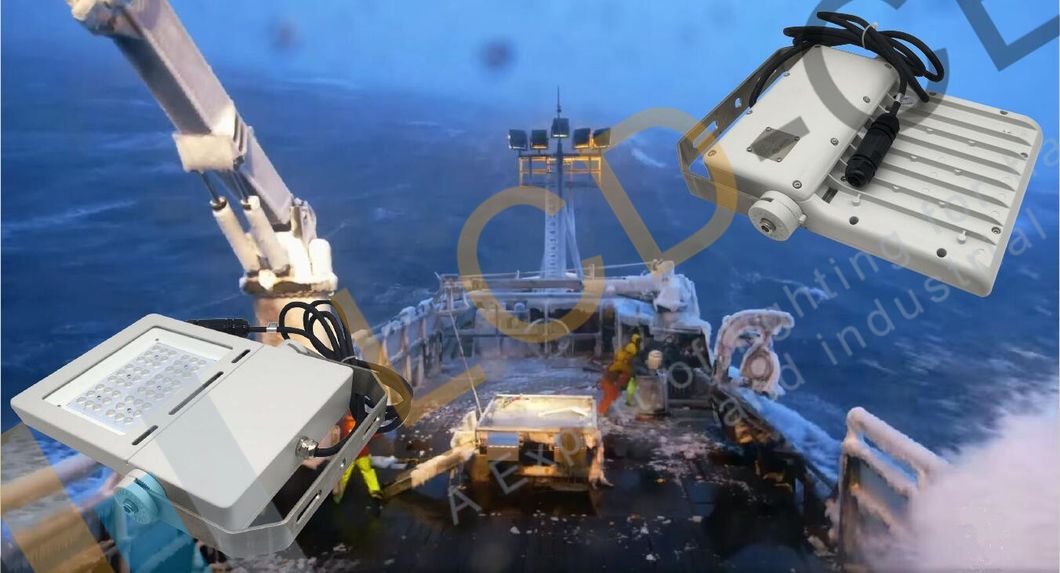

1. FISH PROCESSING LIGHTING, Maritime Applications, Crabbing boat, Seiners boat, Trawler boat fishing lighting



2. Or lansdcapes, accents, security and general wide area lighting for commercial and residendial use.




Details

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

Product DIMENSIONS
AxBxC (mm ):

Weight (kg ):

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Copper free outdoor Pure Aluminum housing perfect thermal management Meanwell & Ph dimmable driver 0-10V water-proof IP65
100 Watt LED Flood Light 110-277VAC 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 15000lm IK08
High way road or area lighting with Cree OSRAM SMD3030 or SMD5050 LEDs chip for playground Light or working site light
High tech pure Aluminum extruded LED spotlight 100W for outdoor Security lighting with 5-7 years warranty

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Feature

1. A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
2. Low lifetime-cost Reduce power consumption and free maintenance
3. Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.

Product Specification review

A simple, durable, reliable and great thermal management and efficient LED floodlight

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

- Car parking lighting

- Road & billboard lighting

Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.




Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking

Installation review

HYLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.

Outdoor SMD3030 Cool White 6500K 100W LED SMD Flood Light

LED SMD flood light 6500K chip Die-cast aluminum alloy 100w for security Lighting

Product data

Eagle FS series is designed to meet the requirements of a wide range of floodlighting applications such as public area lighting,car parking,billboard,security,work site etc. FS Flood makes sure you can choose the exact number of fixtures you need for your application. Incorporating extremely high-efficiency optics and LEDs OSRAM chip and Meanwell driver, you get a highly competitive solution offering an outstanding lux/usd dollar ratio and energy savings of up to 75%. Those range choice of optics ensures maximum application coverage. FS Flood is really easy to install − you simply plug it in and select the best option for your needs. Perfect for replacing traditional lamp meanwhile saving money and saving time.

General Information
Lamp family code : LCD-FS-013 / 015 [ 1300 lm to 1600 lm]
Light source color : warm white 3000K , neutral white 4000K , cool white 6000K
Light source & optic lens replaceable : Yes [ Cree , Bridgelux , OSRAMs / different optic lens ]
Number of gear : one bracket
Driver/power : Meanwell driver Or LCD brand driver
Optical cover type : 4mm thick Flat temper glass
Luminaire light beam spread : 25°, 30°, 60° , 90°, 120° , TYPE I , TYPE II , TYPE III , TYPE IV , TPYE V , Asymmetric 45°
Protection class : IEC Safety class I
CE mark : CE mark
Warranty period 5 years
Optic type : outdoor & indoor Symmetrical & Asymmetrical
RoHS mark : RoHS mark
Light source engine type : LED

FS Family

Light Technical
Upward light output ratio 0
Standard tilt angle posttop 0°
Standard tilt angle side entry 0°

Operating and Electrical
Input Voltage 100 to 277 VAC or 12-28 VDC
Input Frequency 50 to 60 Hz
Inrush current 340 A
Inrush time 0.025 ms
Power Factor (Min) >0.95

Controls and Dimming
Dimmable on requests 1-10V , DALI , Triac

Mechanical and Housing
Housing Material Aluminum die-cast 6063
Reflector material Polish Aluminum
Optic material Acrylate
Optical cover 4mm temper Glass
Fixation material corrosion resistant powder coating carbon Steel
Mounting device Mounting bracket adjustable
Optical cover Flat
Optical cover Clear

Approval and Application
Ingress protection code IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK08 [ 5 J vandal-protected]
Surge Protection Luminaire surge protection level >2 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux) 1300-1600 lm
Luminous flux tolerance +/-6%
Initial LED luminaire efficacy 130-160 lm/W
Init. Corr. Color Temperature 3000 K 4000K 6500K
Init. Color Rendering Index ≥75
Initial chromaticity (0.380, 0.390) SDCM <5
Initial input power 10 W
Power consumption tolerance +/-10%

Over Time Performance (IEC Compliant)
Driver failure rate at 7000 h 0.5 %
Useful life L80B10 100000 h
Lumen maintenance at useful life of 100000 h,at 25 °C
Application Conditions
Ambient temperature range -30 to +45 °C
