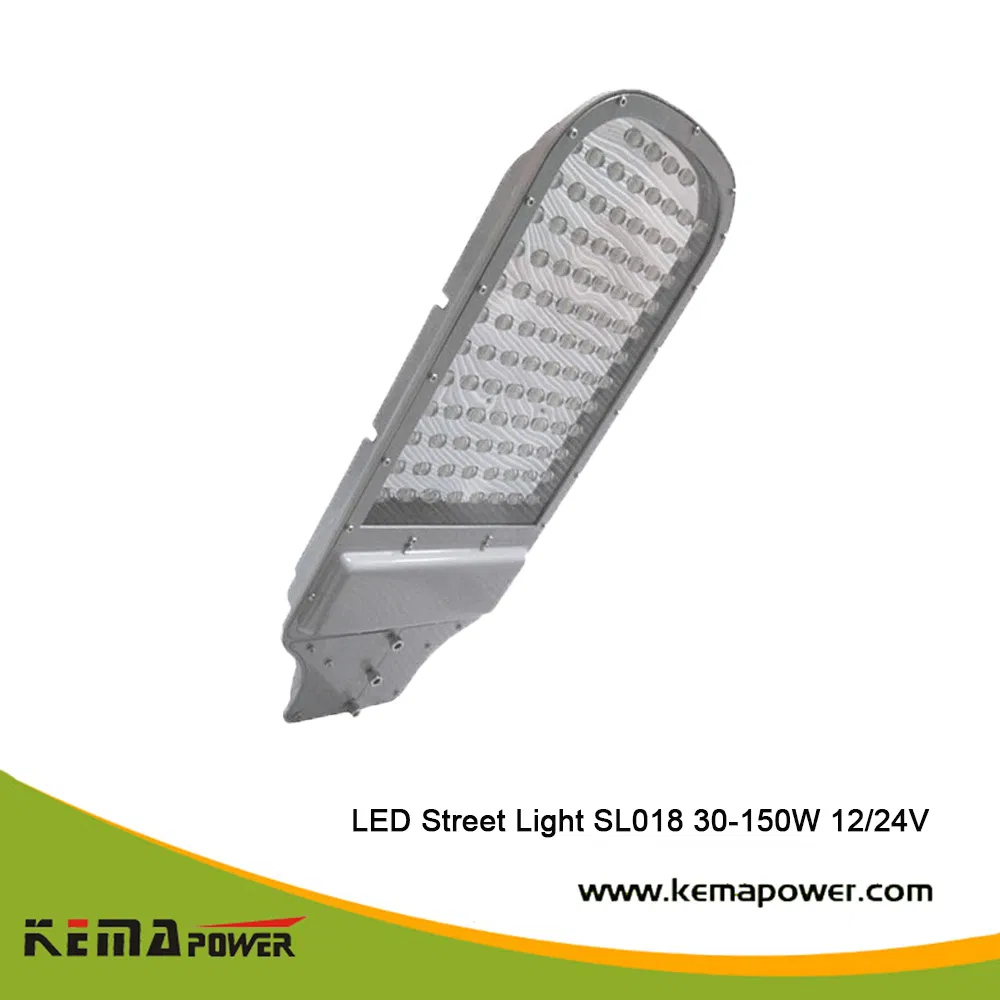

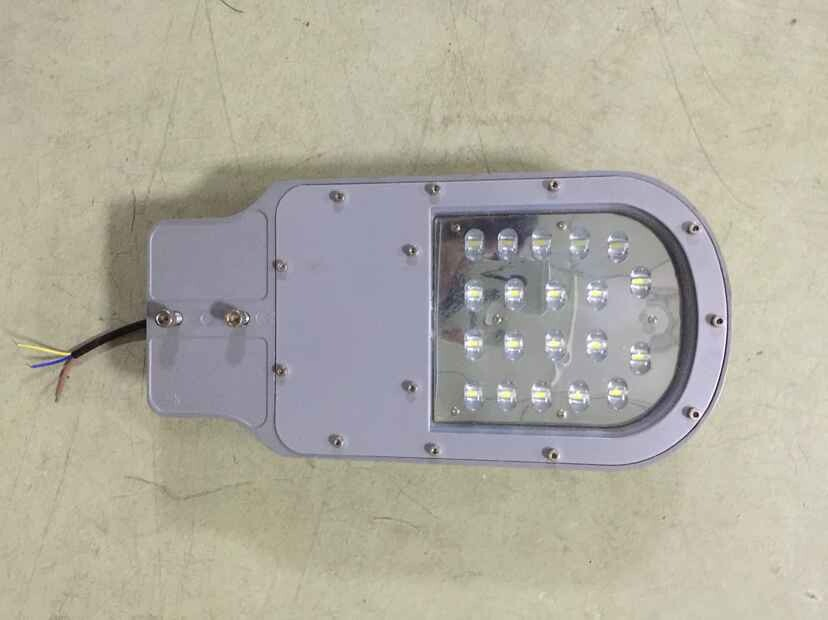

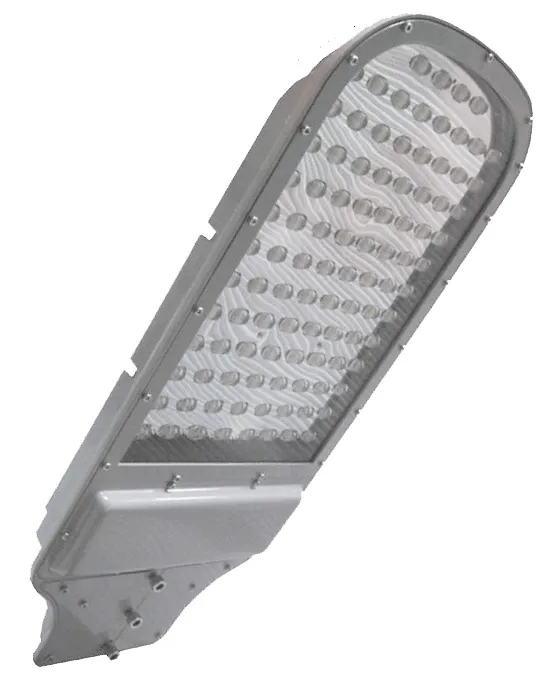

SL018 High Efficiency High Lumen Dimmable Waterproof Outdoor IP65 COB LED Street Light
SL018 High efficiency high lumen dimmable waterproof outdoor IP65 cob led street lightKEY FEATURES* High bright LED, LED Street Light* Input 85-265VAC or 12/24VDC* Light body: Die-casting aluminum housing* Mask: high transmittance, high quality tempered glass* Driver with CE, silicone perfusion, wat......
Send Inquiry
Product Description
KEY FEATURES
* High bright LED, LED Street Light
* Input 85-265VAC or 12/24VDC
* Light body: Die-casting aluminum housing
* Mask: high transmittance, high quality tempered glass
* Driver with CE, silicone perfusion, waterproof heat stronger

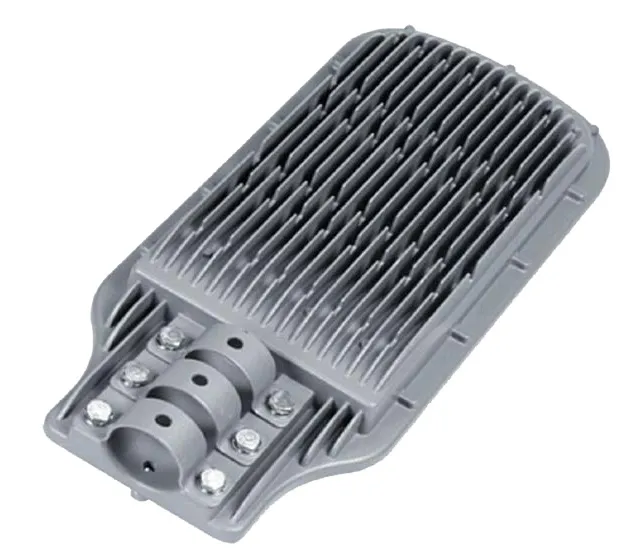

* Radiator: Integration aluminum + convection design
* Power cord: bold industrial grade copper wire
* Waterproof: IP65
* Whole light luminous efficacy ≥85lm/w
* lifespan >50,000 hours
* CCT2700K-7000K
* Great illuminating angle: 120°
* Aging test at least 12 hours for all LED light source, driver before shipment
* Warranty 3 years
Technical Specifications
Model | SL-018-30 | SL-018-40 | SL-018-50 | SL-018-60 | SL-018-80 | SL-018-100 | SL-018-120 | SL-018-150 |
POWER | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W |
DRIVER | Standard CE | Standard CE | Standard CE | Standard CE | Standard CE | Standard CE | Standard CE | Standard CE |
LED CHIP | Epistar chip | Epistar chip | Epistar chip | Epistar chip | Epistar chip | Epistar chip | Epistar chip | Epistar chip |
LED BEAD | 30*1W | 40*1W | 50*1W | 60*1W | 80*1W | 100*1W | 120*1W | 150*1W |
CASING MATERIAL | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
ANGLE REGULATION | No | No | No | No | No | No | No | No |
VOLTAGE | AC95-240V, | AC95-240V, | AC95-240V, | AC95-240V, | AC95-240V, | AC95-240V, | AC95-240V, | AC95-240V, |
FREQUENCY | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
POWER FACTOR | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
LUMINOUS FLUX | 85-90 | 85-90 | 85-90 | 85-90 | 85-90 | 85-90 | 85-90 | 85-90 |
CORRELATED | 2700-7000K | 2700-7000K | 2700-7000K | 2700-7000K | 2700-7000K | 2700-7000K | 2700-7000K | 2700-7000K |
COLOR RENDERING | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
BEAN ANGLE | >120° | >120° | >120° | >120° | >120° | >120° | >120° | >120° |
PROTECTION | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
LIFE SPAN | >50000h | >50000h | >50000h | >50000h | >50000h | >50000h | >50000h | >50000h |
WARRANTY | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
AMBIENT HUMIDITY | <95% | <95% | <95% | <95% | <95% | <95% | <95% | <95% |
AMBIENT TEMP. | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC |
Shell color | silver grey, | silver grey, | silver grey, | silver grey, | silver grey, | silver grey, | silver grey, | silver grey, |
PCS/CARTON | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
PRODUCT SIZE (mm) | 480*200*70 | 480*200*70 | 575*242*60 | 575*242*60 | 605*282*60 | 670*302*60 | 783*350*71 | 783*350*71 |
PACKING SIZE (mm) | 490*210*100 | 490*210*100 | 585*255*100 | 585*255*100 | 610*295*100 | 610*295*100 | 800*370*100 | 800*370*100 |
N.W.(kg) | 3.65 | 3.65 | 7.7 | 7.7 | 8.8 | 8.8 | 9.2 | 9.7 |
G.W.(kg) | 3.95 | 3.95 | 8 | 8 | 9.1 | 9.1 | 9.5 | 10 |
REMARK | 1.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need. | |||||||
2.CCT: Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cool white(CW) 6000-7000K | ||||||||
Application area

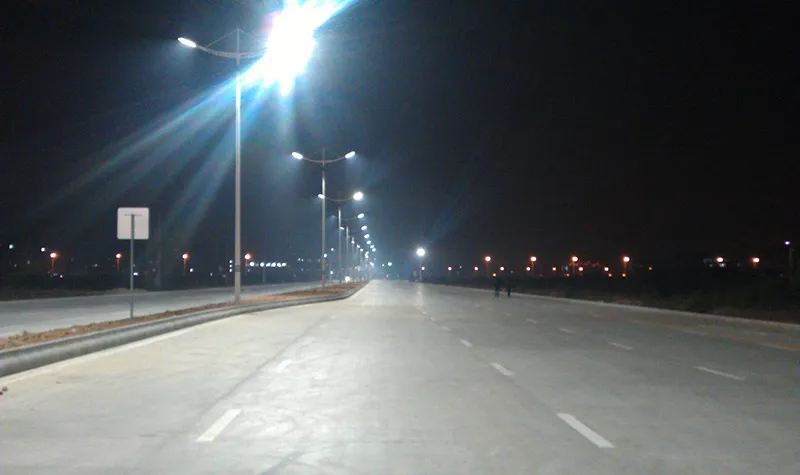

Scenic sport, Park , outdoor parking , rural roads , provincial road, state road
PRODUCT
Solar LED Street Light
SL01830w/40w/50w/60w/80w/100w/120w/150w/180w
Why Choice us ?
15 years rich experience manufacturer, 8000 square meter,200 worker
15 Engineer keep to improve design and supply new products
7 QC to controller the Full process,100% inspection before shipment
TOP 5 manufacturer,Large batch production to guarantee competitive price
We are the only manufacturer who can sign "Quality Warranty"&"On Time Delivery Warranty" with client.
One of the Few Supplier whom have factory to make the Key Products and also supply Complete set system design and installation supporting
Support OEM/ODM service with LOW MOQ!
10 years experience in international bidding together with dealer.
Annually train to dealer office or in factory about design/installation and maintenanc
FAQ:
1.Are you factory or trade company?
We have two Factories in China. We make UPS/Inverter/Battery in Foshan city which is close to Guangzhou. We make Solar Panel in Ningbo city .
2.How to Collect the goods together from Two Factories ?
We will collect the goods together. The shipment from Ningbo or Guangzhou.
3.How can I get your pricelist?
Send an enquiry about what you need ,our sales will reply u within 12hours.
4.Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality.
5.Any guarantee for your products?
One year or two years for electronic products and battery. 10 years for solar panel. details we will promise in the Performa Invoice .
6.How about the delivery time?
Usually for sample order within one week, for mass order 10-30days.
7.Do u support OEM/ODM service?
We have experienced R&D team, welcome to place OEM/ODM orders.
8.Payment terms, any convenient and safe way for our buyers?
T/T,W/U or LC options. Your money will be in safe, your business will be in safe!
