Product Description
Professional China Manufacture of 120W 180W LED Street Lights
| Input Voltage | 100 ~ 277Vac |
| Input Frequency | 50 / 60Hz |
| Power Factor (PF) | 0.95 |
| Surge Protection Level | 10kV line-earth |
| Operating Environment | -40ºC~ +50ºC, 10% ~ 90% RH |
| CCT | 3000/4000/5000/5700K |
| CRI | ≥70 |
| Housing | Die-cast Aluminum |
| IP (LED Light Engine) | IP68 |
| IP (Engine Compartment) | IP66 |
| IP (Electrical Compartment) | IP66 |
| Impact Protection Level | IK08 |
| Warranty: | 5 Years Limited |
| Model | Rated Power | Efficiency LM/W |
| SN-T65N1 | 60 | 145 |
| SN-T65N2 | 120 | 155 |
| SN-T65N3 | 180 | 155 |
| SN-T65N4 | 240 | 155 |

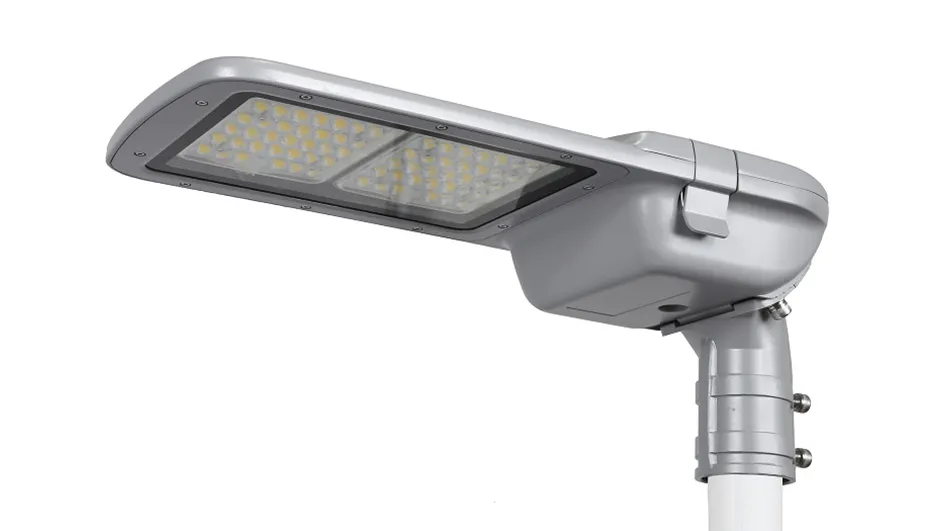

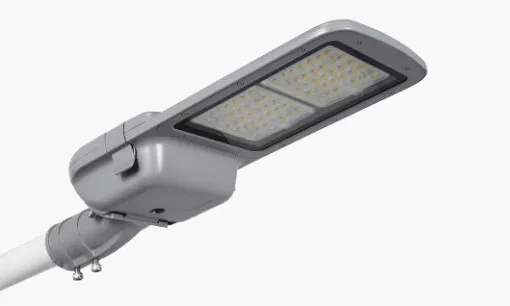

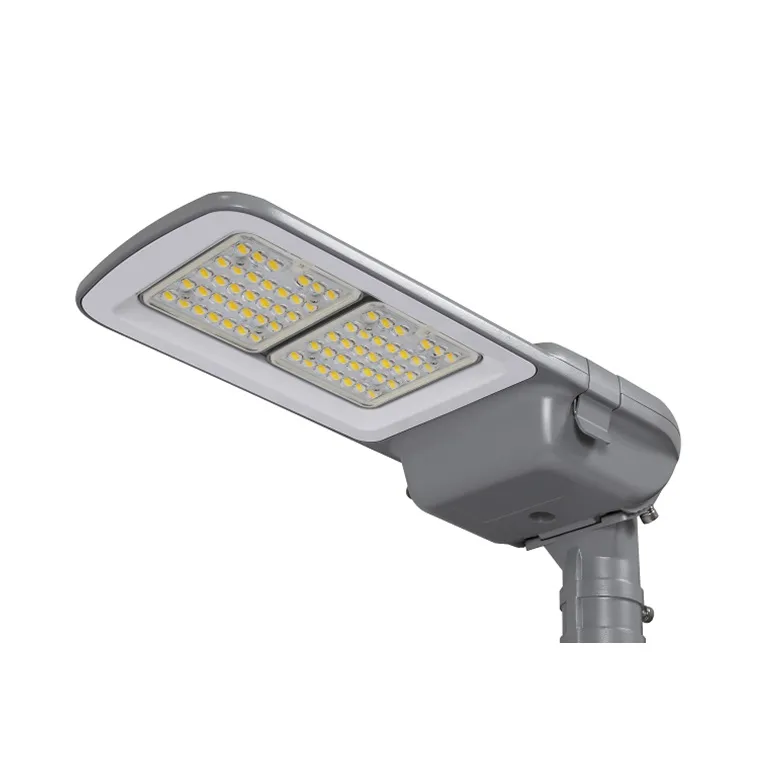

SN-T65 LED Street Light is better than normal LED lights for its large number light sources. Which can be different with specific model and enables different light intensity. Also, with the help of its advanced chip, the speed of it to emit light would be much better than other LED street lights in the market. And the color rendering index of SN-T65 LED Street Light is higher than many other lights, helping drivers to identify the different signs correctly and reduce the incidence of traffic accidents effectively. What's more, SM-T1M LED Street Light is competitive for its outstanding working ability against harsh environments such as heavy rain, low temperature, and so on.
Features:
· Latches provide easy, tool-less access to the electrical compartment.
· Unique patented IP68 (highest protection level) LED light engines.
· IP66 rated engine compartment sealed with tempered glass.
· Ergonomic and dedicated lighting distributions are available for various roadway applications.

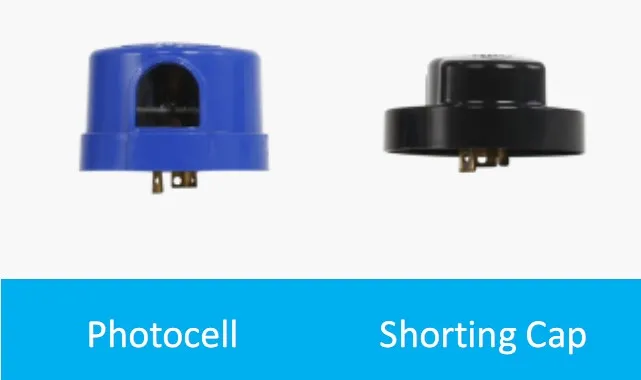

· Optional NEMA receptacle & photocell/shorting cap
Applications
Street lighting, park lighting, roadway lighting, path lighting...

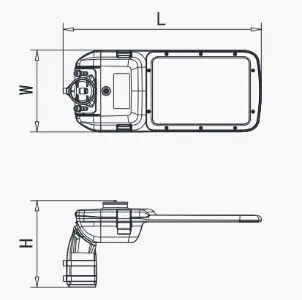

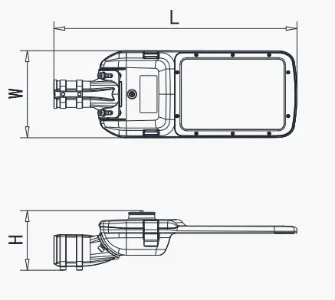

Dimensions
| Model | L (mm) | W (mm) | H (mm) | N.W(kg) |
| SN-T65N1 | 540 | 240 | 165 | 4.5 |
| SN-T65N2 | 670 | 240 | 165 | 5.4 |
| SN-T65N3 | 735 | 310 | 165 | 7.1 |
| SN-T65N4 | 835 | 310 | 165 | 8.2 |
| Model | L (mm) | W (mm) | H (mm) | N.W(kg) |
| SN-T65N1 | 450 | 240 | 165 | 4.5 |
| SN-T65N2 | 580 | 240 | 165 | 5.4 |
| SN-T65N3 | 645 | 310 | 165 | 7.1 |
| SN-T65N4 | 745 | 310 | 165 | 8.2 |

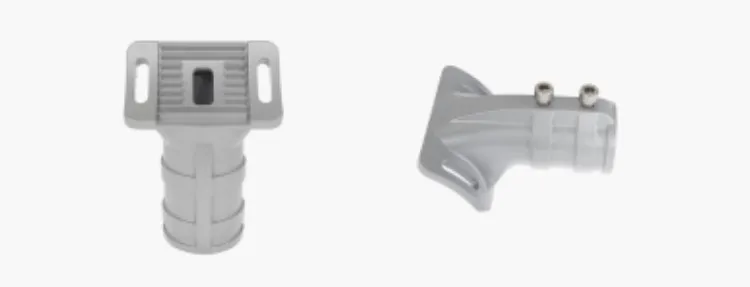

| Model Name | Mounting O.D. (mm) | Max. Mounting Depth (mm) |
| L50 | Φ40~Φ50 | 90 |
| L60 | Φ55~Φ65 | 100 |
| L70 | Φ66~Φ76 | 100 |
