Module Design 150W LED Parking Lot Lightings with 165lm/W
Module Design 150W LED Parking Lot Lightings with 165lm/WZGSM H5 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illuminat......
Send Inquiry
Product Description
Module Design 150W LED Parking Lot Lightings with 165lm/W

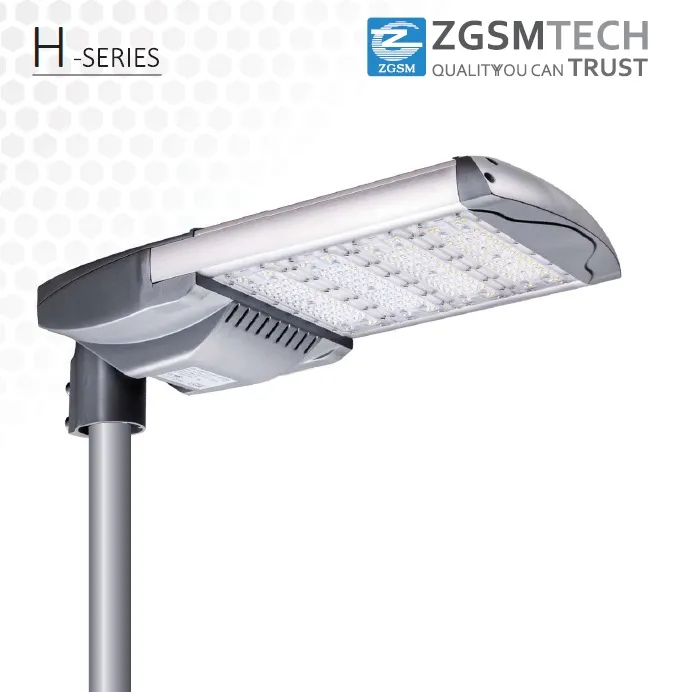

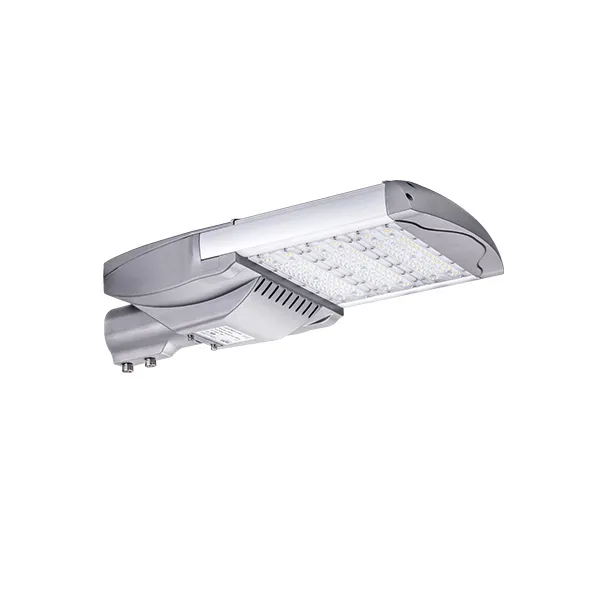

ZGSM H5 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Features:
1. LED's maintain flux is up to 130 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 90 - 305V AC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under conditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
ZGSM H5 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Features:
1. LED's maintain flux is up to 130 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 90 - 305V AC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care
| Specifications | |
| Model | ZGSM-LD150H5 |
| LED Brand | LUMILEDS® LUXEON 3030 |

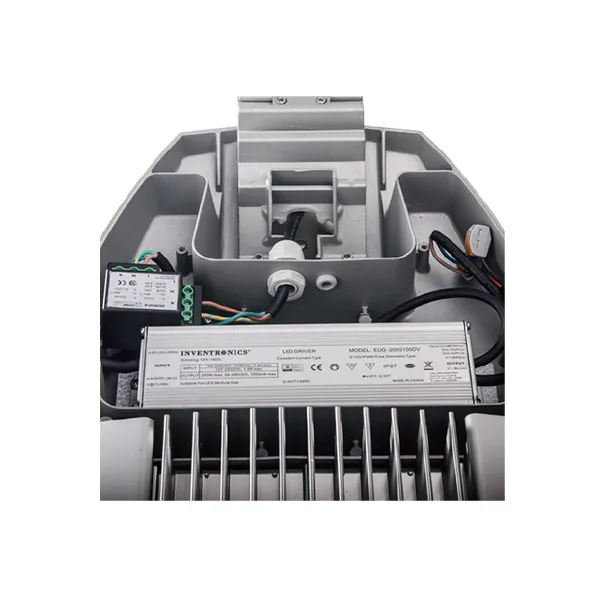

| Driver Brand | Meanwell HLG series/ Inventronics |
| Norminal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130 lm /w |
| Lamp Rated Lumen output | 19,500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV Short |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 577 x316 x136 mm |
| Fixture Weight | 7.3 kg /16.1 lbs |
| Packing Dimension | 630x370 x200 mm |
| Packing Weight | 8.6 kg /19.0 lbs |
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under conditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
