At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.

Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
JYL05L SERIES LED STREET LIGHT 180W

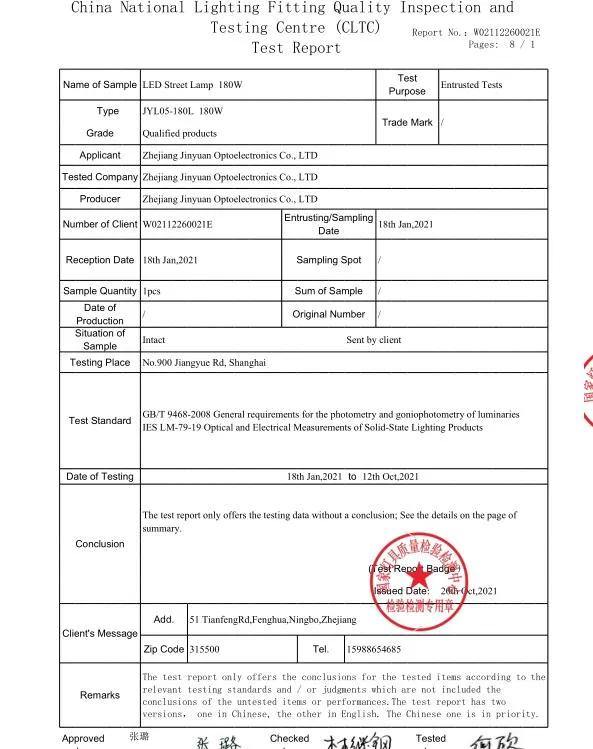

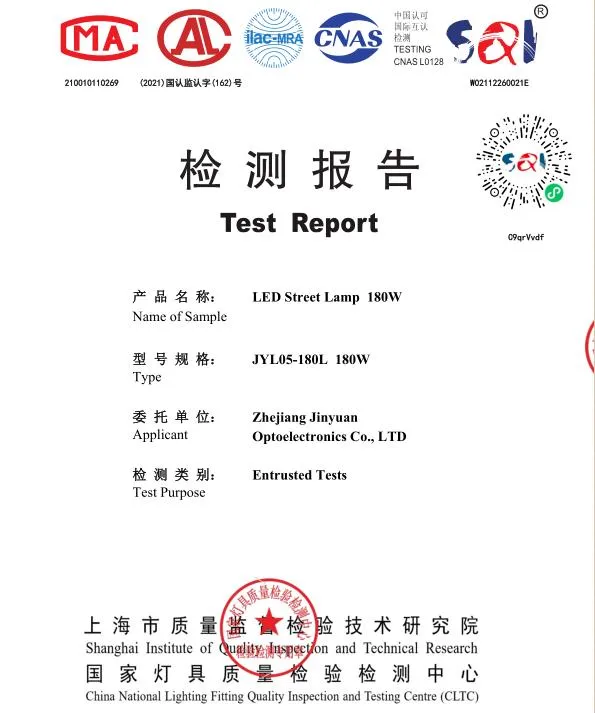

We already have the test report for 6000h lumen maintenance 100.5%
This leds made by 64pcs high performance 5050 SMD; Total lumen 26529lm. light efficiency 145.7lm/w;

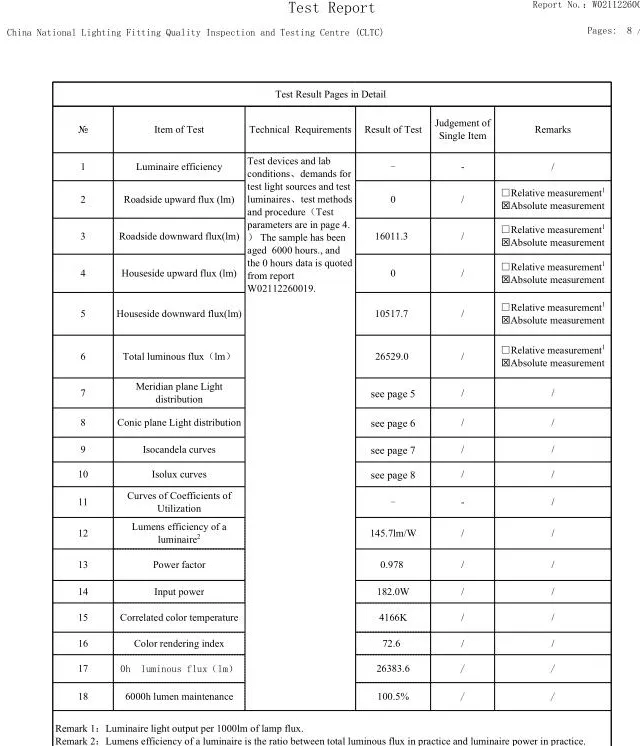

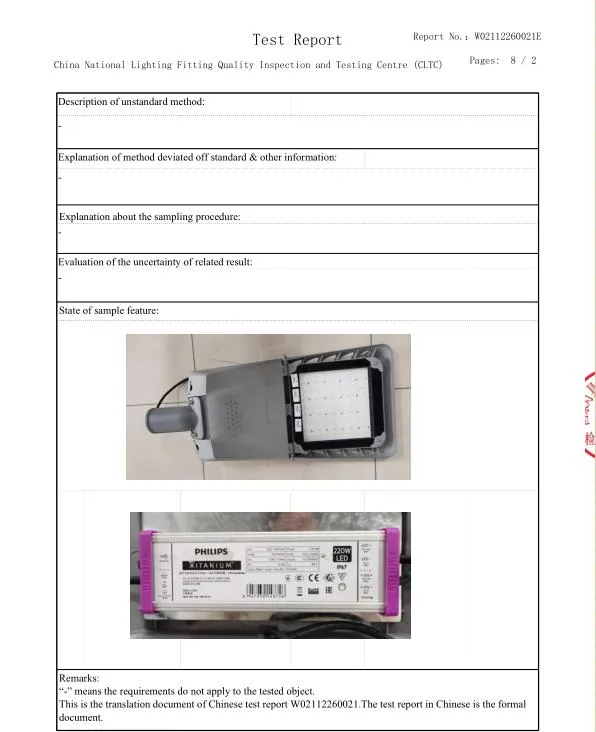

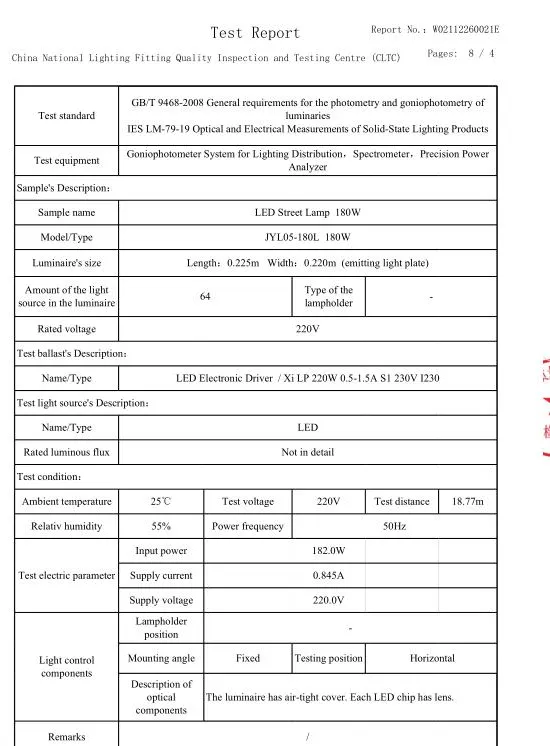

Below is the test result:
Long Life Span 6000h No Decay LED Street Light

Long Life Span 6000h No Decay LED Street Light

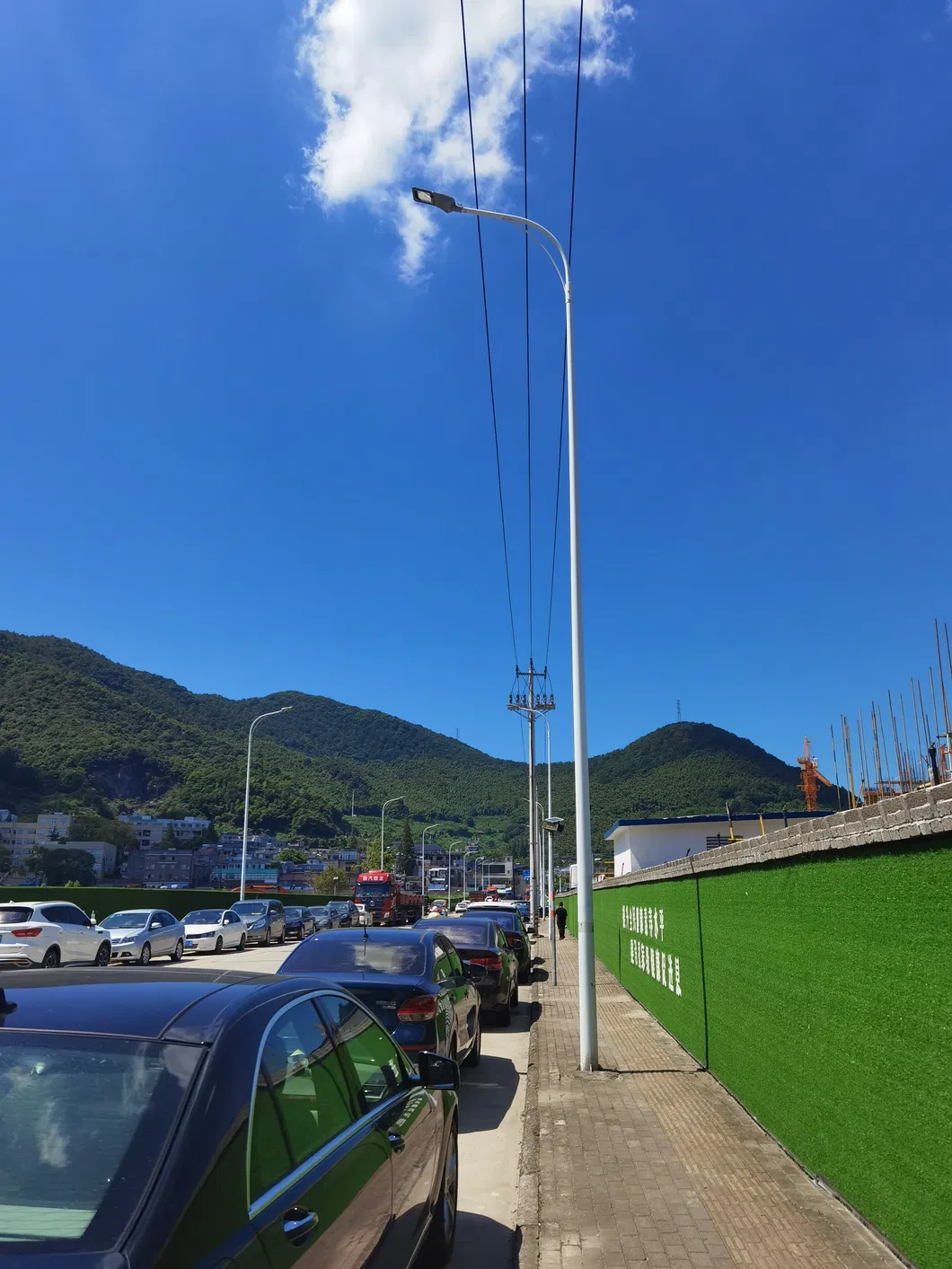

I has made some samples for one of my customer.
Here is the data for packing:
Carton size: 75*39.5*10.8CM
Gross weight: 8.97kg/pc
Pallet weight: 5.855kg
60cartons 2Pallets, size: 0.8*1.2m

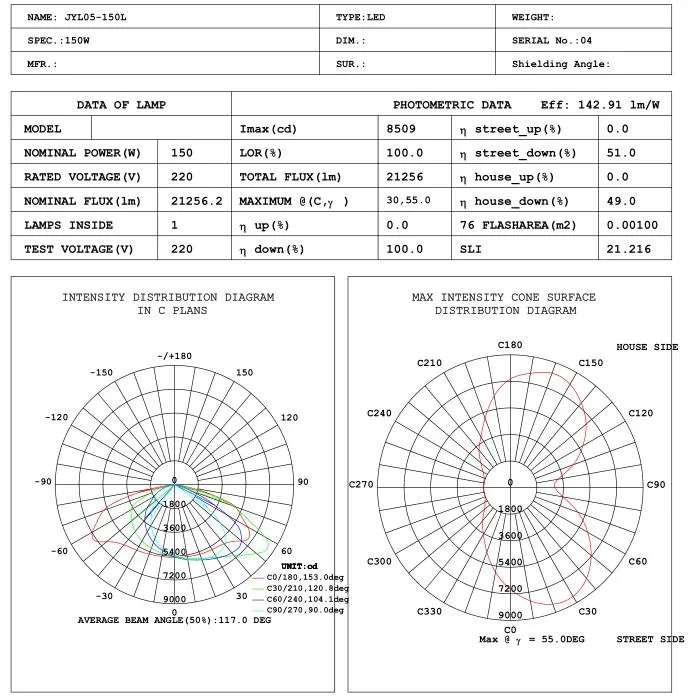

Here is the test report for 150W, 200W will have similar brightness
Long Life Span 6000h No Decay LED Street Light

Please contact us for more details. we are happy to share all information with you.

Long Life Span 6000h No Decay LED Street Light

Jinyuan 05L series model can make 150-240W.
Product Description:

High performance design with multi-chips package 5050 LED source and exclusive Lens
Type II, III lens optional Uniform light distribution apply to different outdoor project
+/-10° angle adjustable and applicable different mounting arm
Photocell sensor and power-off protection socket design are available
Dimming and smart lighting system available upon request
Vibration resistant and surge protection 10KV/20KV

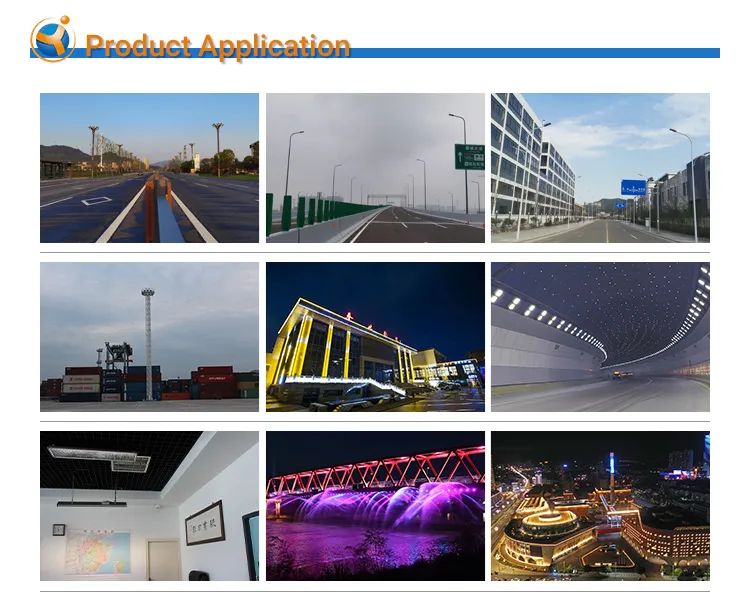

Apply to highways, city roads, parks, airports and outdoor venues

Products characteristics:

Classification	Project Name
Model	Product Name	LED Street Lamp
	Model	JYL05L
	Power	200W
	Size
	Working Temperature	-30~45ºC
	Control Mode	/
	Control Parameters	/
	Application	High-speed road,City road,Country road etc.
	Installation	Screw Fixed (304 Stainless steel Screw)
Standard	Standard	GB7000.1-2015
	Insulation Class	CLASS I
	IP Rating	IP65
	Product Certification	/
	Warranty	3/5years
Main Parts	Hosuing Material	Die-casting Aluminum
	Qty of Chips	64pcs
	Optical Material	Optical PC Lens
	Product Color	black white grey other:
Optical Parameters	Beam Angle	70*150
	luminous efficiency	≥140LM/W
	Color Temperature (CCT)	3000K/4000K/5000K/5700K/6500K
	CRI	≥70
Light Source	Chip brand	optional
	Chip Model	5050
	LED Type	SMD
Electrical Equipment	Driver Brand	MOSO/Meanwell/Inentronics and some other brand
	Light Source Life	30000H
	Power Efficiency	85%
	Power Face	90%
	Input Voltage	AC90-305V
Package Parameter	Inner Size
	Carton Size
	Weight(KG)	/
	Annex
	Package System	carton wooden pallet other:carton

Please contact us for more details.
