High Efficiency IP66 Ik10 Area Lighting 38W Street Luminaire
High Efficiency IP66 IK10 Area Lighting 38W Street Luminaire1. Major advantages of our Kmini Series LED street light:1. LUXEON 3030 2D luminous source with LM-80 report.2. High Reliable Inventronics with 5 Years Warranty.3. Over then 100,000 hours operation lifetime.4. Have TypeII Medium5. IK10&......
Send Inquiry
Product Description
High Efficiency IP66 IK10 Area Lighting 38W Street Luminaire
1. Major advantages of our Kmini Series LED street light:
1. LUXEON 3030 2D luminous source with LM-80 report.
2. High Reliable Inventronics with 5 Years Warranty.
3. Over then 100,000 hours operation lifetime.
4. Have TypeII Medium
5. IK10&IP66.
6. Have UL DLC ROHS, CE certificated
7. Patent product with 7 patent certificates.
8. 5 years Warranty.
9. Wide voltage Input: 100-240V/277V, 12V/24VDC
2. Data Sheet
| Specifications | |
| Model | ZGSM-LD38Kmini |
| Driver Brand | Inventronics |
| Norminal Wattage | 38W |
| LED Quantity | 56 Units |
| Input Voltage | 100-240/277V AC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130 lm /w |
| Lamp Rated Lumen output | 4,940 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | Type II Medium |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 20% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Material | Housing: Die-cast aluminum, Lens:PC |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Dimming Function | 0(1)-10V |
| Surge Protection Device | 10KV |
| Optional Function | Photocell Control |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 447*179*77 mm |
| Fixture Weight | 2.2 kg |
| Packing Dimension | 465*200*100 mm |
| Packing Weight | 3.7 kg |

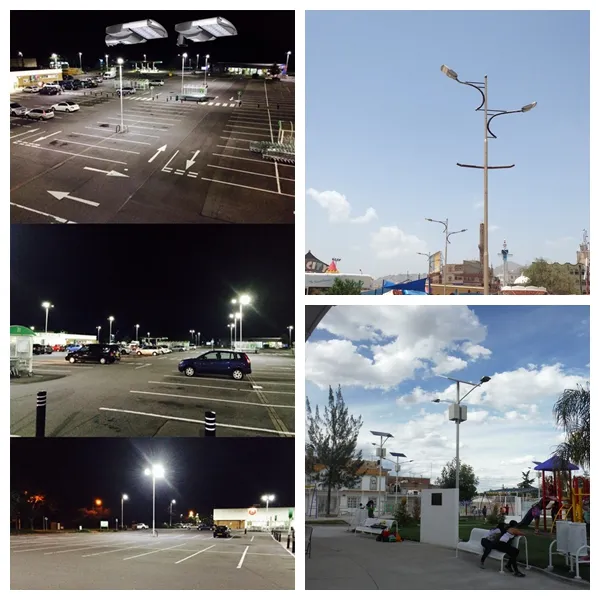

3. Application
4. Factory show
5. Exhibition show
6. Certificate Show
7. Contact us
- Reply your inquiry in 24 working hours.
- Customized design is available, OEM and ODM are welcomed.
- Delivery the goods to our customer all over the world with speed and precision.
- Offer customer the lowest price with high quality product.
- We can supply C/O(Certificate of Origin), saving approx 20% import duty.
