China Esavior 5years All in One Integrated Solar LED Street Light

Product Description

Welcome to EASVIOR solar street lighting manufacturer
For all rang products please visit our website: esavior.en.made-in-china.com to download brochure&specification & user manual

Maintenance Free 60W Integrated All in One Solar Street Light LED Solar Lighting for Road Outdoor Garden

All in One /Integrated LED solar street lights

Esavior 5years All in One Integrated Solar LED Street Light

Maintenance Free 60W Integrated All in One Solar Street Light LED Solar Lighting for Road Outdoor Garden

Product Technical Specification

SUPERIOR (BRONZE) Series		*MODEL NO. ISSL-BRZ-60W*
Solar Panel	Power	18V/70Wp (High Efficiency Monocrystalline PV)
	Life-span	25 years
Batteries	Capacity/Type	12.8V/30AH (338.00WH) / LiFePO4 Lithium
	Life-span	8+ years (2,000 circles)
Controller	Type	MPPT / Waterproof class: IP68
	Sensor	Microwave Radar ( PIR & Timing as optional )
LED Light Source	Rated Power	12V/60W (36LEDs X 3Modules)
	LED Brand	(LED Lumen:195lm/W)
	Lumens(LM)	5400-6000lm
	Life-span	100,000 hours
	Viewing Angle	140°
Full Charge Time	By Solar	6 hours
Discharge Time	Bright Mode	>11 hours
	Dim Mode	>55 hours
Working Temp.	-30ºC~+80ºC
Color Temp.	Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available)
Mounting Height	7-8m
Space Between Lights	30~35m
Materials	aluminium alloy
Certificate	CE / ROHS / IP66/TUV-SUD ISO9001/ISO14001
Warranty	3 years
Packing & Weight	Product Size	1135355140mm
	Net Weight	19.5kg
	Carton Type	Customary Carton/ OEM Acceptable
	Carton size	1190410210mm
	Qty/ctn	1set per CTN
	GW. per Carton	21.0kg
PCS per Container	20' GP	270pcs
	40' GP	620pcs

Product Advantages

Wireless Application:
Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.

Micro-Computer Controlled:
Combine light control system and time control system perfectly, ensure whole system more energy-efficient.

Easy Installation:
No power required, no cables required, easy installation in 5 minutes.

Good Heat Dissipation:
The shell is aluminum with scientific cooling hole, and also built-in aluminum block on the back of the light source to support good heat dissipation .

Extreme light:
Light efficiency reach 195 lm/w, at same watt ,more Bright ,lighting area is expanded and more uniformity

Lithium battery:
Adopt LiFePO4 lithium battery to replace MnNiCo lithium battery, more than 8 years lifespan,longer lifetime.

Modular design:
All components are modular design and in standardized production. Battery can be easily replaced if needed.

Low cost:
Compared with traditional solar led lights, much lower cost, easy to transport.

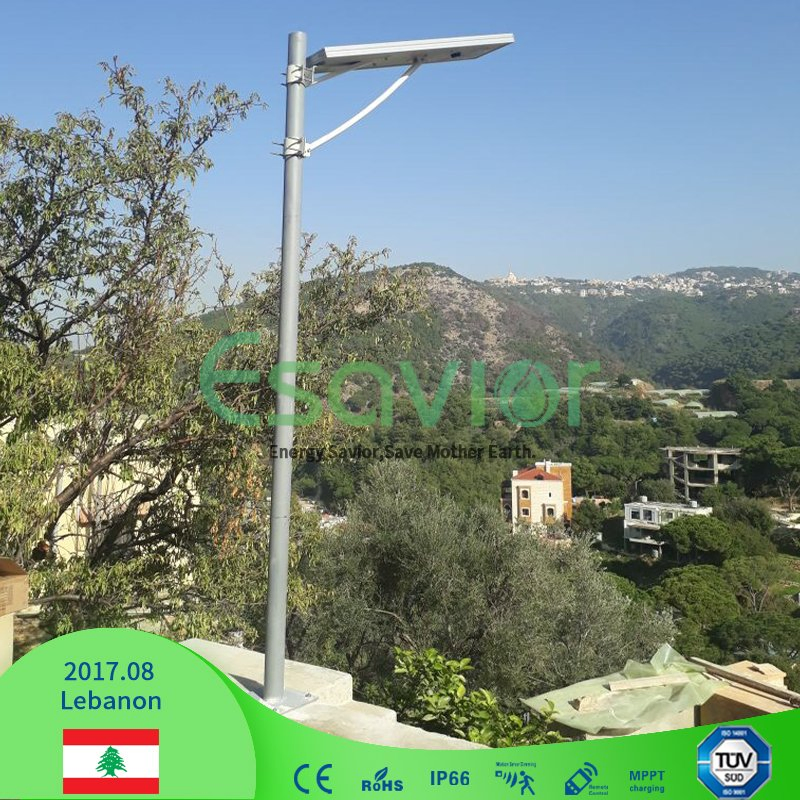

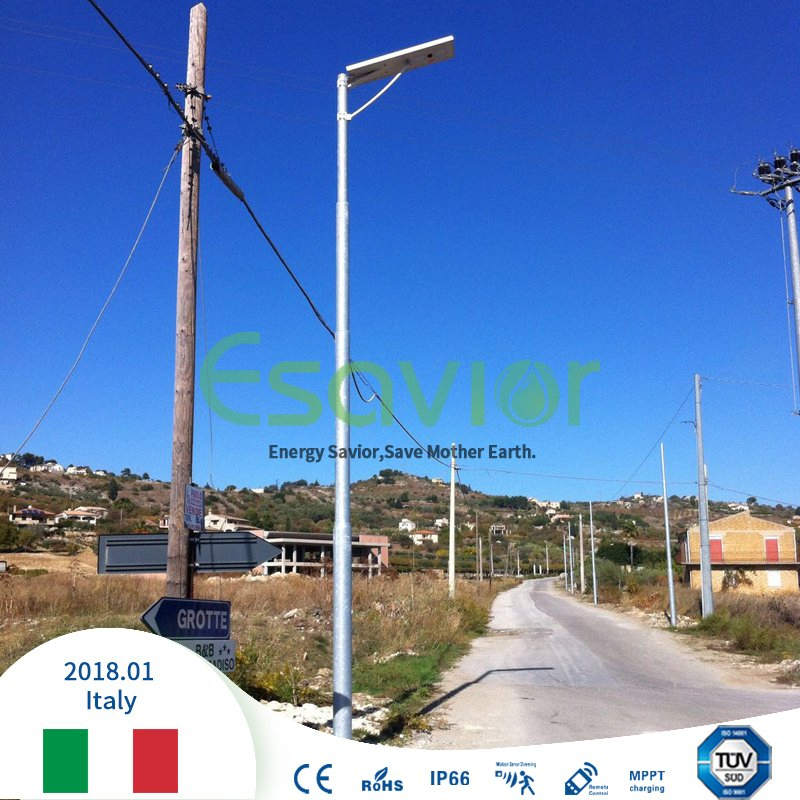

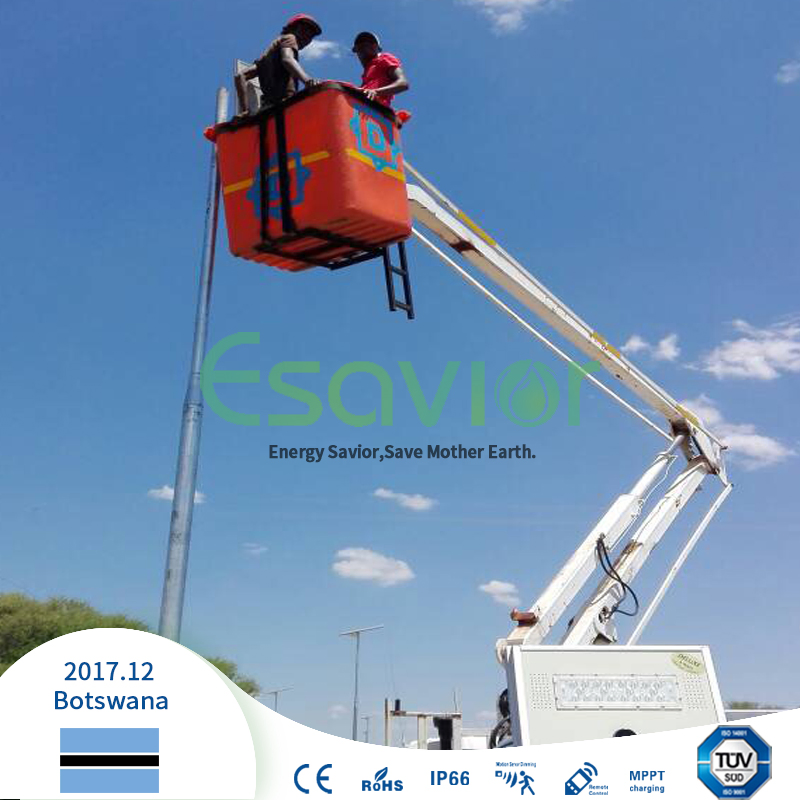

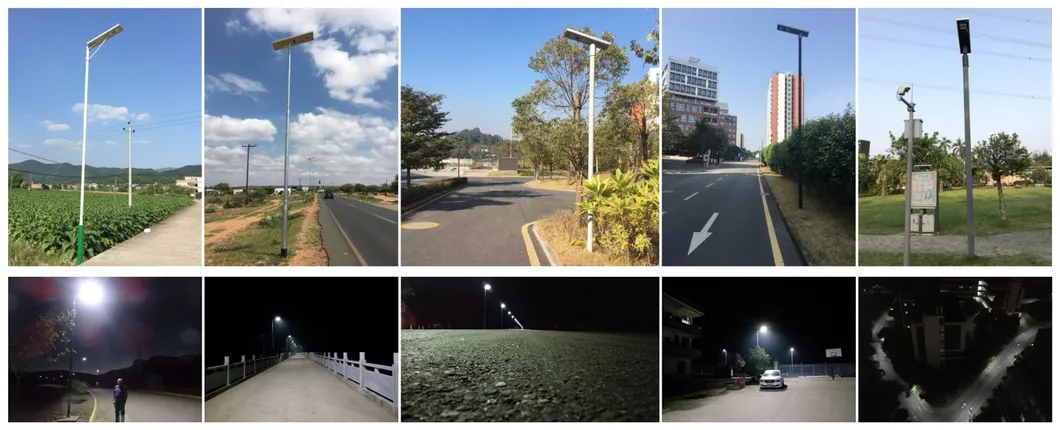

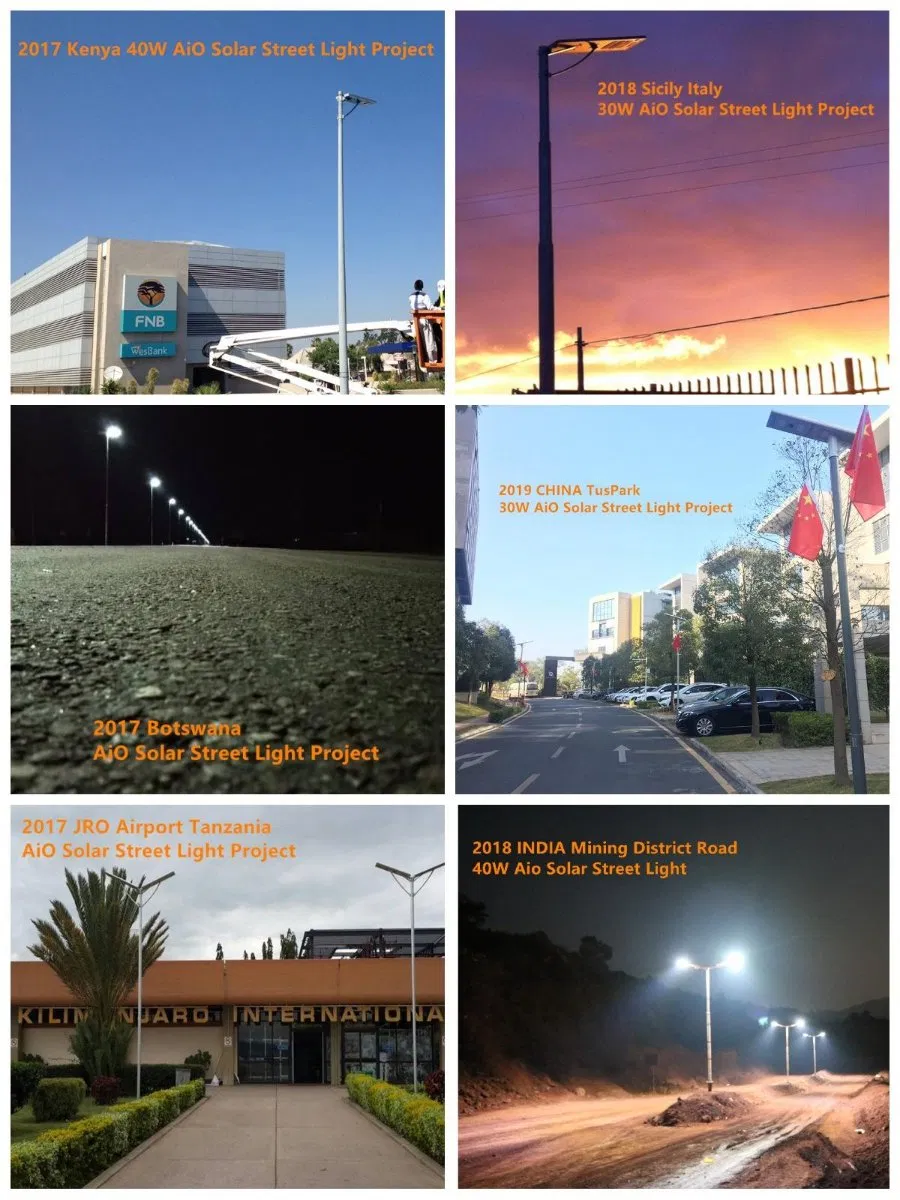

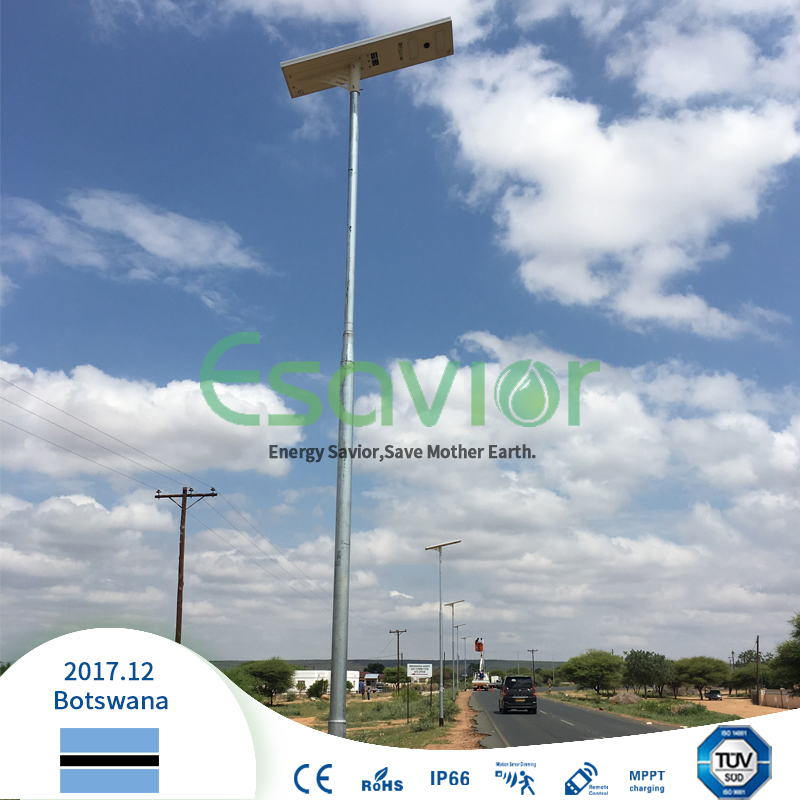

Projects Show

Esavior 5years All in One Integrated Solar LED Street Light

Certificate Show

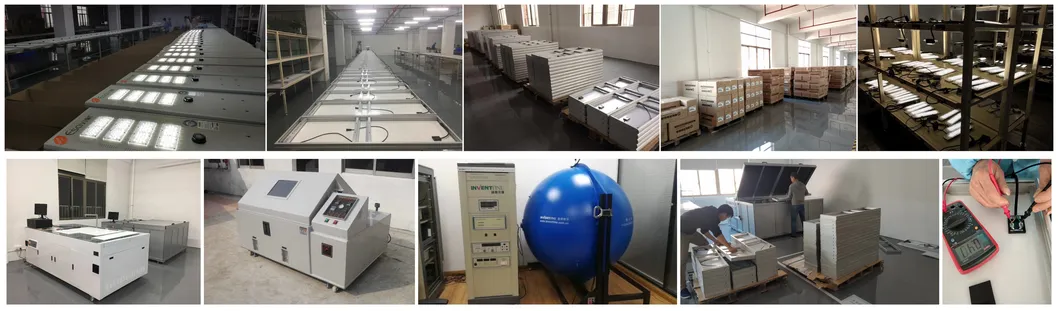

Workshop Show

Overseas Exhibition

FAQ

Q1:Does the lamp light on automatically?

A:Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2:Can I order samples for solar street light?

A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q3:What about the lead time?

A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

Q4:Do you offer guarantee for the products?

A:Yes, we offer 3-5 years warranty to our products.

Q5:Can the lamp be used in strong wind environment?

A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6:What's the difference between Motion sensor and PIR sensor?

A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.

Why choose ESAVIOR?

1. Exceeded 10 years' experience in with global successful project reference on the Solar Lighting field.

2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.

3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.

4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.

5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.

Thank you for your attention! If there are any questions,please do not hesitate to contact us for freely!
