CE RoHS SAA TUV ETL Approved LED Street Lamps High Efficiency 135-140lm/W LED Road Lights Streetlight IP66 Waterproof 3000K 4000K 5000K 5700K 6500K

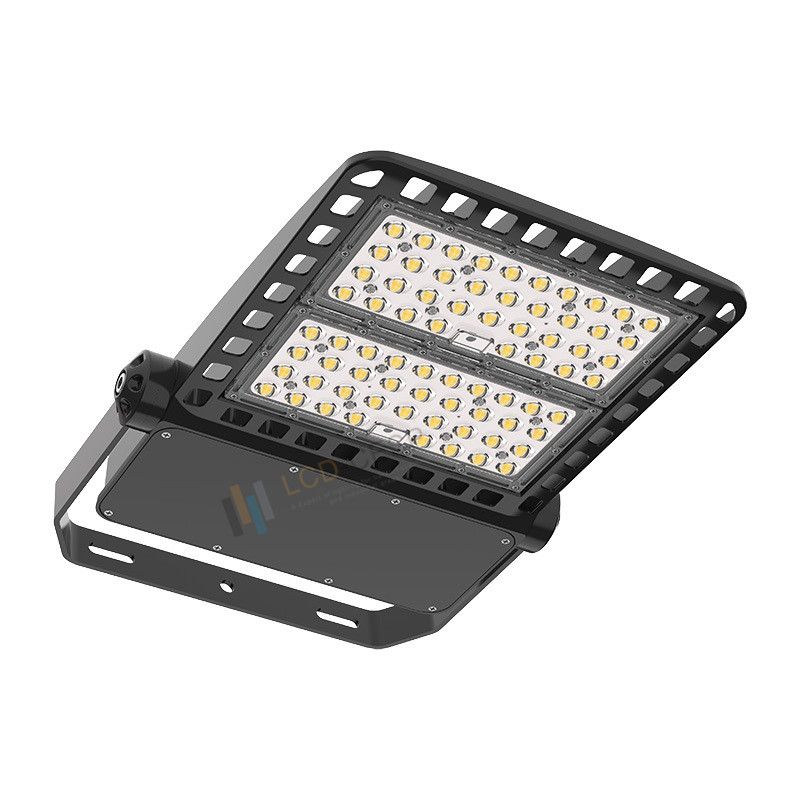

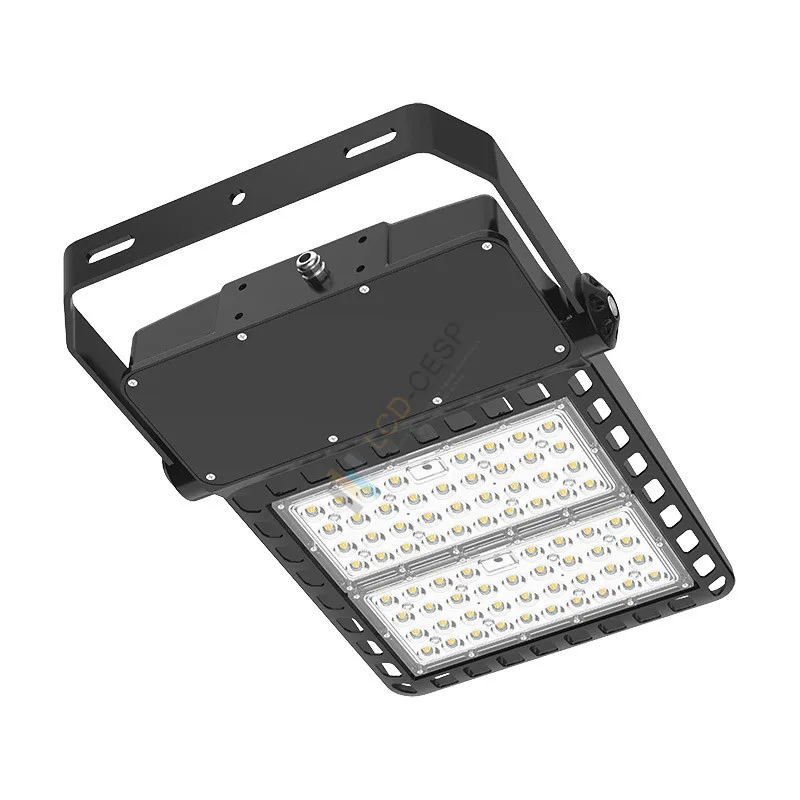

Product description
LED Shoebox flood Lights are commonly used to replace HPS or traditional shoebox lights and metal halides and can provide an energy savings of up to 65-80% with PLC dimmer system. These shoebox floodlights are safe & durable for outdoor use and protected from rainy, snowy, and weak jets of water, such as sprinklers. LED Shoebox flood Lights are perfect for stadiums, parks, billboards, places of worship and street light.

1.Excellent heat disspation with professional and durable design
2.Easy installation and maintenance
3.No wires being exposed to the suny and rainy
4.Highly energy efficient - up to 140lm/w
5.Slim, state-of-the-art, low profile design maximizes wind resistance
6.IP66 rated, suitable for Wet Locations
7.5 Years warranty


The LCD

Street light brings a uniform lighting experience to large spaces. It was built for parking lots, downtown areas, neighborhoods, walkways and building grounds. Thanks to a variety of mounting options, available wattages and beam angels it can be configured to fit most requirements. Its new and efficient heat sink design allows for a professional and durable housing shape while ensuring excellent heat dissipation. The optional photocell daylight sensor provides a smart way of further increasing the energy savings while assuring that the right level of brightness is given as needed.

Options
- About 25 different beam angel options
- PLC dimmer / DALI / 0-10V dimmable available
- Photocell / Mootion sensor available

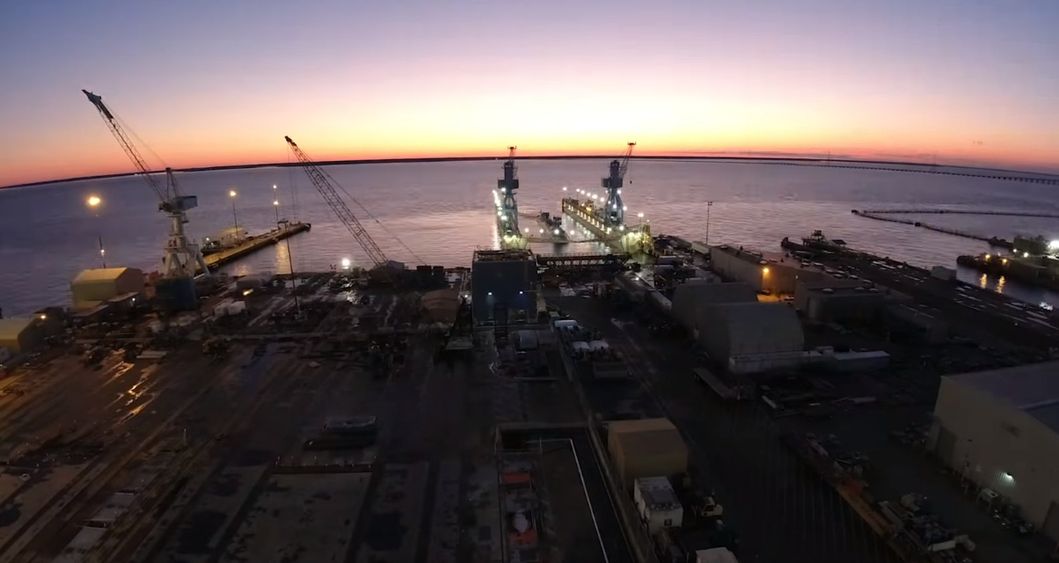

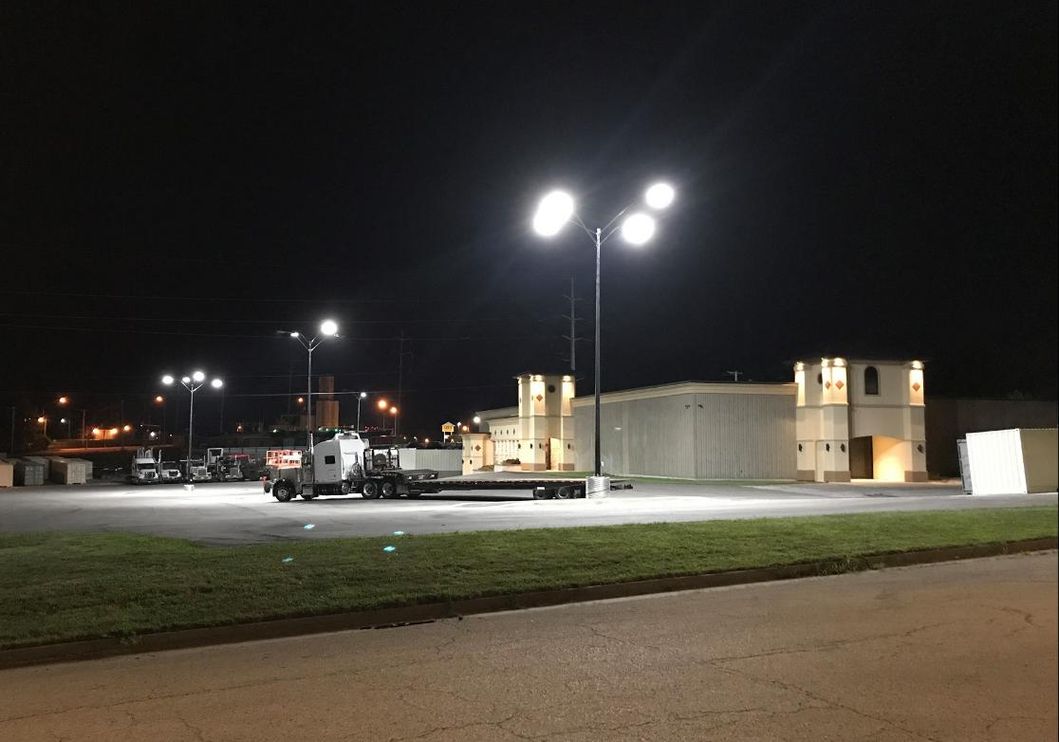

Area of application

Certificates

• [Super Bright & Energy Saving] - With super bright SMD5050 & 3030 LED sources are sure the whole lamp luminous efficiency up to 140lm/w. LED source, LUMILEDs SMD5050 & 3030 is super brightness with longer lifespan and less decay. 21000LM equivalent to 750W-800W HID. Professional different LEDiL brand lens such as 70x150°beam angle for Car parking a lot or street side. And with PLC dimmer system ensure energy saving 80%-85% than traditional lamp.
• [ Waterproof IP65/ IP66 & Easy installation and maintenance] - Waterproof IP66 is perfectly suitable for outdoor hash location application. No matter how it is sunny, rainy, snowy or stormy it can works well properly. This LCD LED series parking a lot lighting fixtures team with slip fitter mount etc 5 differents fit diameter 60mm / 2.36' pole mounting. Really easy to install on round pole. The light is 180 degree adjustable, which can be adjusted to best angle for your aiming area.

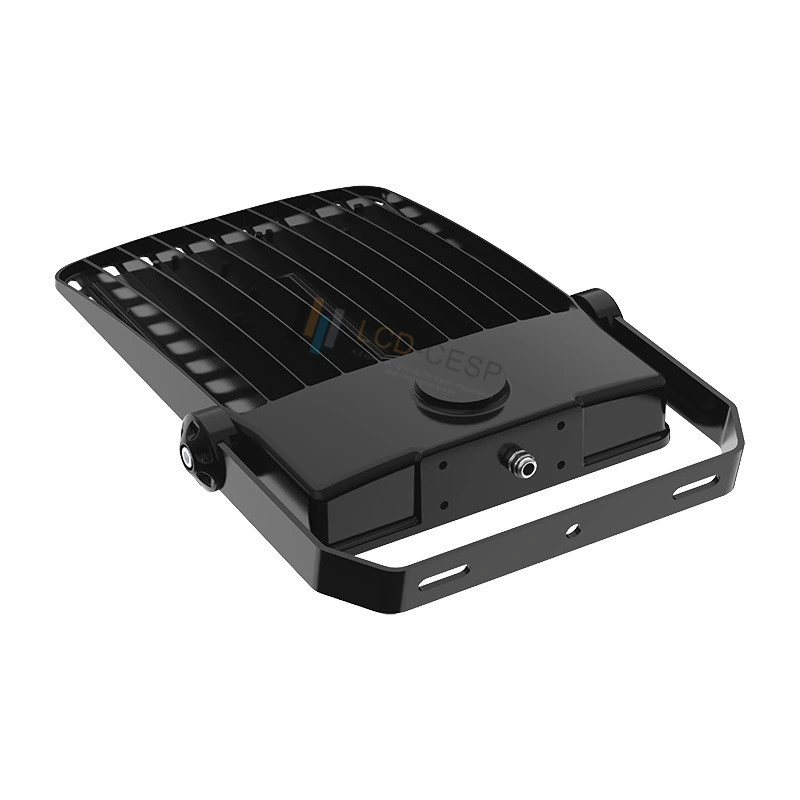

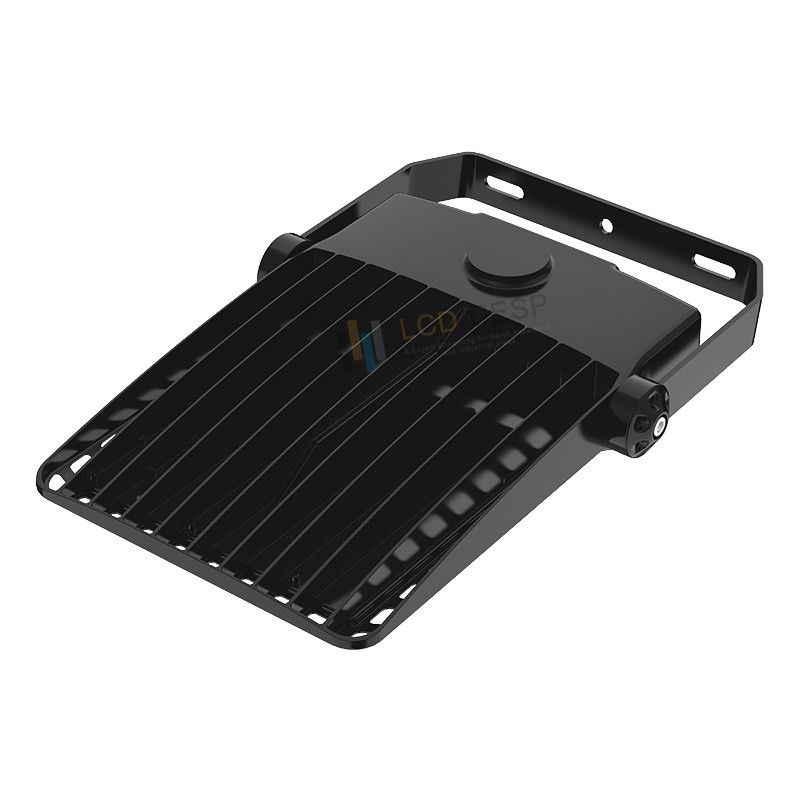

• [ Professionla heat-sink fin heat Dissipation design ] With good therml management fin design for heat-dissipation, which ensure the fin  dissipation area is large touching for air at the most possible and cooling down faster. This perfect thermal management makes sure the LED chip and driver under a cool condition operation. Extend lamp's lifespan. Lifespan more than 60,000 hours, that's means 16 years for 10 hours/day.
• [ LEDiL Brand Lens & Free DIALux layout Service ] With LEDiL brand lens, our lamps have a exact Range & precision right for increased wellbeing and safety, optimised functionality and improved sustainability with energy efficiency. And you just get us the dimension of your parking lot or street or etc..., the pole height and the requirement of illumination. Then we will use DIALUx design a perfect lighting solution for you. This design will tell you how much lights and what power needed.
• [ Certification & Warranty ] Approved by ETL, DLC (Design Lights Consortium for independent verification), CE, FCC and RoHs certification that ensures better quality, safety, and reliability. The package comes with safety rope, which provide double safety. We also promise 5 years' free maintenance if there is any quality problem.

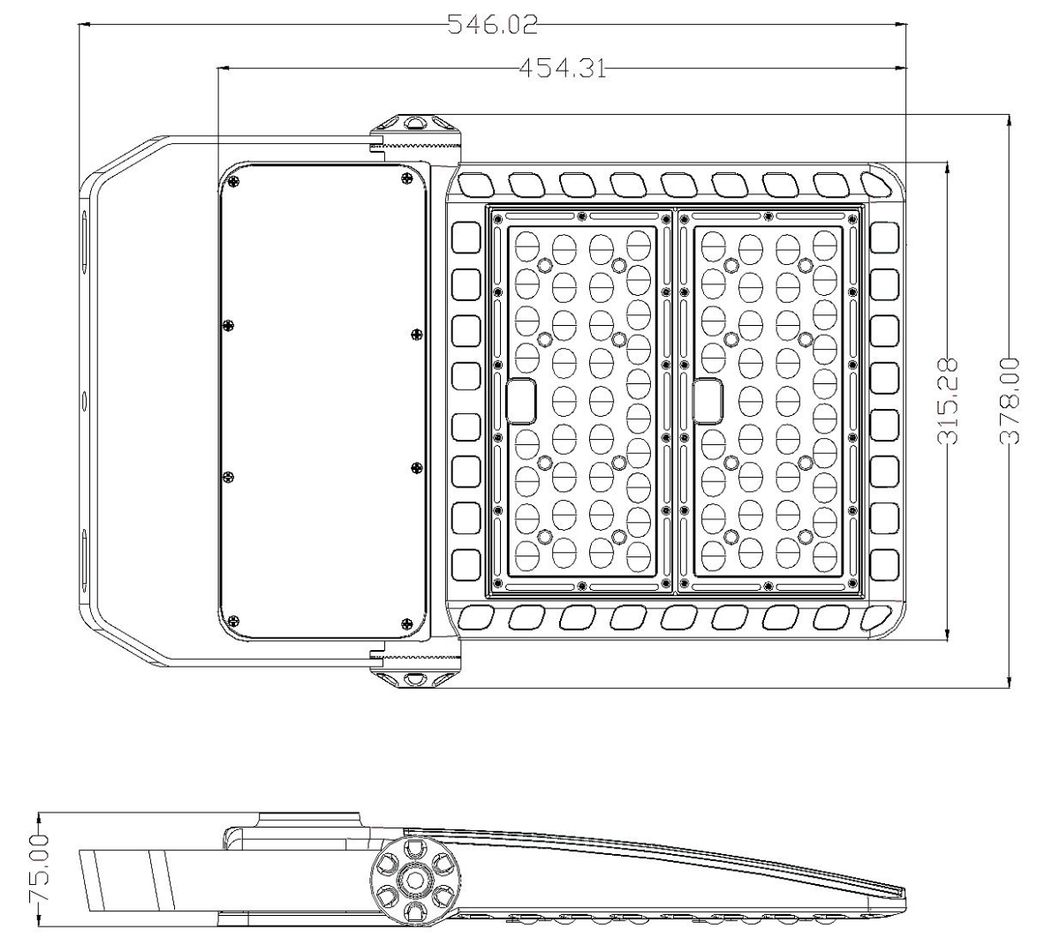

Products dimension

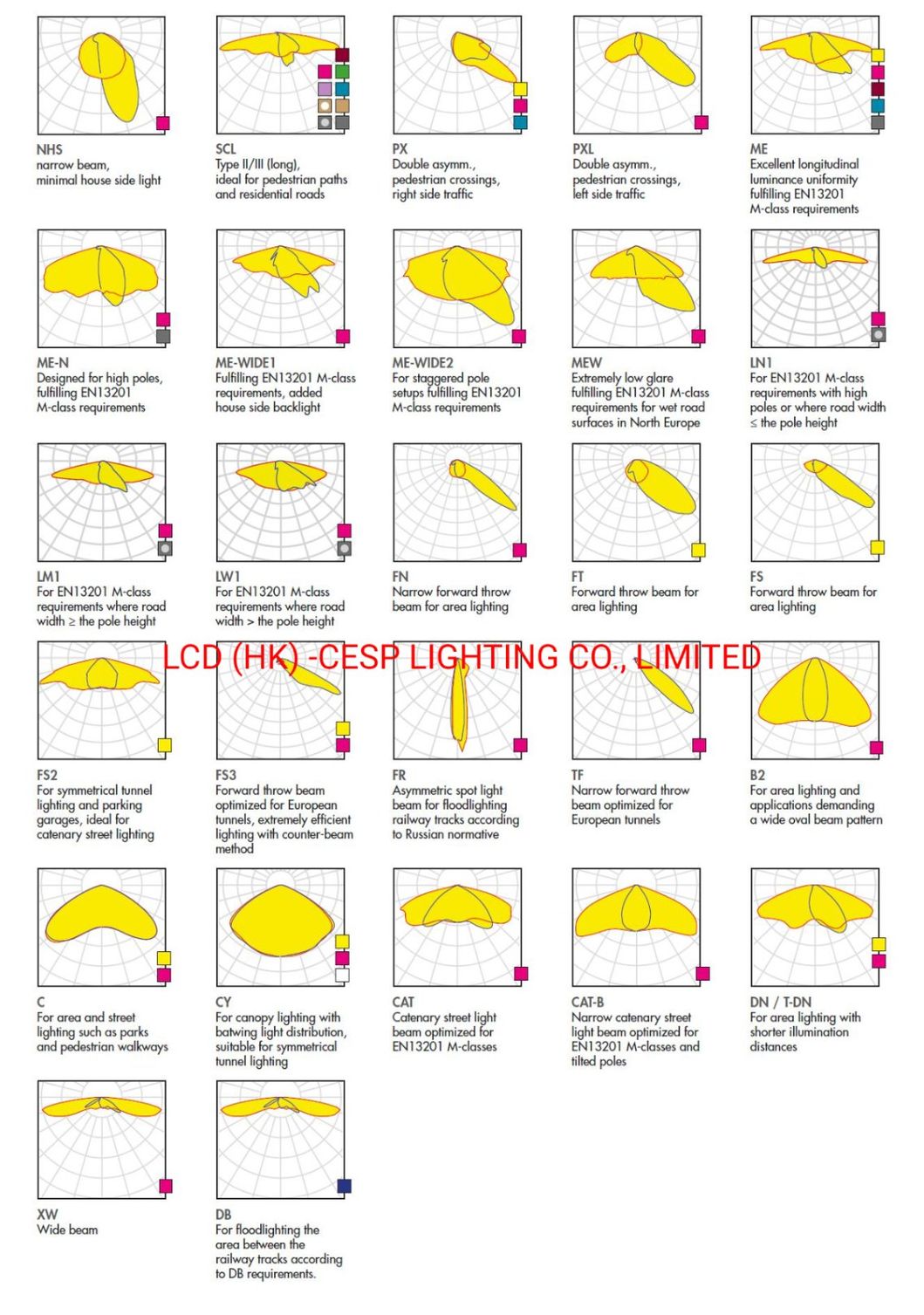

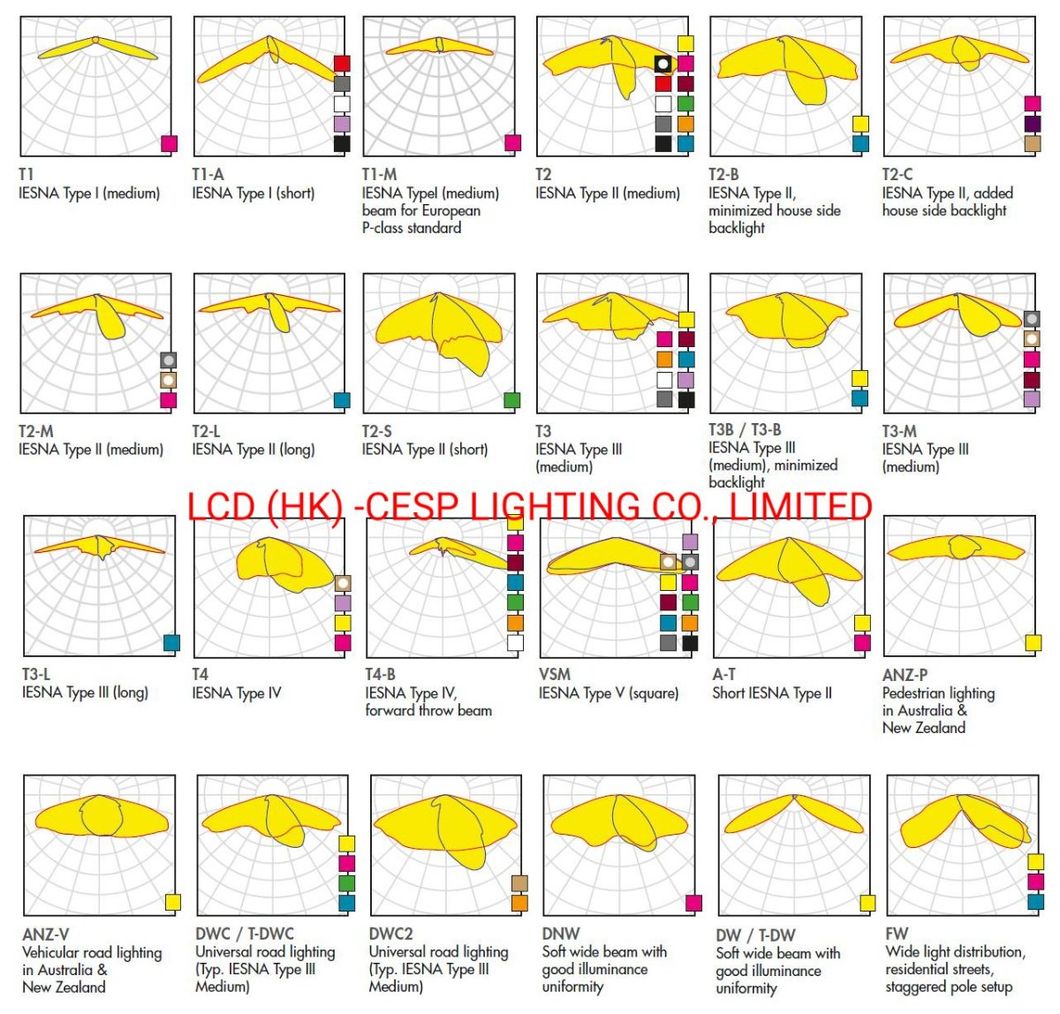

Light distribution curve



                                                                                                             Specification

Standard lumen (130lm~140lm/W)
Model	Nominal wattages (W)	Nominal voltage	Rated luminous efficacy (lm/w)	Nominal luminous flux (lumen)	Beam Angle	LED Quantity	CRI
G6F-A1-80	80	AC100~277V 50~60Hz	140±5	11200±5%	Type 2 Type 3 Type 4 Type 5 etc	140PCS SMD 3030	>70Ra
G6F-A1-100	100		140±5	14000±5%		140PCS SMD 3030
G6F-A1-120	120		140±5	16000±5%		140PCS SMD 3030
G6F-A1-150	150		140±5	20300±5%		140PCS SMD 3030
G6F-A1-200	200		140±5	28000±5%		280PCS SMD 3030
G6F-A1-250	250		140±5	35000±5%		420PCS SMD 3030
G6F-A1-300	300		140±5	41000±5%		420PCS SMD 3030



Electrical data		Photometrical data
Operating frequency	50-63HZ	Available light colors	warm white;natural white;daylight white
Type of current	AC100-277V / 12V 24V 32V	Available color temperatures	3000K;4000K;5700K;6500K
Power factor λ	>0.95	Color rendering index Ra	>70
Efficiency in %	>90%	Standard deviation of color matching	<3
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<27
Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	Type 2/Type 3/Type 4/Type 5 etc etc



Standards Certification		Temperatures operating conditions
Type of protection	IP65 / IP66	Heatsink temperature	-30~+75ºC
SPD Tested dielectric strength	3-4 KVac	Ambient temperature	-30~+55ºC
Safety features	Open circuit protection; short circuit protection ; overvoltage protection	Storage temperature	-40~+80ºC
Certificates	American market: UL, DLC Premium, cUL European market: TUV, GS, CB, D Mark, CE Australian market: SAA, CTick,RMC
Energy efficiency class	A+ A++



Lifespan		Features/Capabilities and additional product data
Rated nominal Lifetime	5 Years	Base/Socket	Directly wired
Switching cycles	100,000 times	Dimmable	PLC dimmer /0-10V dimmable / DALI dimmable
Lumen maintenance at e.o.l.	70-80%



Packing Information
Model	Dimension(MM)	CTN SIZE(CM)	QTY/CTN	Net Weight/pcs(kg)	Gross Weight /CTN(kg)
G6F-A1-80W/100W/120W/150W	426*378*75	59*36*13.5	1PCS	5.5	8.6
G6F-A1-200W	546*378*75	71*36*13.5	1PCS	6.8	9.8
G6F-A1-250W/300W	671*378*75	83*36*13.5	1PCS	9.6	13.8

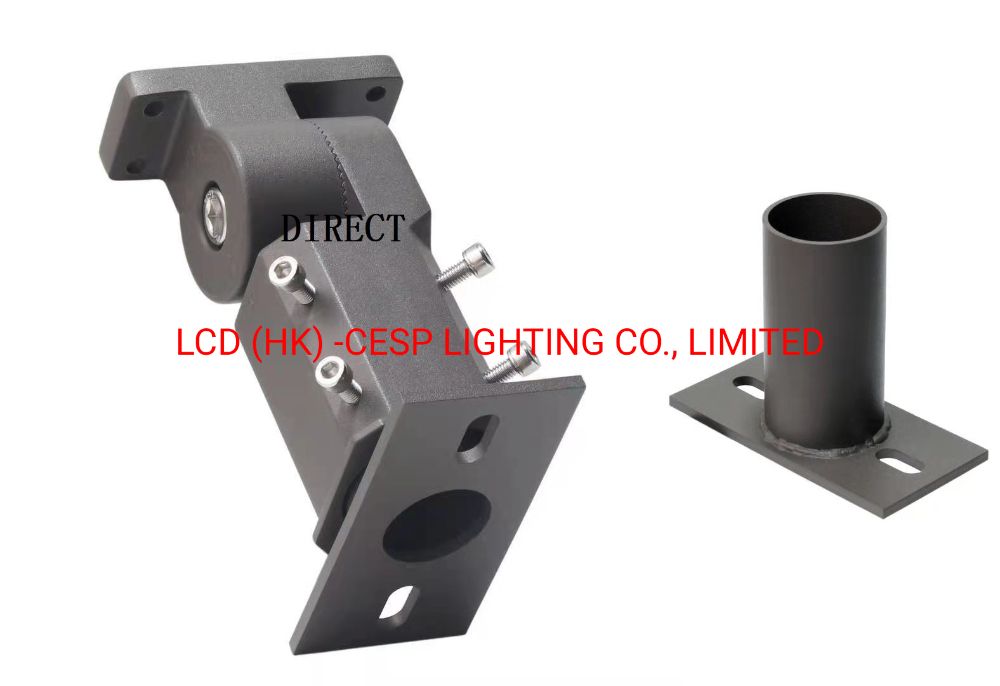

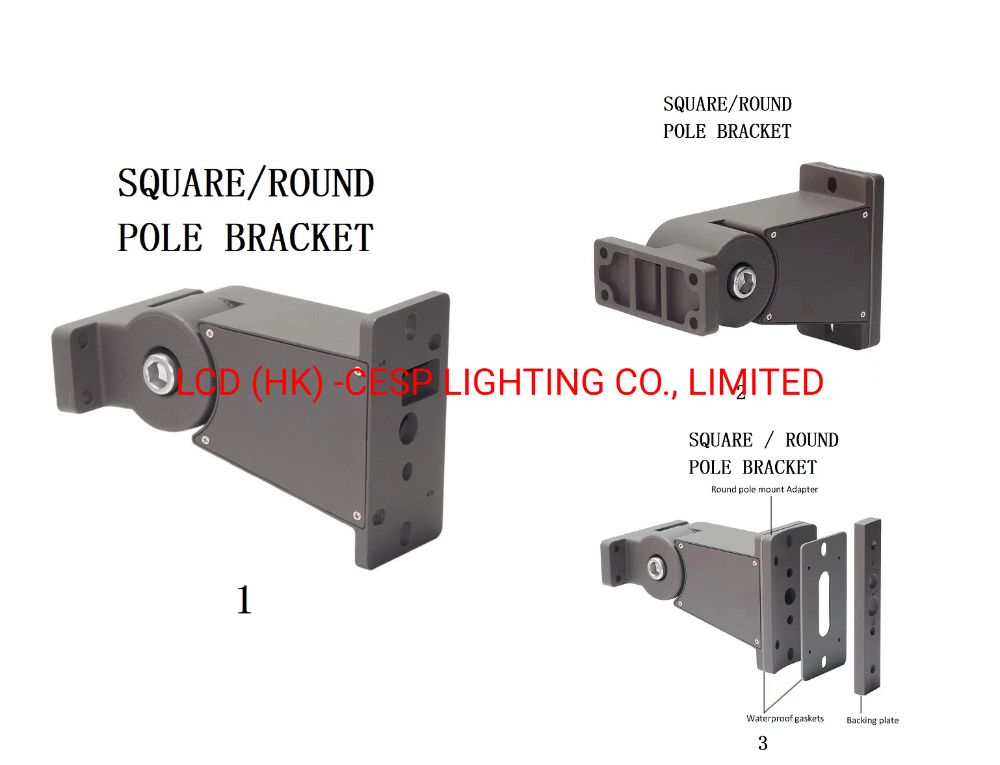

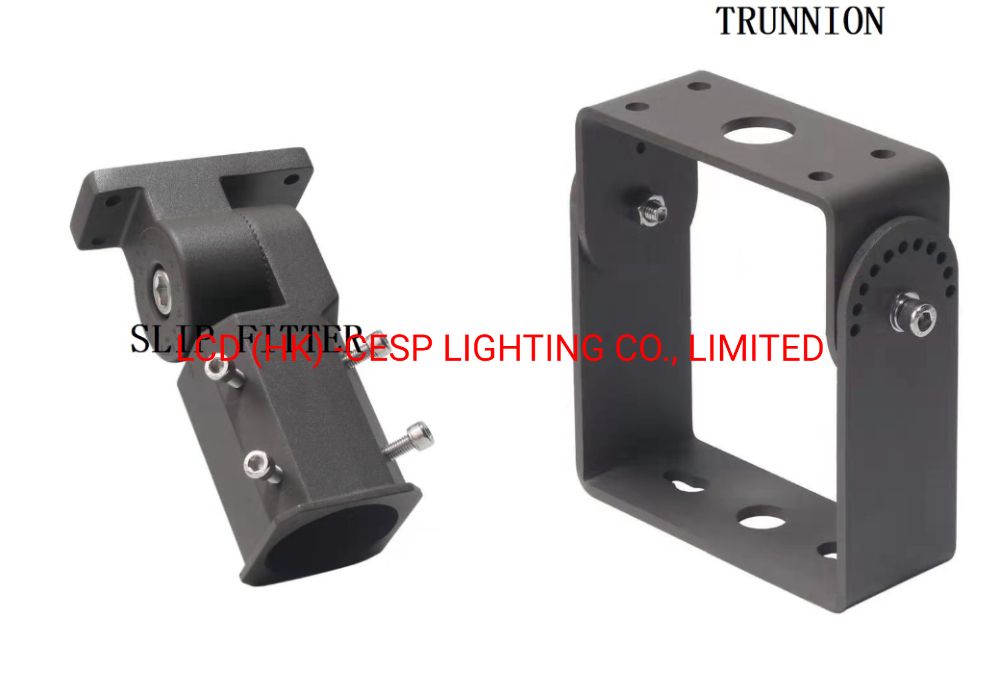

Mounnting Arms Options
