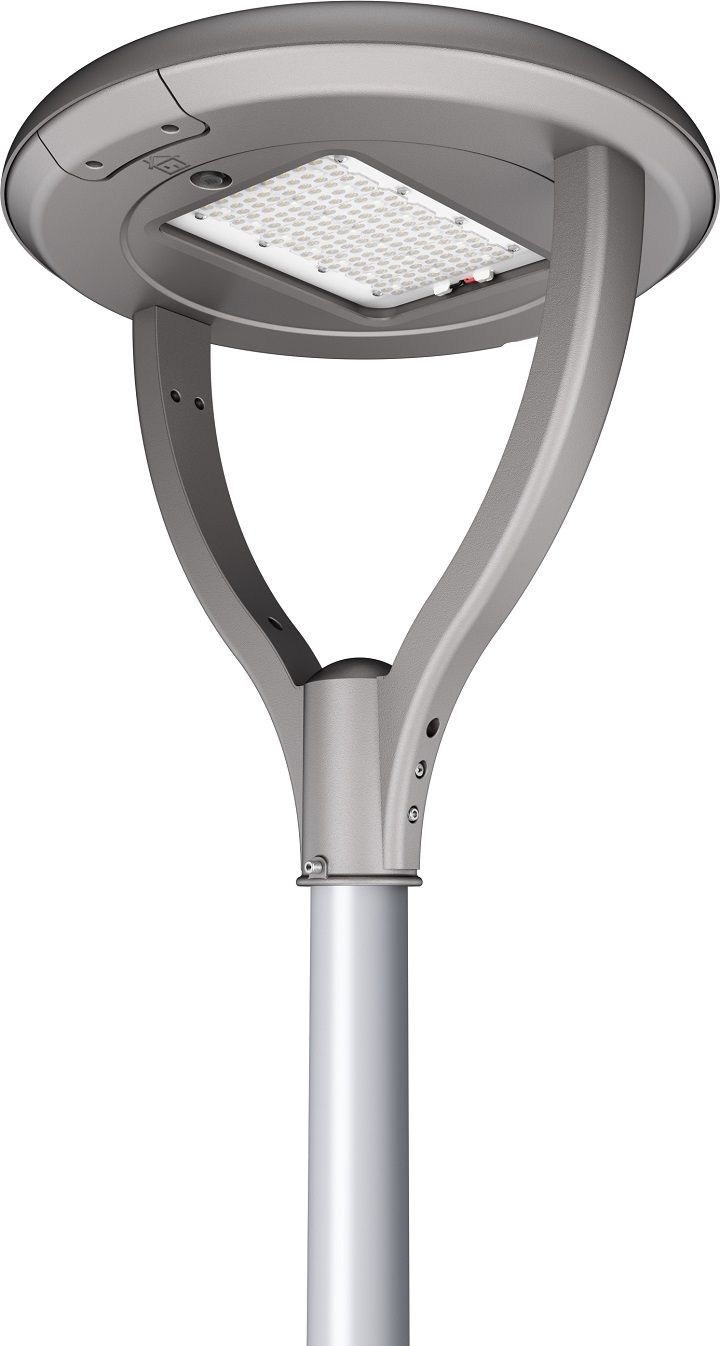

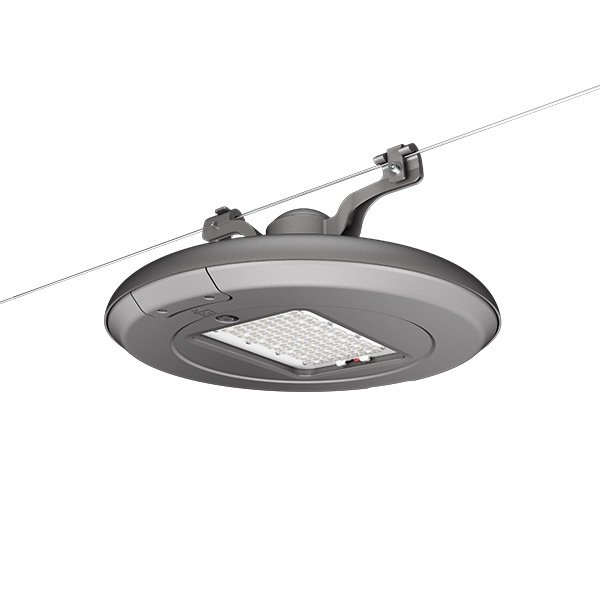

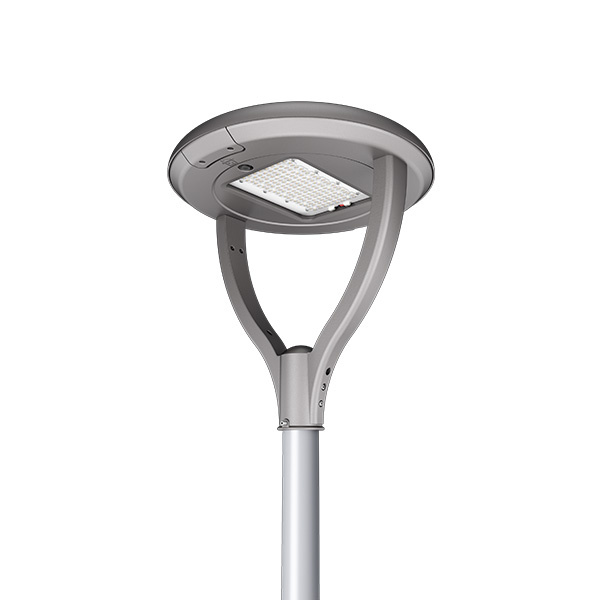

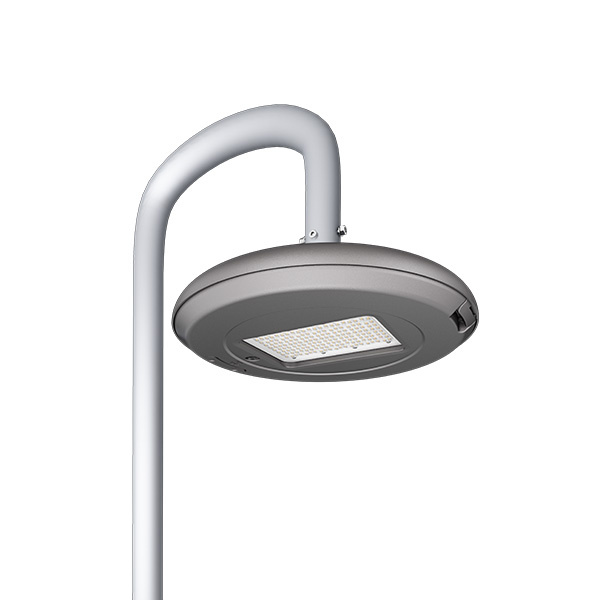

CE RoHS Certified LED Garden Lamps for Garden Square Citystreet

ZGSM L series high power LED street lights are designed for city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.


All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.

Features:
1. LED's maintain flux is up to 150 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 90 - 305V AC, 12V/24VDC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care

Electrical Specifications:
Lamp's Power: 27W
Operating Voltage: 100-240V AC, 50/60Hz or 12V DC
Optimal Operating Temp: -40 C to +50 C
Power Fact(PF): > 0.95
Power Supply Efficiency: > 90%
Operating Humidity: 10% to 90%

Photometric Specifications:
LED Luminous Flux: 4050lm
LED Luminous Efficiency: Up to 150 lm/w
CRI: Ra >= 75
CCT: 3000K, 4000K, 5000K, 5700K

Mechanical Specifications:
IP Rating: IP66
IK Rating: IK08
Guarantee: 7 years
Heat Radiator: Anodized Aluminum
Fixture Weight: 7.6kgs
Fixture Dimensions: 480x480x521 mm
Face: Plastic

Packing Information:
Packing Type: 1unit /CTN.
Packing Dimension: 490x490x170 mm
Packing Weight: 9.3kg

[Warranty]
7 years for the whole lamp Since the date of purchase.

[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under coditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
