36W 60W 100W 150W 200W Solar Powered LED Street Lights for Road Path Garden Square Plaza
Solar Powered Led Street Lights Solar panel80-200W*2 Mono/Polycrystalline siliconBattery12V/50-100AH*2 Gel storage battery Light source36-100W LED with half power(first 4 hours full power, last 4 hours half power)Controller24V/15A Temperature-40-50ºCAverage lighting time3 rainy days, everyd......
Send Inquiry
Product Description

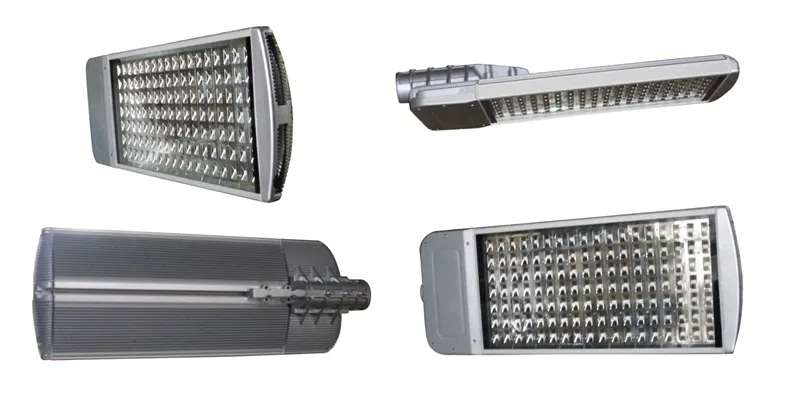

Solar Powered Led Street Lights
We can also make the product according to your request.
We warrant 5 years for pole, 3 years for LEDs, 1 year for controller, 1 year for battery and we assure you that the fading rate of solar panel will be less than 10% in 20 years.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
| Solar panel | 80-200W*2 Mono/Polycrystalline silicon | |
| Battery | 12V/50-100AH*2 Gel storage battery | |
| Light source | 36-100W LED with half power(first 4 hours full power, last 4 hours half power) | |
| Controller | 24V/15A | |
| Temperature | -40-50ºC | |
| Average lighting time | 3 rainy days, everyday 8 hours | |
| Height of Pole | 10M height, high quality plstic coated hot galvanizing steel Q235, 4.5mm thickness | |
| Light pole support | 1set | |
| Battery box | 1set(to be put underground) | |
| Accessories, cable etc. | 1set | |
We warrant 5 years for pole, 3 years for LEDs, 1 year for controller, 1 year for battery and we assure you that the fading rate of solar panel will be less than 10% in 20 years.
| LED lamp's technology parameter | ||||
| Components | Parameter | |||
| 1 | Model | SCSL-TRL005 | ||
| 2 | Source | Die-casting Aluminum | ||
| 3 | LED Amount | 84 pcs | ||
| 4 | Color temperature | according to customers' requests | ||
| 5 | Light Flux | 9600lm | ||
| 6 | Rated Power | 100W | ||
| 7 | Centre for illumination | 7m-32lx/8m-24lx | ||
| 8 | Illuminate Range | 26m/32m | ||
| 9 | Rated Voltage | DC24V | ||
| 10 | Suitable temperature | -40ºC-65ºC | ||
| 11 | Work Temperature Rise | <20ºC | ||
| 13 | N.W. | 8kg | ||
| 14 | G.W. | 8.6kg | ||
| Typical Electrical Characteristics of solar panel | ||||
| TSM | SC200M | |||
| Maximum Power | Wp | 200 | ||
| Power Tolerance | (%) | ±3 | ||
| Optimum operating voltage | Vm(V) | 35.8 | ||
| Optimum operating current | Im(A) | 5.55 | ||
| Open circuit voltage | Voc(V) | 45.6 | ||
| Short circuit current | Isc(A) | 5.87 | ||
| Module Efficiency | (%) | 15% | ||
| Cell Efficiency | (%) | 17% | ||
| Withstanding Voltage | (VDC) | 1000 | ||
| Number, Type and Arrangement of Cells | 72pcs, Mono-Crystalline silicon(6*12) | |||
| Cell Size | (mm) | 125*125 | ||
| No. Of Bypass Diodes | (Pcs) | 3 | ||
| Max. Series Fuse | (A) | 10 | ||
| Temperature Coefficients of Isc | (%) | 0.04 | ||
| Temperature Coefficients of Voc | (%) | -0.38 | ||
| Temperature Coefficients of Pm | (%) | -0.47 | ||
| Temperature Coefficients of Im | (%) | -0.04 | ||
| Temperature Coefficients of Vm | (%) | -0.38 | ||
| Temperature Range | (ºC) | -40~+85 | ||
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
