30W 2500K- 6500K All in One Outdoor LED Solar Street Lights
Product ParametersSpecially engineered with end-user and human-centric conception in mind, this luminaire is carefully crafted with sleek housing and versatile photometric distribution options combined with excellent weather resistance performance and extra SPD available, ideal for applications in t......
Send Inquiry
Product Description

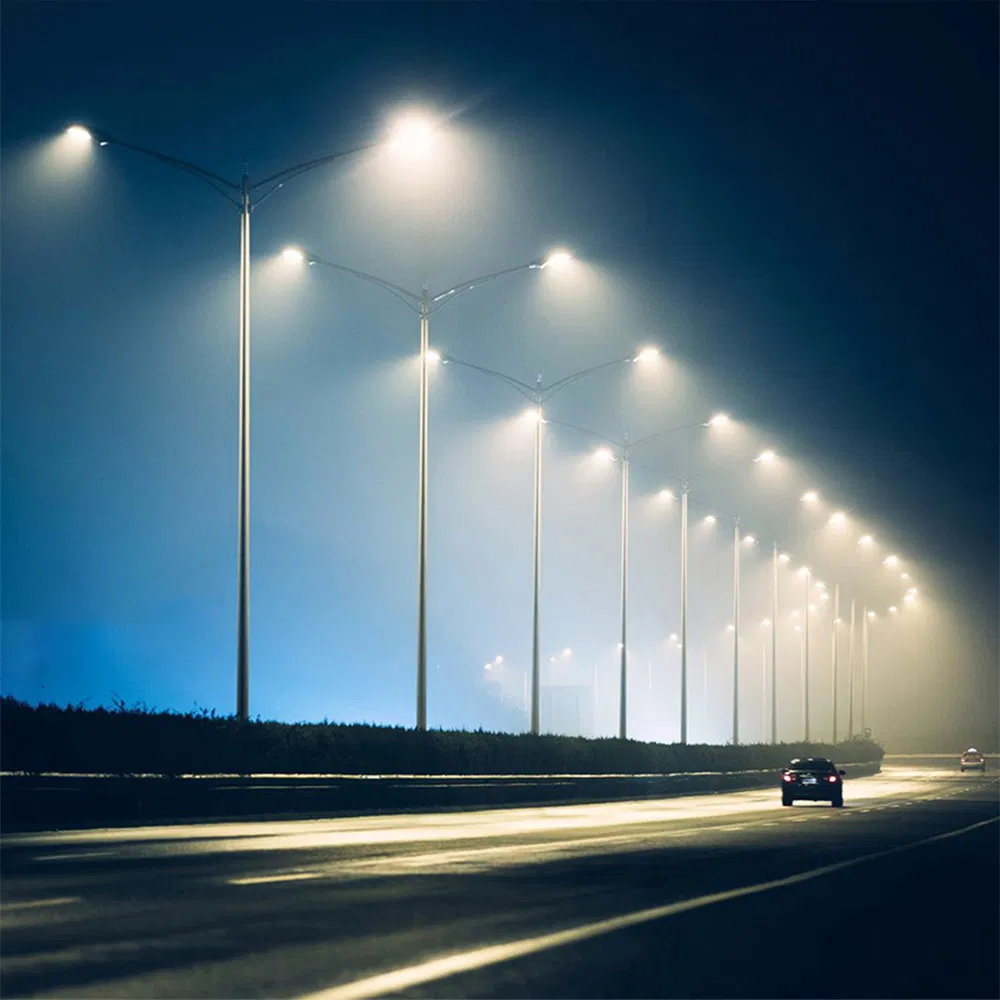

Specially engineered with end-user and human-centric conception in mind, this luminaire is carefully crafted with sleek housing and versatile photometric distribution options combined with excellent weather resistance performance and extra SPD available, ideal for applications in the street, roadway, etc. featuring high efficiency and neighborhood friendly

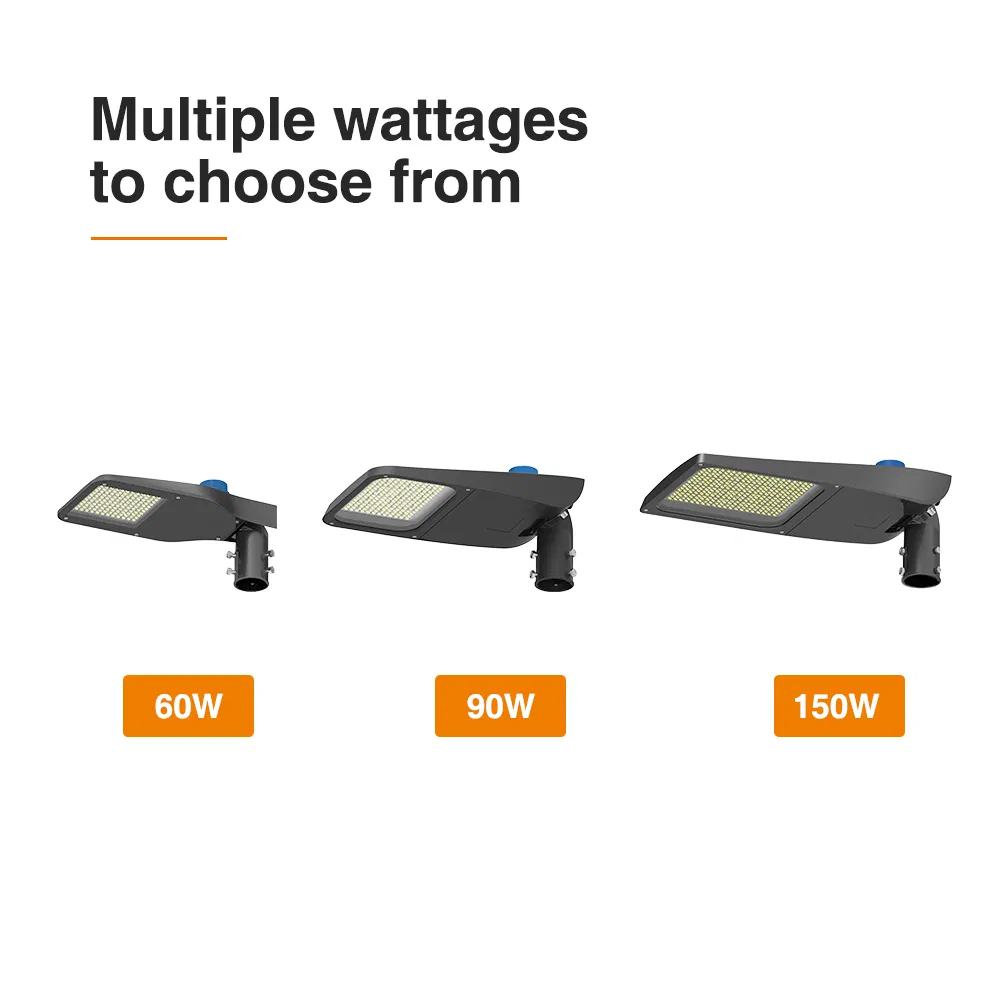

| Typ. Model No. | HS-38D | HS-65D | HS-90D | HS-150D | HS-180D |
| Rated Power | 38W | 65W | 90W | 150W | 180W |
| Volt. Input | AC 100 - 277V 50/60Hz | ||||
| Power Supply | Inventronic or Meanwell, built-in | ||||
| LED Type | SMD3030 | ||||
| Luminous Flux (Ra80) | 4200LM±10% | 9100LM±10% | 12600LM±10% | 21000LM±10% | 25200LM±10% |
| Luminous Efficacy | 140LM/W±10% based on Ra80 150LM/W±10% based on Ra70 | ||||
| Light Distribution | Type II (ME1-ME5) | ||||
| CCT | 3000K/4000K/5000K/5700K | ||||
| Working Temp. | -30-50ºC | ||||
| Storage Temp. | 40-85ºC | ||||
| Lifespan | 50,000H | ||||
| Protection Grade | IP66 / IK08 | ||||

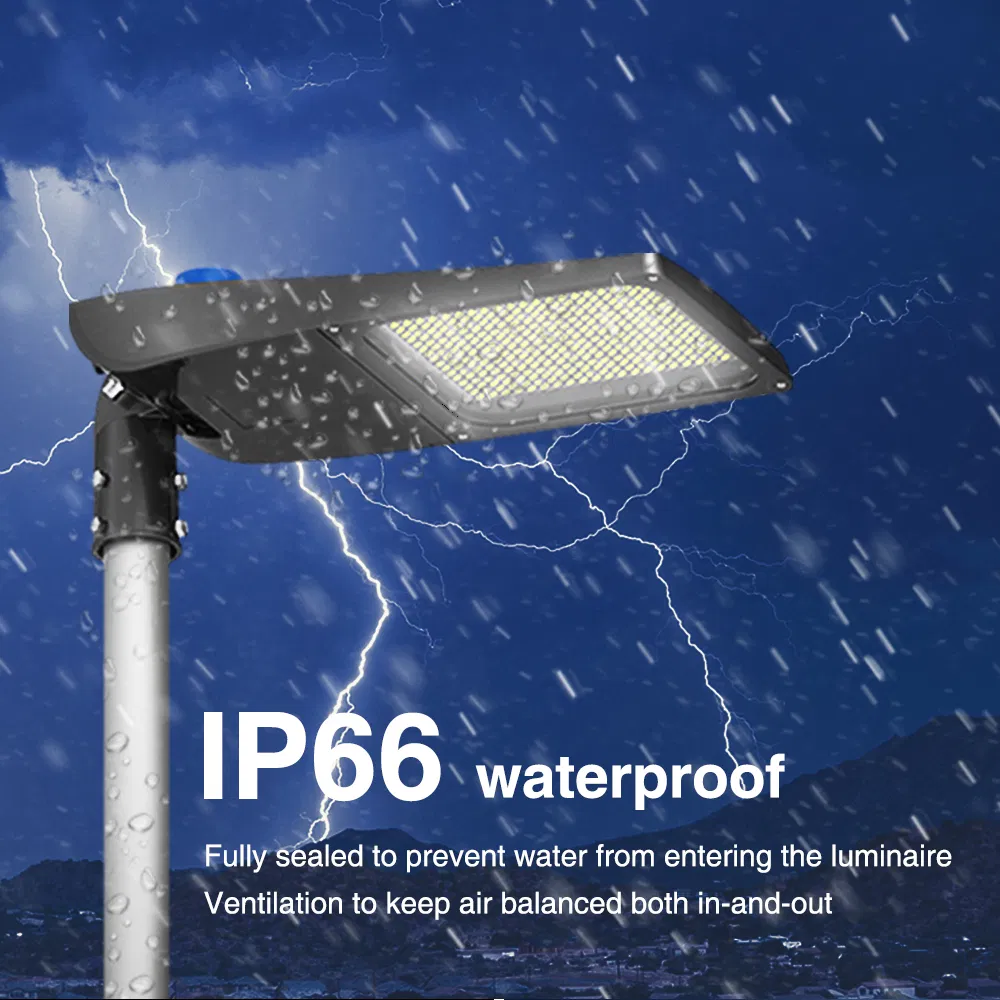

1. High IP Rating: IP66: Specifically designed to withstand harsh conditions. Robust design allows it to suit various applications and is high pressure washable.
2. Sleek Urbanity Design: Sleek housing design of urbanity style allows this model an ideal luminaire integrated with the metropolitan landscape.
3. Versatile Light Distribution: Universal light distribution curve available with Type III (ME1-ME2), Type II (ME3-ME5) specifically designed for the roadway.
4. Universal fixations adaptable with Side-entry or Post-top mounting, arm adjustable: -15°~+15°.
5. Premium LED for high efficacy: Light Engine composed of modular quantities of premium LEDs, high lumen output up to 140LM/W.
6. Special Protection and Coating Optional: 10KV/20KV SPD optional combined with 1500hrs salt spray test for use in rugged applications.

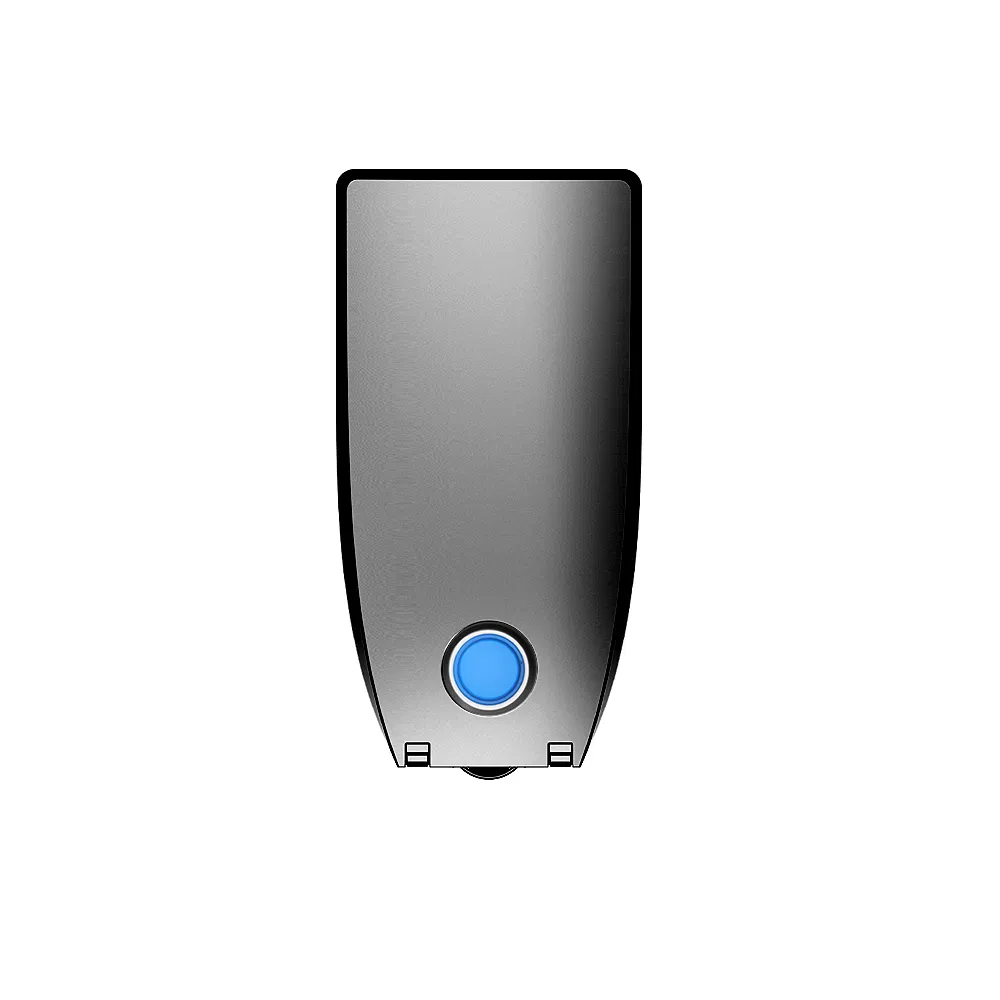

7. Smart City Solutions Ready: Daylight harvesting sensor with optional NEMA Cloud-based Smart Control Solutions. Smart City Solutions Ready!
8. 5 Years Warranty: Engineered and manufactured to the highest reliability level. Covered by solid and comprehensive warranty throughout the duration.
