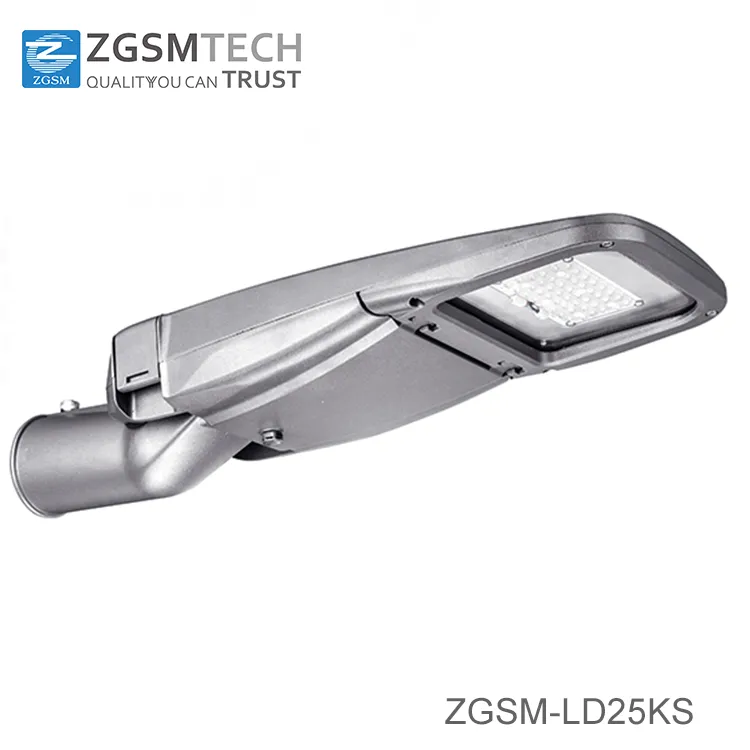

2021 New Design Fully Die Casting LED Street Light 25W with TUV Test
25W Full die-cast aluminum housing street lights with glass coverAdvantages:1. Lumileds 3030 Chips.2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.3. Tempered Glass lens.4. Luminaire efficacy up to 125lm/w.5. Competitive price.6. 7 years warranty.7. IP66 and IK08.8......
Send Inquiry
Product Description
25W Full die-cast aluminum housing street lights with glass cover
Advantages:
1. Lumileds 3030 Chips.
2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 125lm/w.
5. Competitive price.
6. 7 years warranty.
7. IP66 and IK08.
8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.

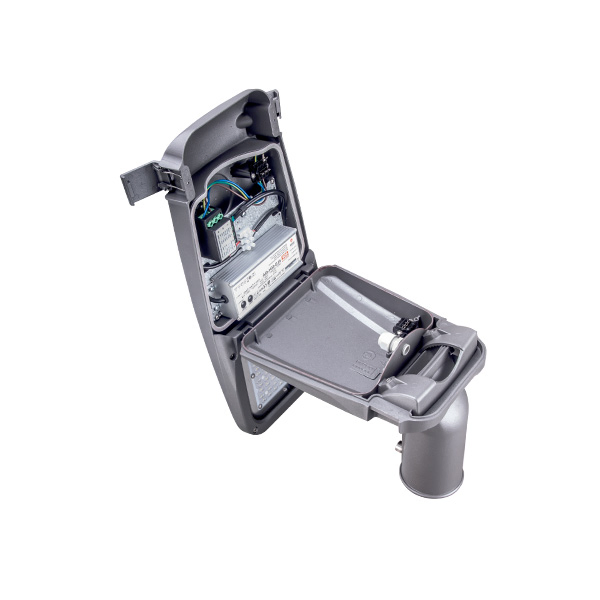

14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
Multiple Light Distribution Options
Street light should fit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings.
Considering this, ZGSM provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
ZGSM follows the North American IESNA standard in providing the optional lens width ,TypeI, Type II and Type III.
Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road.
ZGSM selects the most suitable lens for its customers according to the detailed parameters project by project.
Anna Dai
International Sales & Markting.
Tel: +86 0571 63968588
Mob: +86 13706715102
Hangzhou ZGSM Technology co.,Ltd | 1188 Jinxi Rd.(S) | Lin'an, Hangzhou, Zhejiang 311301 | China
zgdigital.en.made-in-china.com
Advantages:
1. Lumileds 3030 Chips.
2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 125lm/w.
5. Competitive price.
6. 7 years warranty.
7. IP66 and IK08.
8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.
14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
| Specifications | |
| Model | ZGSM-LD25KS |
| LED Brand | LUMILEDS® LUXEON 3030 |
| Driver Brand | Non-dimmable: MeanWell HLG Driver | Dimmable: Inventronics Driver |
| Norminal Wattage | 25W |
| Input Voltage | 100-240V /277V AC 50 /60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >125 lm /w |
| Lamp Rated Lumen output | 3125 lm |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000K (Nature White), 5000K (Pure White), 5700K (Cool White) |
| Photometric Type | 1M,2M,3M |
| Operating Temperature | 40 ºC to +50 ºC |
| Total Harmonic Distortion | < 20% |
| Lumen Maintenance | > 75,000 hours -L70, @25 ºC (77 ºF) |
| Materials | Die-cast aluminum;Tempered Glass |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Optional Function | 0-5V, 0-10V, PWM, Timer |
| Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Weight | 8.1 kg /17.6 lbs |
| Packing Dimension | 785 X415 X205 mm /31.0 X16.3 X8.1 inches |
| Packing Weight | 10.1 kg /22.3 lbs |

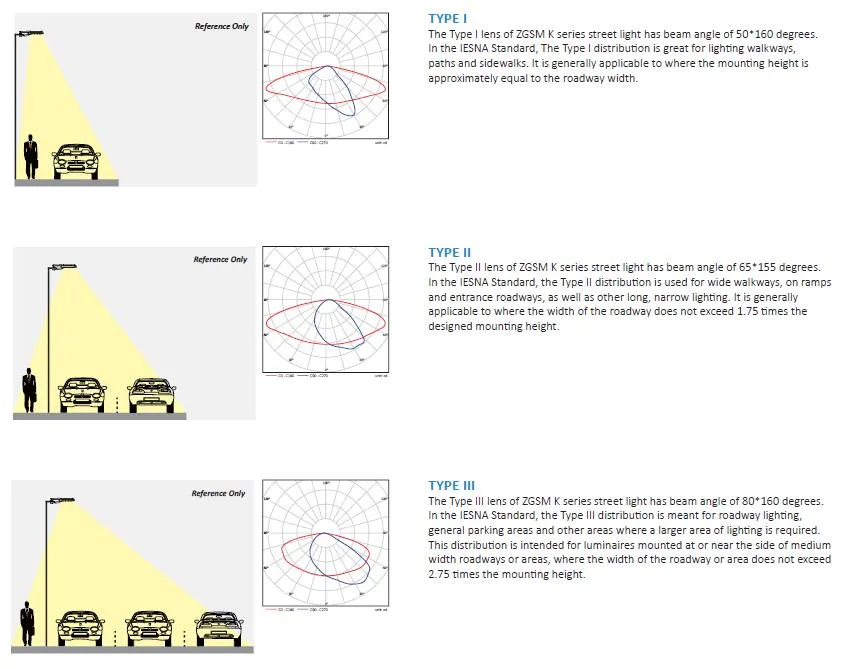

Multiple Light Distribution Options
Street light should fit with a wide range of applications, such as highway, express way, roadway, avenue, walking path or parking lot lightings.
Considering this, ZGSM provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
ZGSM follows the North American IESNA standard in providing the optional lens width ,TypeI, Type II and Type III.
Type I is suitable for walking path with 1 lane, Type II is for 2 lanes and Type III is for even more wider road.
ZGSM selects the most suitable lens for its customers according to the detailed parameters project by project.
