150W Outdoor IP65 Bridgelux COB Solar LED Street Light
Product DescriptionNew Style of LED Street Light 30w with IP66LED Street light, led street lamp,led street, led streetlighting,COB led street light,out led street light,led lighting,Solar Led Street LampLED Model:DX-ST660LED Name:LED Street LightIntroductionDingxin LED street light 660 series DX-ST ......
Send Inquiry
Product Description
Product Description
LED Street light, led street lamp,led street, led streetlighting,COB led street light,out led street light,led lighting,Solar Led Street Lamp
LED Model:DX-ST660
LED Name:LED Street Light
Introduction

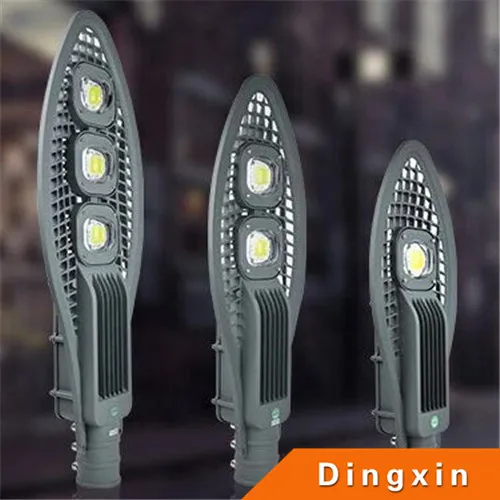

Dingxin LED street light 660 series DX-ST 660 features its outstanding die-casting aluminium alloy technique and integrated streamline heatsink system design. Its surface is treated with anti-statistic spraying. Besides, its light distribution is suitable for roadway lighting by using the secondary optical lens of high light transmittance.
The direction of lamp can be adjustable in the different installation situation by rotating the bracket.
130 LM / W Bridglux LED are used to equip the lamp. Besides, reliable Meanwell LED driver is used for the lamp. They makes the lamp working stablely.
Benefits
1. Save electricity charge to up to 75%, comparing to traditional high-pressure sodium lamp.
2. Save labor cost. No need to replace failed high-pressure sodium lamp very often.
3. No light pollution to the surroundings.
4. No poisonous materials like mercury to health
Applications
Dingxin Lighting Street light DX-ST660 can be used in City road, Residential district, Industry garden, Pavement, Square, Garden, School, Villa and so on
Why Dingxin Lighting for LED Street Light?
1. Rich experiences: 5years experience for LED lighting research and development;
2. The best key electronic components: Meanwell Driver from Taiwan, Cree, and Bridglux LED chip are used;
2. Quality Control: ISO 9001 quality control system and IBM quality control flow are carried out
3. After-sales services: Monthly and manual follow-up for the case with 3-5 year limited warranty;
4. Better solutions to projects: Customized solutions to your LED street light projects.

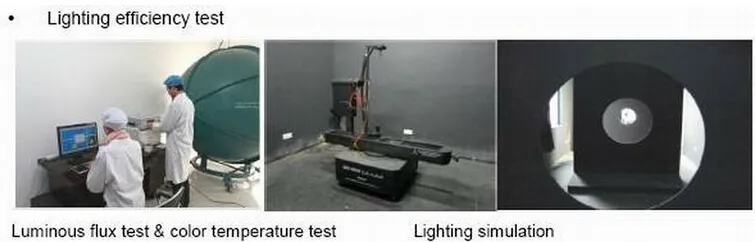

5. First-class production hardware:dust-proof workshop, automatic assembly line, integrating sphere
6. Lots of successful case with Dingxin in Australia, Saudi Arabia, Russia, Malaysia, Thailand, Kenya, etc.
Many thanks !
LED Street light, led street lamp,led street, led streetlighting,COB led street light,out led street light,led lighting,Solar Led Street Lamp
| Item Number | LM-ST660-W60 | LM-ST660-W80 | LM-ST660-W100 | LM-ST660-W120 | LM-ST660-W150 | |
| Input Voltage(V) | AC 85-265 | |||||
| LED Consumption(W) | 60 | 80 | 100 | 120 | 150 | |
| Light Efficiency | 90lm/W | |||||
| Color Rendering Index | Ra>70 | |||||
| Working Life(hrs) | 50,000 | |||||
| Driving power factor | >0.9 | |||||
| View angle | 10° / 30° / 60° | |||||
| Luminous decay | <3%, after 1,000 hrs | |||||
| Light Body Material | Aluminum + Tempered glass | |||||
| Size(mm) | 660*274*161 | 660*274*161 | 660*274*161 | 660*274*161 | 660*274*161 | |
| Input frequency(Hz) | 50~60 | |||||
| IP rating | IP65 | |||||
| Lumen(lm) | 5780 | 7650 | 9350 | 11475 | 14025 | |
| Colour | warm white,white | |||||
| Working temperature(°C) | -20~60 | |||||
| Storage temperature(°C) | -20~60 | |||||
| Package | 1 piece per carton | |||||
| Color Temperature(K) | ||||||
| warm white:2700-3500 | ||||||
| natrual white:4000-4500 | ||||||
| white:6000-7000 | ||||||
