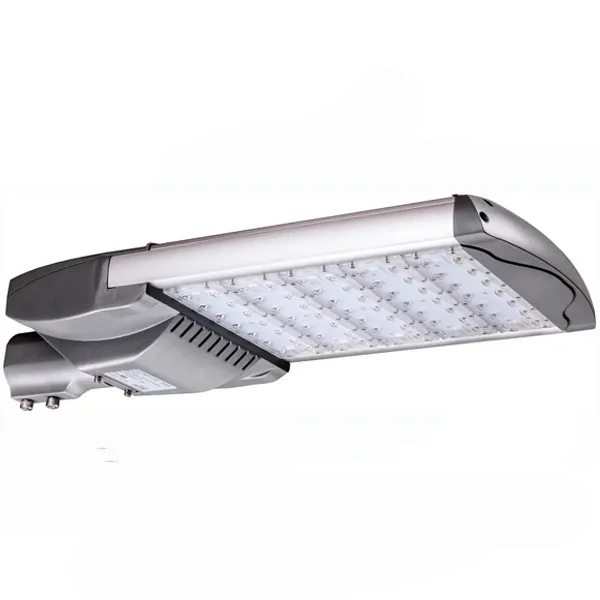

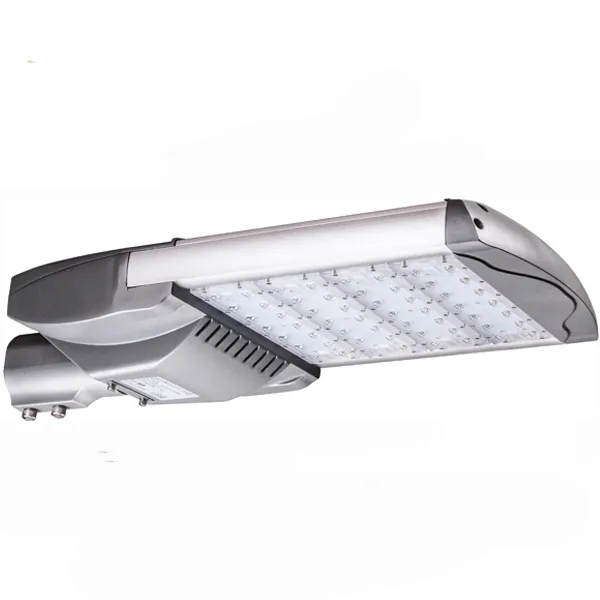

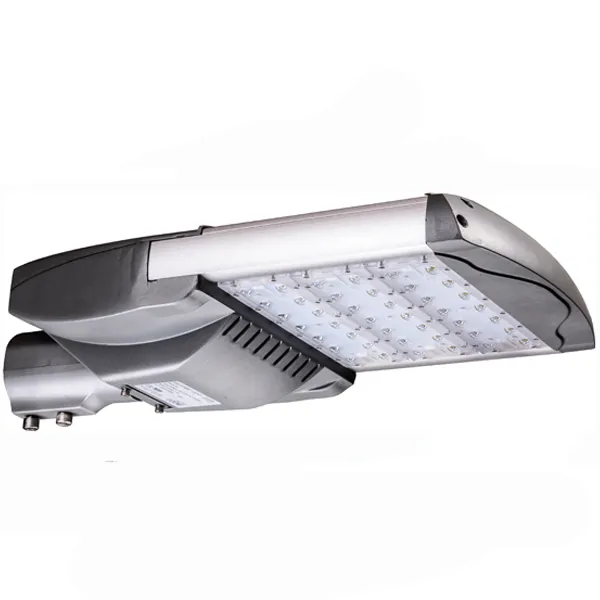

150W LED Street Light with High Lumen Efficiency
LED street light with UL, ENEC and CE 40W-200WModelST12-40WA1ST12-80WA2ST12-120WA3ST12-160WA4ST12-200WA5Power40W80W120W160W200WLED typeSMD3030Chips connection1*(8S8P)2*(8S8P)3*(8S8P)4*(8S8P)5*(8S8P)Input Volt100-240V/277V AC 50/60HzDimmable type0-10V,PWM, Timer, DALIDriver typeMW DriverMax current@ ......
Send Inquiry
Product Description
LED street light with UL, ENEC and CE 40W-200W
| Model | ST12-40WA1 | ST12-80WA2 | ST12-120WA3 | ST12-160WA4 | ST12-200WA5 |
| Power | 40W | 80W | 120W | 160W | 200W |
| LED type | SMD3030 | ||||
| Chips connection | 1*(8S8P) | 2*(8S8P) | 3*(8S8P) | 4*(8S8P) | 5*(8S8P) |
| Input Volt | 100-240V/277V AC 50/60Hz | ||||
| Dimmable type | 0-10V,PWM, Timer, DALI | ||||
| Driver type | MW Driver | ||||
| Max current@ 120V | 0.41A | 0.82A | 1.23A | 1.65A | 2.06A |
| Max current @208V | 0.24A | 0.47A | 0.71A | 0.95A | 1.19A |
| Max current @240V | 0.21A | 0.41A | 0.62A | 0.82A | 1.03A |
| Max current@277V | 0.18A | 0.36A | 0.53A | 0.71A | 0.89A |
| Work temperature | -40 ºC to +50 ºC | ||||
| Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <20% | <20% | <20% | <20% | <20% |
| Lumen efficency | >130LM/W | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
| Color rendering | >70 | >70 | >70 | >70 | >70 |

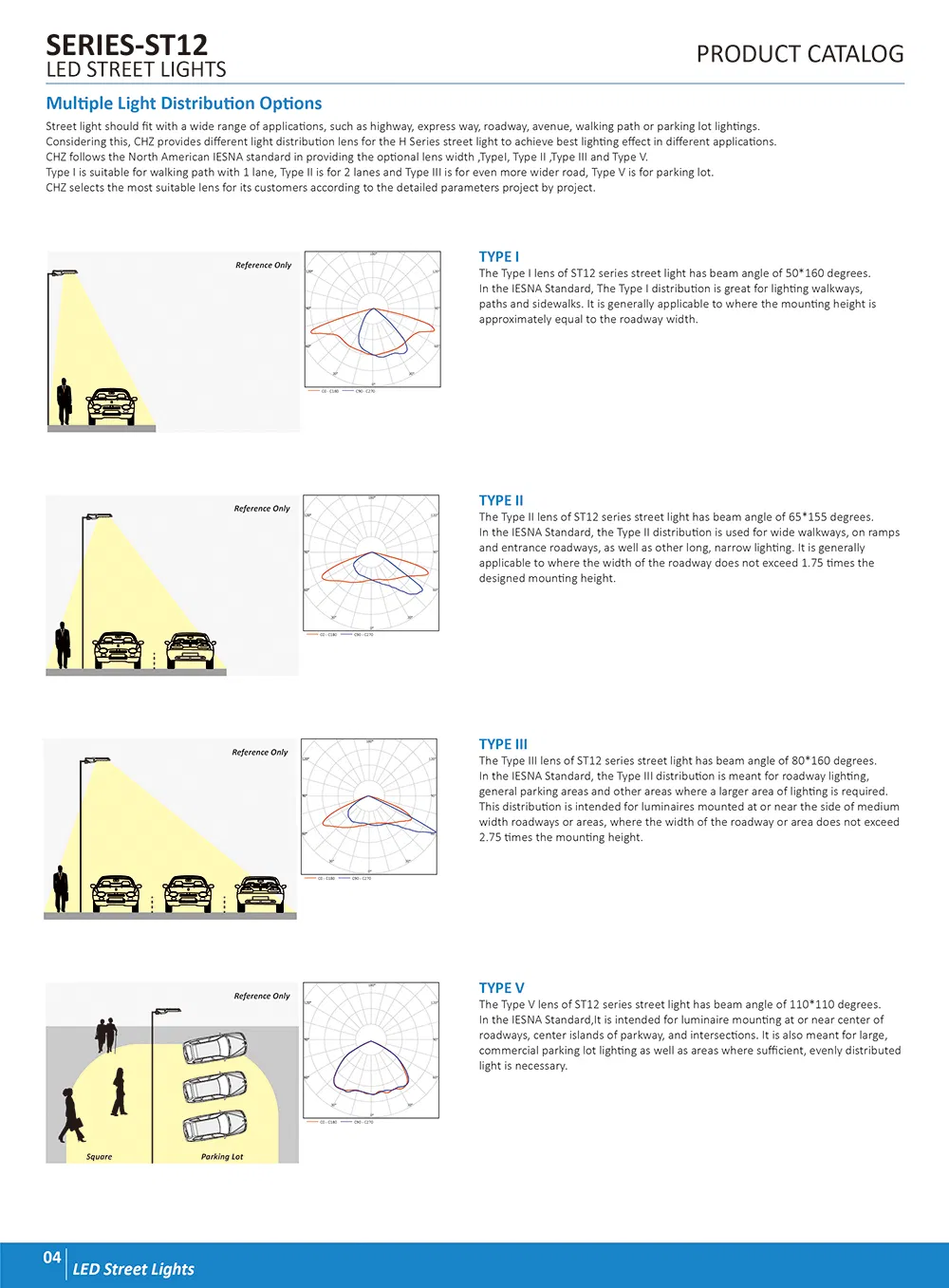

| Beam angle | TYPE I (150°x65°)/TYPE II (140°x80°)/ TYPE III (145°x100°)/ TYPE V (105°x100°) | ||||
| Color temperature | 3000-6500K | ||||
| Protection degree | IP66, IK10 | ||||
| Light material | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC | ||||
| Installation way | Horizontal or vertical installation, 0-10-15 degrees adjustable angle | ||||
| Optional accessory | Light head Ø 60 mm and 40/42mm apaptor for option | ||||
| Shell color | Sliver-gray (RAL9022) or black (RAL9005) | ||||
| Lumen Maitenance | >60,000 hours at 25ºC/ 5 years warranty | ||||
| Certification | TUV,ENEC,ROHS,ISO9001,ISO14001,LM80 | ||||

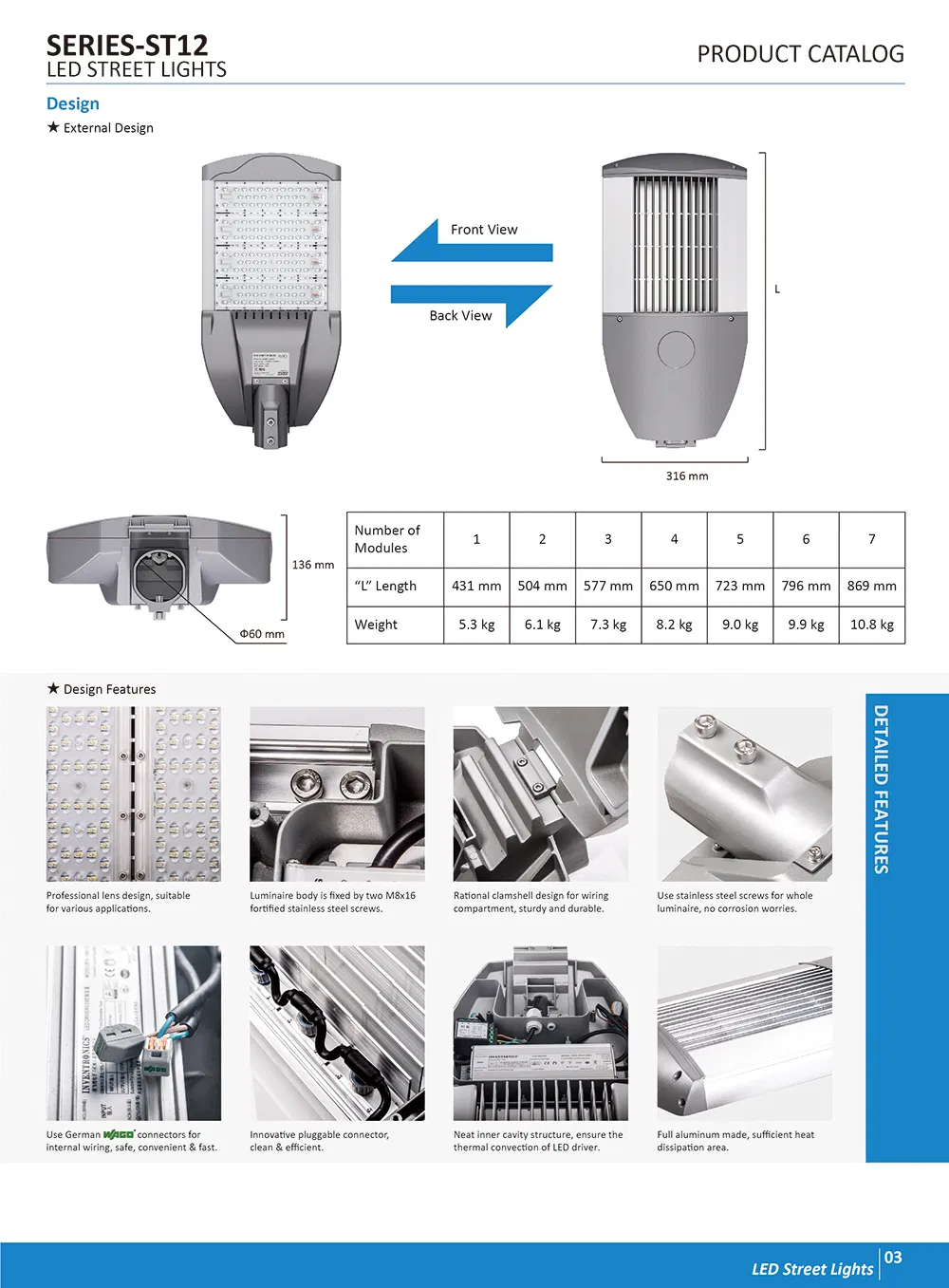

Products features
1) Overall aluminum die casting, heat sink fins, good heat dissipation;
2) Use UL standard lock, the overall structure is compact, sophisticated design work;
3) Metal connection portion, all stainless steel, corrosion-resistant, durable;
4) Professional lens design, four different angles for different lighting requirements of the road;
5) Lamp angle adjustable from 0-90 degree, either side-mounted, top-loading may be freely converted;
6) Using high quality led chip and constant current driver, stable overall performance, long life of 60,000 hours above.

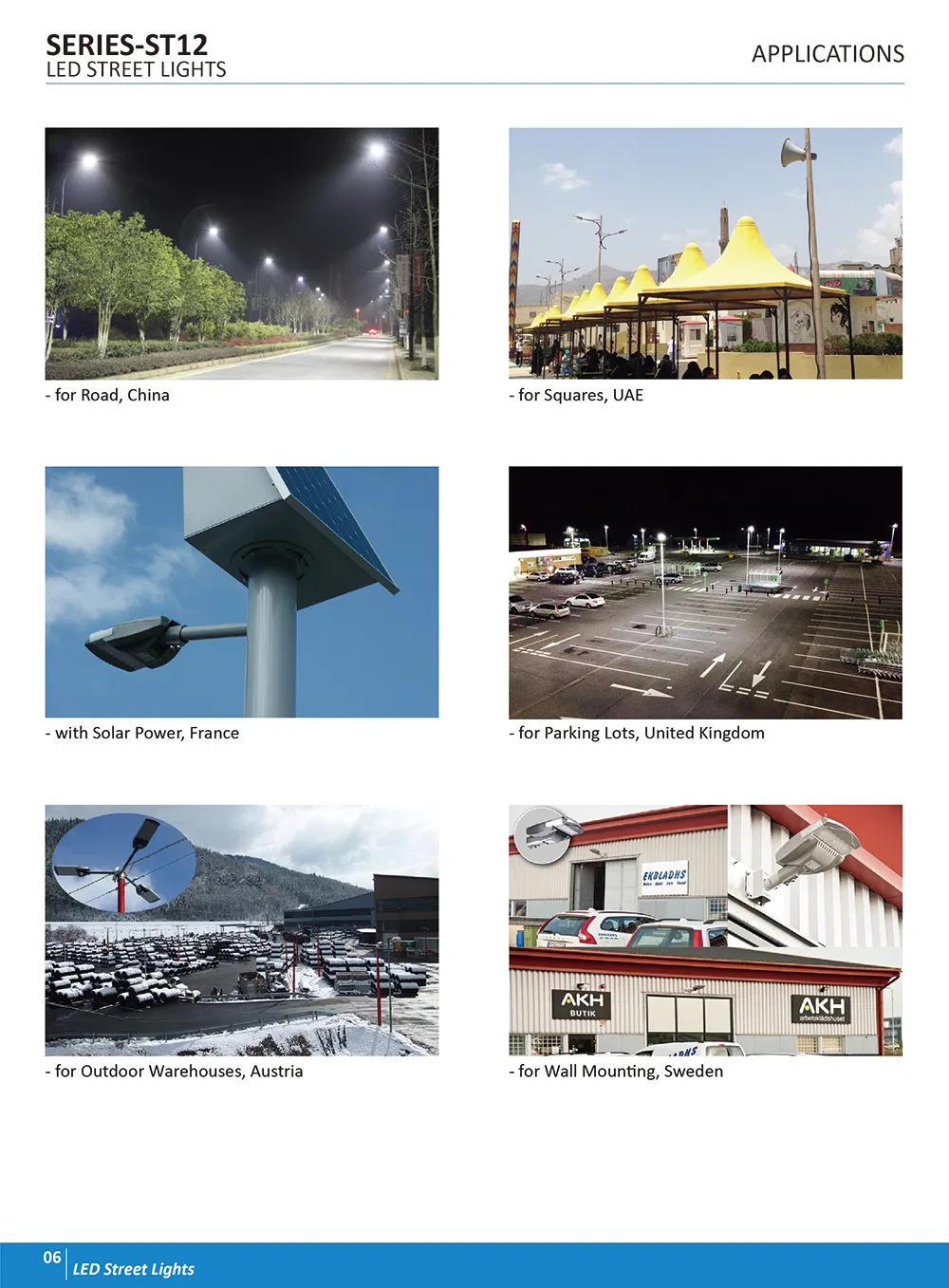

Applications of led street light
Mainly used for street light, including high-speed way and branch way, industry zone and etc.
