150W Kl Series Efficient LED Street Light
150W KL Series Efficient LED Street LightZGSM K series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the n......
Send Inquiry
Product Description

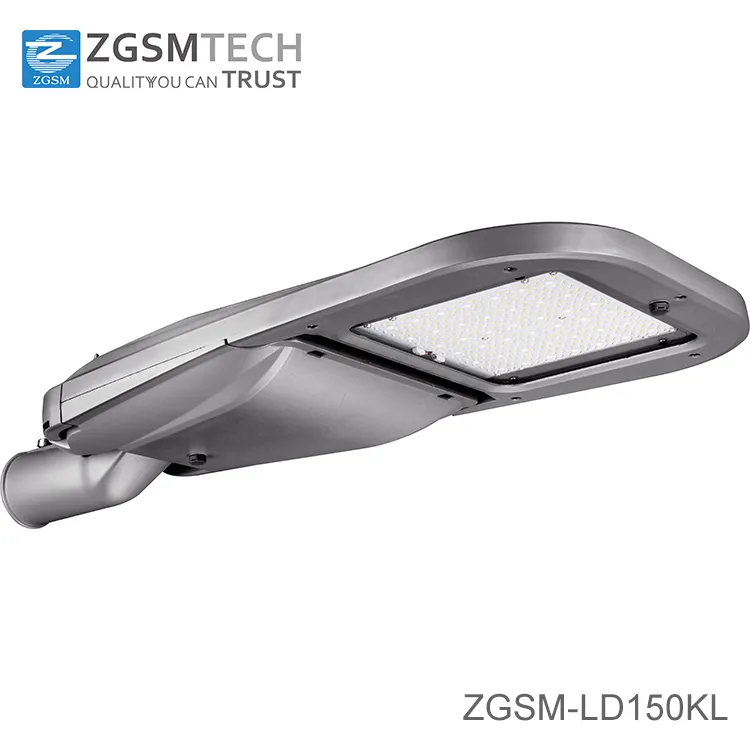

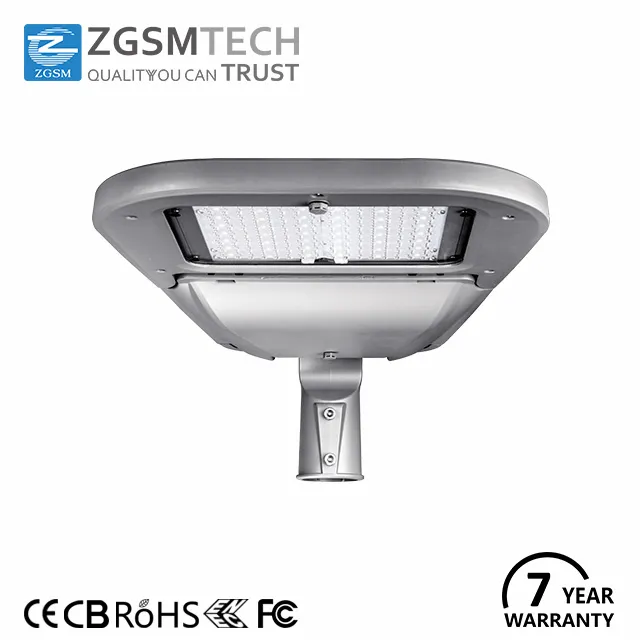

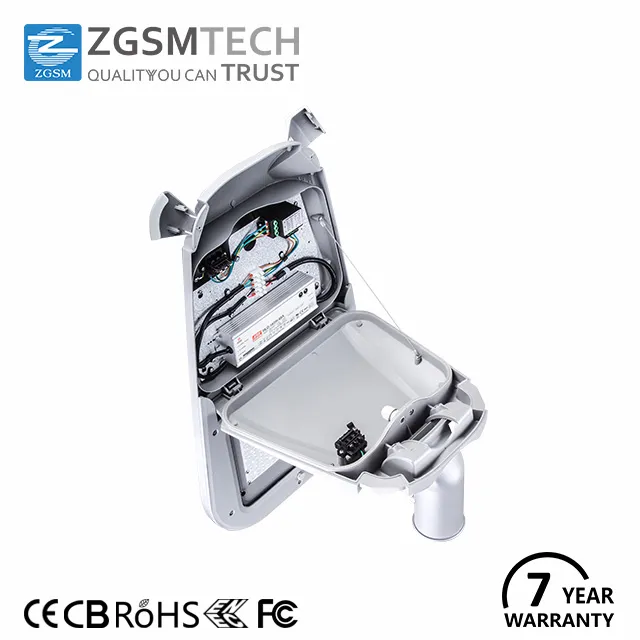

150W KL Series Efficient LED Street Light
ZGSM K series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Features
1. LED's maintain flux is up to 130 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 100-240V, 277V, 347V, 480V AC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care
Specifications
Company Overview
Our Services
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality product
5.We can supply C/O (Certificate of Origin), saving approx 20% import duty.
IF YOU HAVE ANY QUESTION,PLS DO NOT HESITATE TO CONTACT WITH ME:
Kevin-Huang
zgdigital.en.made-in-china.com
ZGSM K series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Features
1. LED's maintain flux is up to 130 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 100-240V, 277V, 347V, 480V AC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care
Specifications
| Specifications | |
| Model | ZGSM-LD150KL |
| LED Brand | LUXEON® TX |
| Driver Brand | Meanwell HLG series (AC Only) |
| Norminal Wattage | 150W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240V, 277V, 347V, 480V AC; DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130lm/w |
| Lamp Rated Lumen output | 19500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000 4000 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC (AC Only) |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 861 x447x153 mm |
| Fixture Weight | 12.0 kg |
| Packing Dimension | 915x495 x225 mm |
| Packing Weight | 14.5 kg |

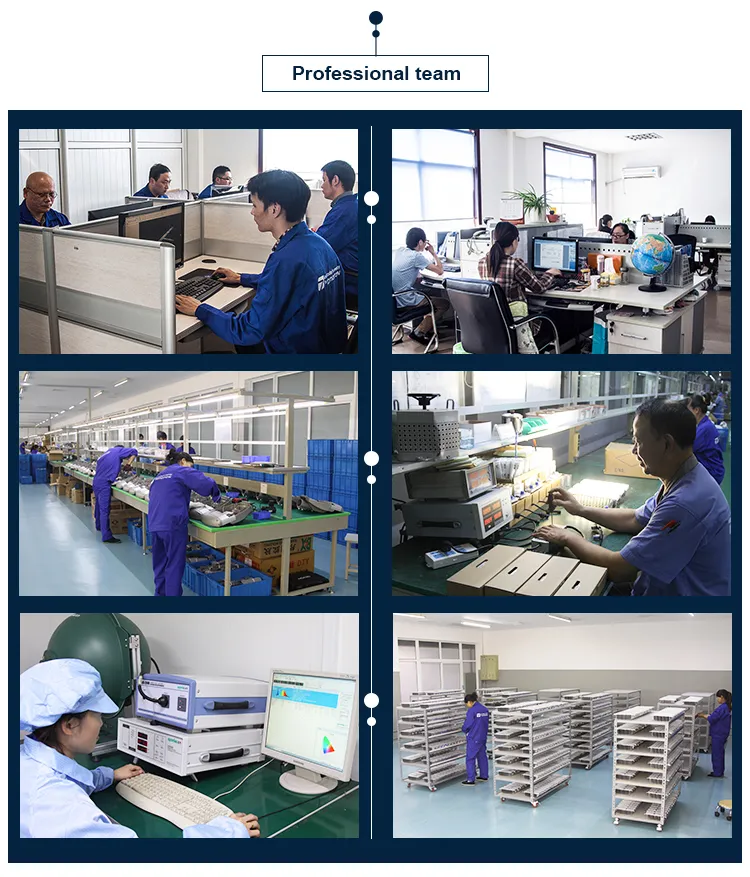

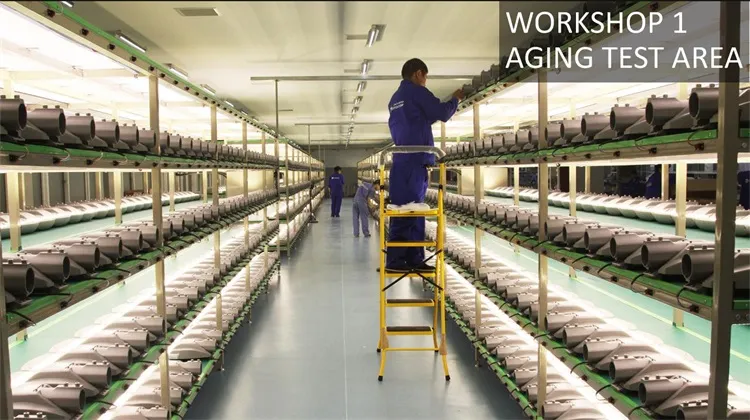

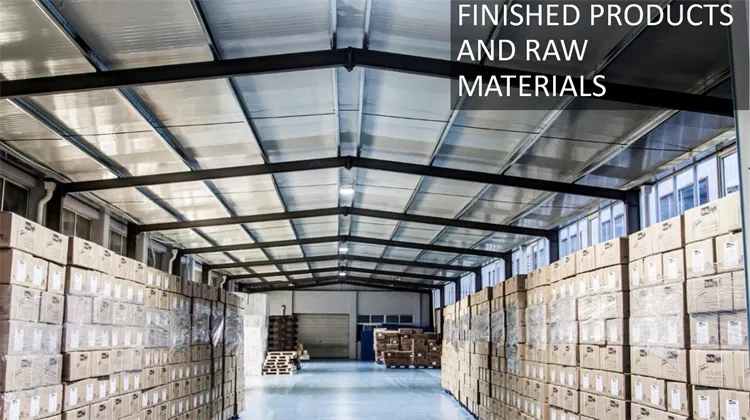

Company Overview
Our Services
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality product
5.We can supply C/O (Certificate of Origin), saving approx 20% import duty.
IF YOU HAVE ANY QUESTION,PLS DO NOT HESITATE TO CONTACT WITH ME:
Kevin-Huang
zgdigital.en.made-in-china.com
