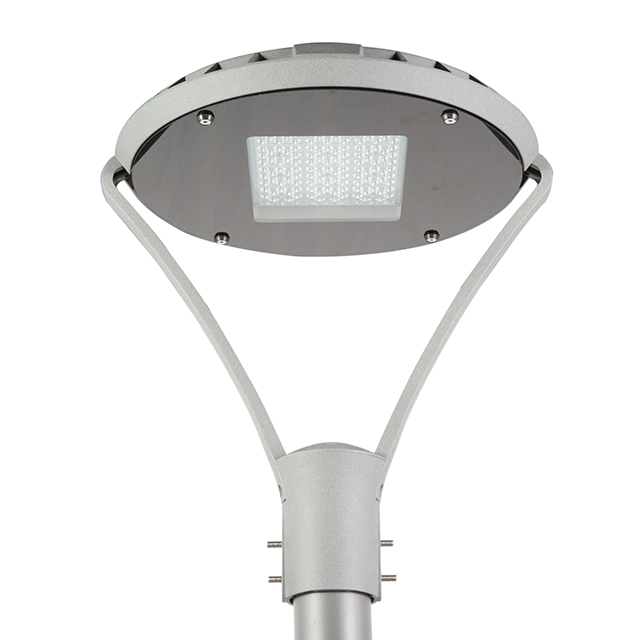

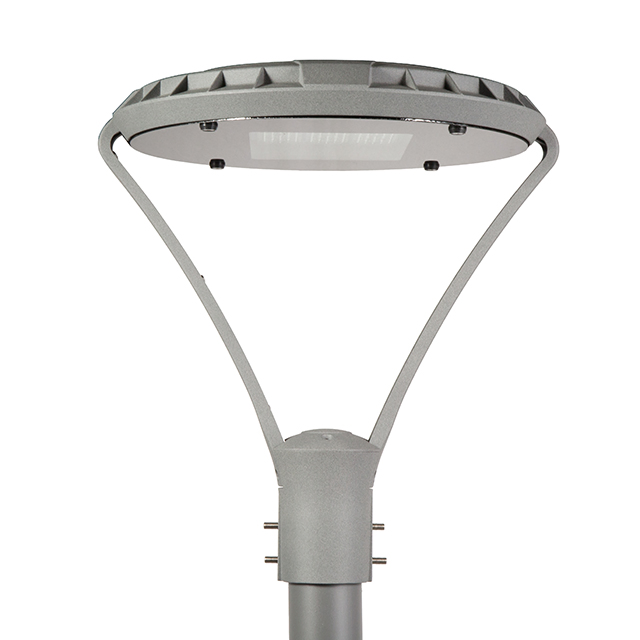

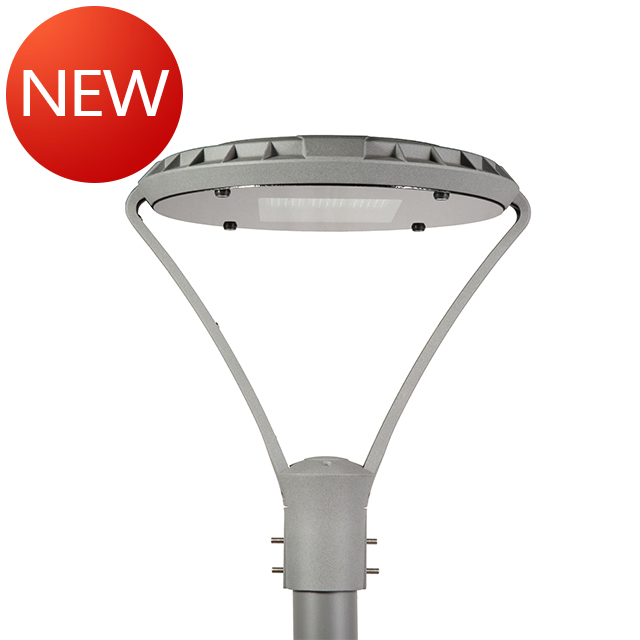

High Quality Competitive Price Garden Light Suitable for Market
Parameters:ModelCHZ-GD29-30WCHZ-GD29-60WCHZ-GD29-90WPower30W60W90WLed type72pcs72pcs72pcsOverall lighting effect125~140LM/W125~140LM/W125~140LM/WInput voltage100-240V or 100-277V100-240V or 100-277V100-240V or 100-277Vcontrol methodNon-dimming; 0-10V/PMW/DALI dimming, optionalPower factor>0.95>......
Send Inquiry
Product Description
| Parameters: | |||
| Model | CHZ-GD29-30W | CHZ-GD29-60W | CHZ-GD29-90W |
| Power | 30W | 60W | 90W |
| Led type | 72pcs | 72pcs | 72pcs |
| Overall lighting effect | 125~140LM/W | 125~140LM/W | 125~140LM/W |
| Input voltage | 100-240V or 100-277V | 100-240V or 100-277V | 100-240V or 100-277V |
| control method | Non-dimming; 0-10V/PMW/DALI dimming, optional | ||
| Power factor | >0.95 | >0.95 | >0.95 |
| Color rendering index | >75 | >75 | >75 |
| CCT | 3000~6500K | 3000~6500K | 3000~6500K |

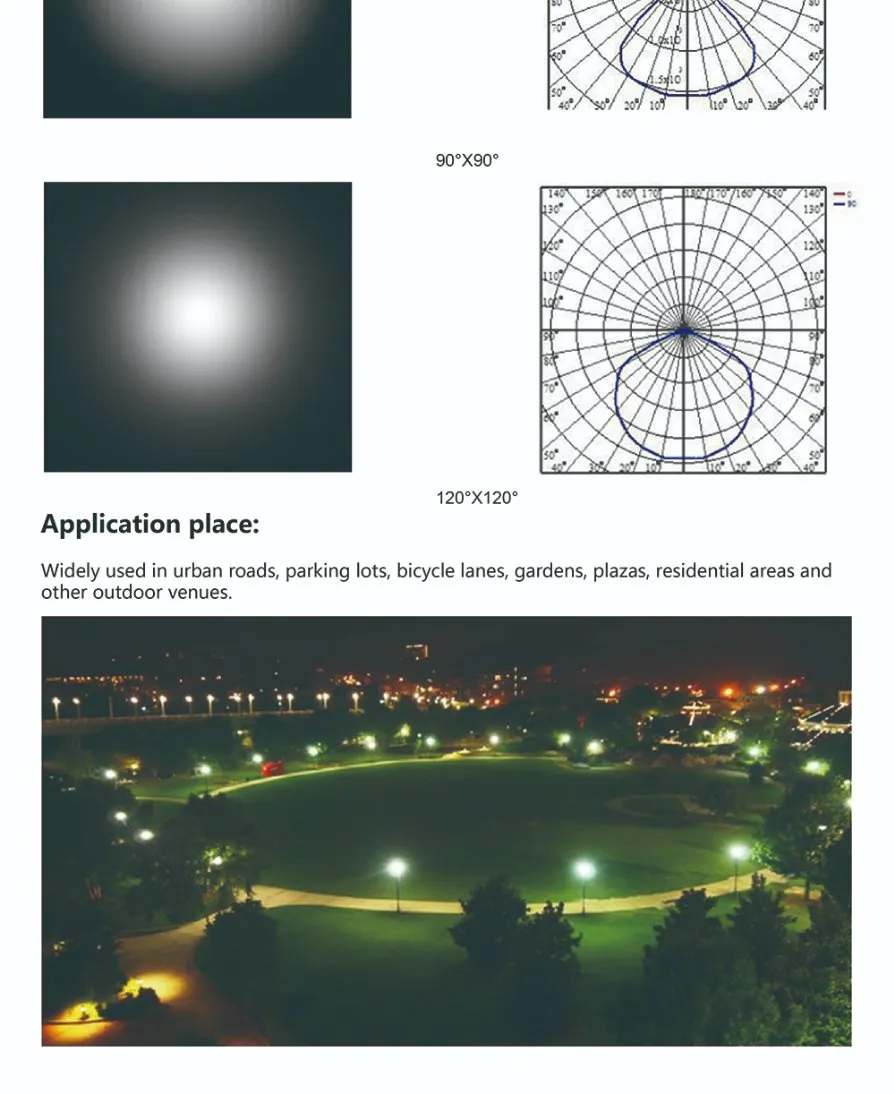

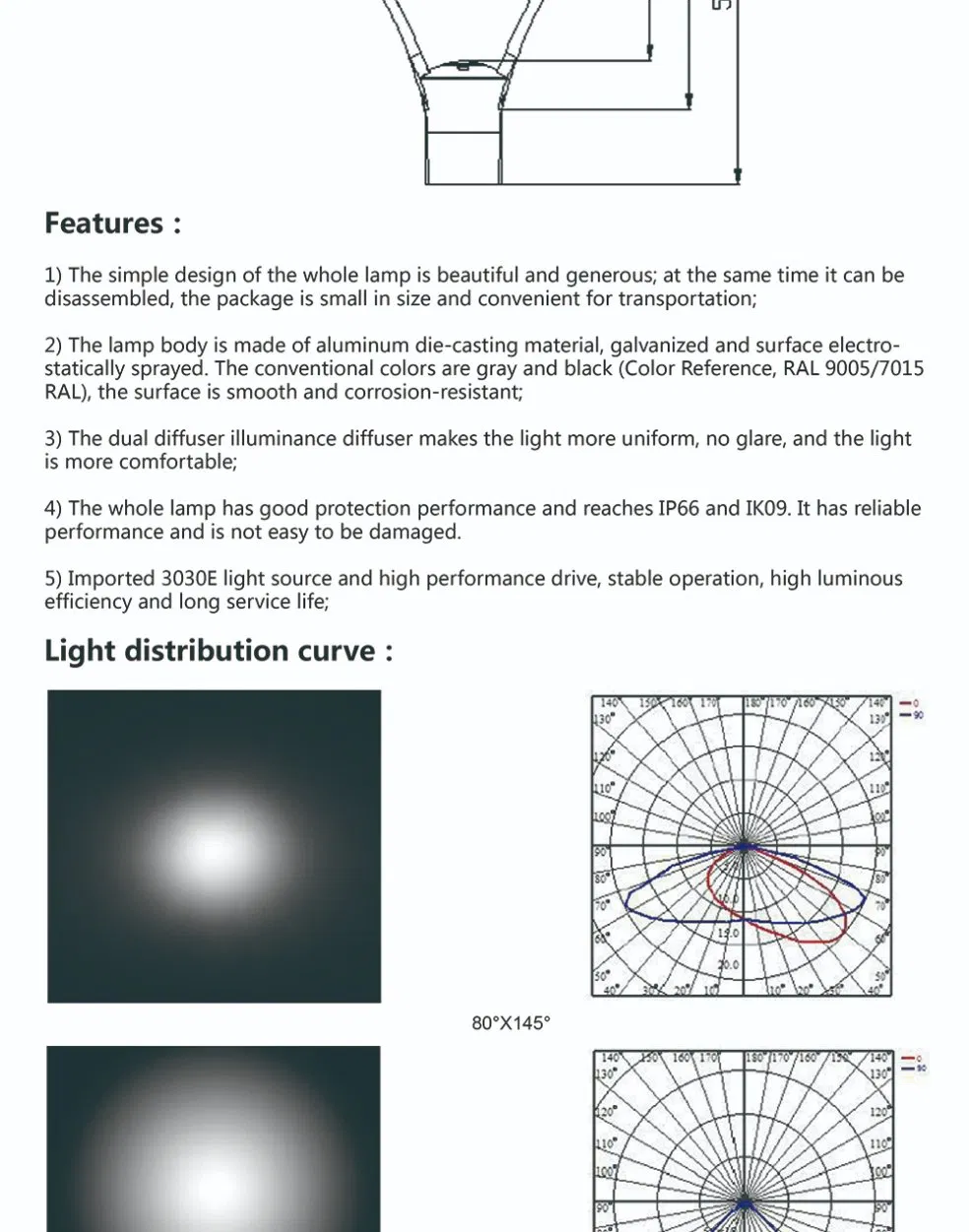

| Beam angle | 80°x145° /90°x90° /120°x120°,optional | ||
| Ambient temperature | -40~55ºC | -40~55ºC | -40~55ºC |
| Lamp body material | AL Body, PC lens and GLASS cover | ||
| Installation diameter | Ф60mm | Ф60mm | Ф60mm |

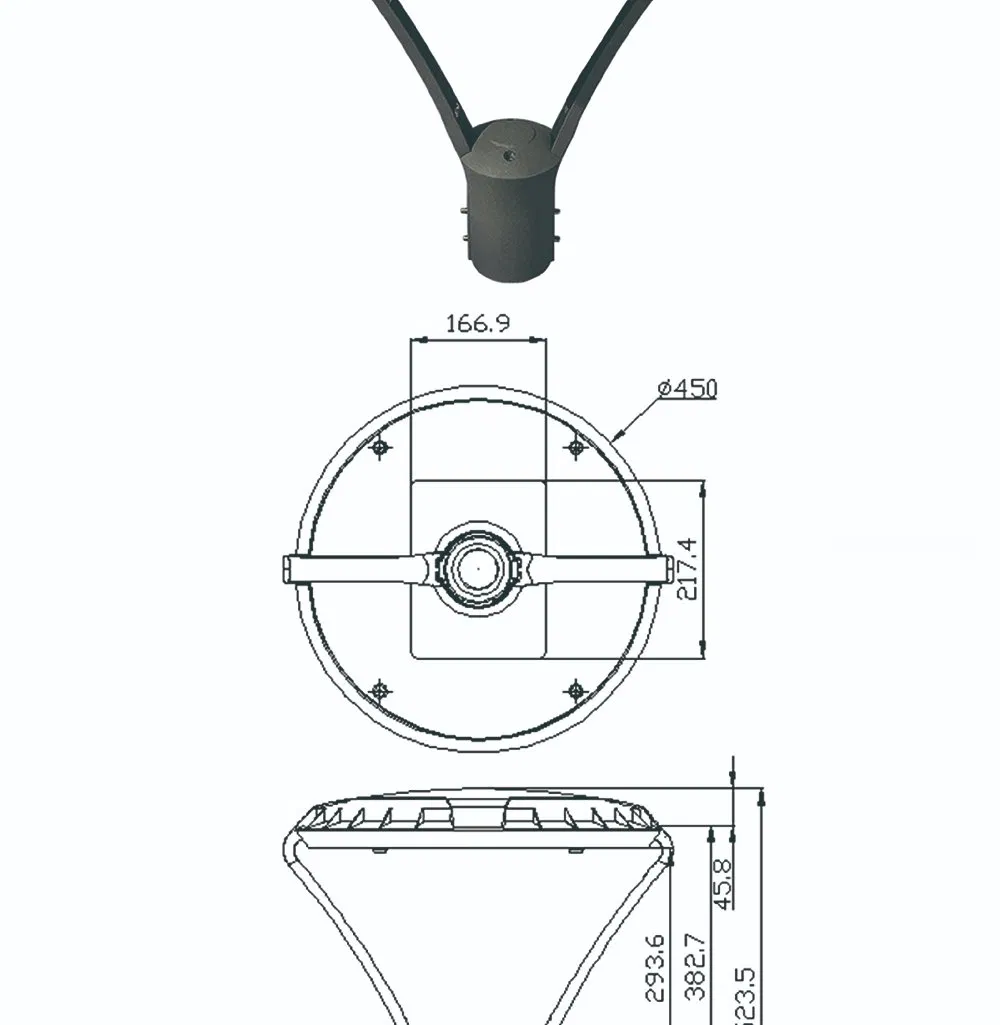

| Lamp size | Ф480xH525mm | Ф480xH525mm | Ф480xH525mm |
| Protection level | IP66/IK09 | IP66/IK09 | IP66/IK09 |
| Life/warranty period | 50000hrs/5 years | 50000hrs/5 years | 50000hrs/5 years |
| Model | CHZ-GD29-100W | CHZ-GD29-120W | CHZ-GD29-150W |
| Power | 100W | 120W | 150W |
| Led type | 144pcs | 144pcs | 144pcs |
| Overall lighting effect | 125~140LM/W | 125~140LM/W | 125~140LM/W |
| Input voltage | 100-240V or 100-277V | 100-240V or 100-277V | 100-240V or 100-277V |
| control method | Non-dimming; 0-10V/PMW/DALI dimming, optional | ||
| Power factor | >0.95 | >0.95 | >0.95 |
| Color rendering index | >75 | >75 | >75 |
| CCT | 3000~6500K | 3000~6500K | 3000~6500K |
| Beam angle | 80°x145° /90°x90° /120°x120°,optional | ||
| Ambient temperature | -40~55ºC | -40~55ºC | -40~55ºC |
| Lamp body material | AL Body, PC lens and GLASS cover | ||
| Installation diameter | Ф60mm | Ф60mm | Ф60mm |
| Lamp size | Ф480xH525mm | Ф480xH525mm | Ф480xH525mm |
| Protection level | IP66/IK09 | IP66/IK09 | IP66/IK09 |
| Life/warranty period | 50000hrs/5 years | 50000hrs/5 years | 50000hrs/5 years |
