50W New Integrated Solar Street Road Path Park Courtyard Garden Lamp Light High Technology

Product Description

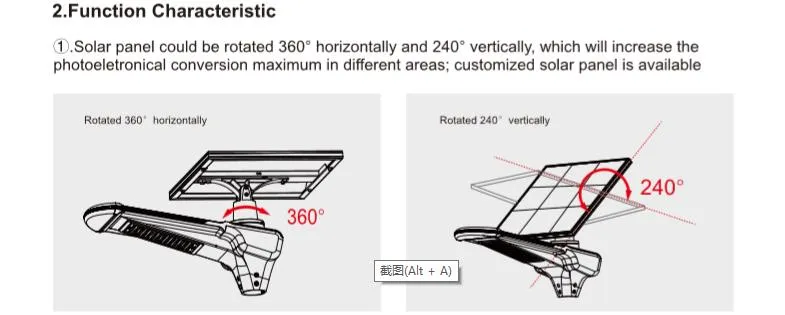

Photo above: Solar panel are adjustable according to sunlight

Photo above: Infrared sensor-20m area, keep 20-30seconds after left

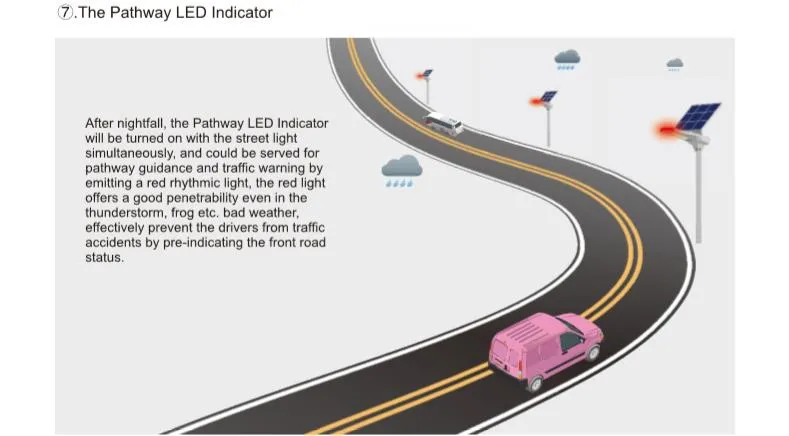

Photo above:Red LED lighting for road indication

Photo above: App(mobile phone) control lighting

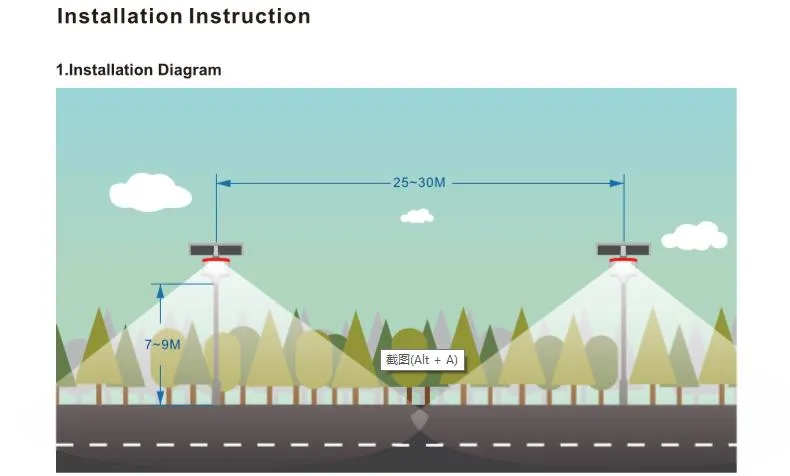

Above photo: Distance suggestion

50W Solar Street Light Technology Parameter

Item no.	JS-G02-50W
LED lamp	12V 50W
Solar panel	18V 80W, mono crystalline solar cells
Battery	12V 369WH, Lithium(or LiFePO4)
Light Effeciency	130LM/W±10LM
Lumens	5100-5500LM
CRI	RA>70
Color Temperature	3000K-6500K
IP Rate	IP65
Light Source	3535 LED/50 pieces
LED Lifespan	50000H
Conversion Efficiency	>=0.95
Working Temparature	-30ºC~+60ºC
Solar panel package	Product/package size:75567030mm
LED lamp package	Product/package size: 640260250mm
Whole product weight	N.W/G.W:20kg/22.5kg
Container Loading	Container:200sets/20',400sets/40'
Product main material	Aluminum alloy, tempered glass
Solar street light installation height(standard)	5-7m
Solar street light installation distance(standard)	40m for one-side road lighting,60m for both-side road lighting
LED Lighting time	12hrs*3-5 rainy days, each fully energy circle
Solar panel charging time	6hrs, battery energy from 0-100%
LED lighting control method- I	Sunlight sensor: sunlight control "off/on" automatically
LED lighting control method- II	Time sensor: set up start working and stopping time by user
LED lighting control method- III	Infrared sensors: object 20m lighting,20-30s after left area
LED lighting control method- IV	App control: mobile phone, Bluetooth control lighting
Road Indication Light	Yes
Warranty	3 years
Certification	CE ROHS IP65 IES ISO, all parts test report

Email me to get: Solar Street Light Function and Installation Specification Sheet

JS-G02 Series:
30W, 40W, 50W, 60W

Work Status:
Solar street light system default: sunlight control lighting on/off, infrared sensor.
there is brightness class III:
Infrared sensor 100% lighting brightness; 70% of lighting brigheness and 35% lighting brightness,
in normal lighting time: first 4-8 hours is 70% brightness, and the left time is 35% brightess;
when infrared sensor works, the brightness will be 100% brightness.

Control Function:
1. Sunlight control lighting on/off automatically, Solar street light system default;
2. Time control lighting: set up in App of mobile phone, when "time control lighting" work, "sunlight control lighting" out of work;
3. Infrared sensor control:Solar street light system default, will 100% fully lighting when it works in solar street lighting time;

Control Specification:
1. Sunlight control lighting: sunlight intensity enough---lighting off; sunlight intensity less---lighting on, solar street light have the sunlight intensity parameter to control;
2. Time control lighting: The user can control the lighting time, and lighing "on and off" time, for example: lighting time from 8:00p.m-8:00a.m, lighting time 12 hours, start lighting time 8:00p.m;
3. Infrared sensor control: when the moving object is in the solar street light sensor area(20m), lighting will be stronger, after the object left, the lighting will be continue for 20-30 seconds;
4. App control: App in mobile phone can connect with solar street light, can set up all lighting parameters in mobile phone, such as time control lighting.

Work Principle:
1. Solar panel absorb sunlight, and transform sunlight into DC electricity;
2. DC electricity to be stored in battery;
3. Battery provide energy for LED lighting.

Product Name: Solar LED Street Light
Each item with inner quality tracking no.
To keep our quality and after-sales 100% in 3 years warranty period !

Solar LED street Light Series:
LED lighting power: Cree chips, 5W, 8W,10W, 12W,15W,18W,20W,25W,30W,40W,50W,60W,70W,80W,90W,100W
Solar panel: mono crystalline/polycrystalline/sunpower, 5W-220W
Battery:Lithium/LiFePO4/Lead-acid, 10Ah-1000Ah

Materials
Solar Cell:
BOSCH(Germany), NSP, MOTECH, SUNRISE, Q-CELLS,
Frame:
XingFa Aluminum Profiles(Holding:HK00098)
EVA:
FIRSTEVA(Holding:CN603806)
Glass:
YUXING(Holding:CN300305)
LED chips:
Cree, USA Bridgelux 45mil
Battery:
Sumsung, Panasonnic

Why choose us?
1. We are a professional manufacture, focus on solar power products, with more than 500 employees, 20 R&D engineers do services for you, Welcome OEM and ODM.
2. Hardware equipment:
Our manufactory building covers an area of 10000 square meters, 10 production lines, 10 assembling lines, 25pcs injection, 15pcs mould, 12 SMT, 8pcs printing machines, etc...
3. Certificate:
our products have the certificates of CE, RoHs, SONCAP, SASO, FCC, IEC...
4. Convenient lacate:
Our factory is located in Longhua, Baoan, Shenzhen, Guangdong Province, China. Shenzhen borders Hong Kong. Only 10 minute from Shenzhen airport by car to our factory.
5. High quality and good performance
we provide high quality and performance solar power products. Just-solar attach great importance to control quality, our client include: Carrefour, Wal-Mart, Ring, freeplay, Binatone, Mahindra solar, etc....
6. Guarantee and lifespan
Any solar items have warranty period with the whole products and main parts, this information will be shown in "Product Instruction" together with products;
7. Favourable Payment term: We can quote you EXW,FOB,CRF and CIF price. The delivery port can be Shenzhen or Hongkong and any ports of China port. We accept T/T ,L/C, western union, paypal,etc.
For MOQ order: we support customer brand LOGO printed on gift box and products for free
8. Fast delivery time:
For sample order: we can delivery within 3 days
For trial smaller quantity order(packing with factory neutral box): we can make it delivery time 10-15days
For mass quantity order, up to MOQ(packing with customer`s brand LOGO): delivery time: 25-30days
